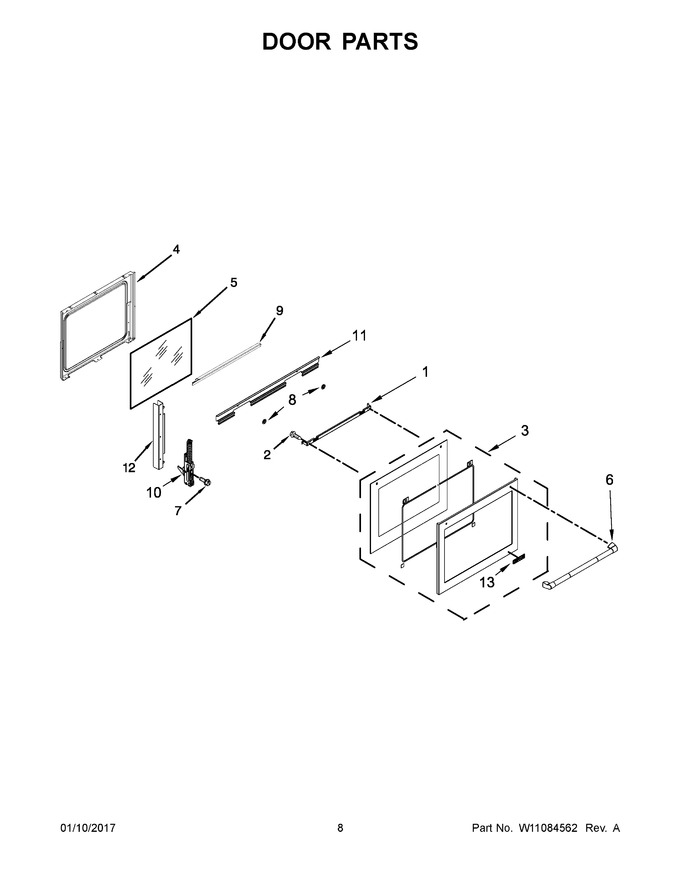

05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10541911 | Bracket, Glass Upper Handle |
|
$ 35.93 | |||||
| 2 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 3 | W10634269 | Assembly, Outer Door (stainless) |
|
$ 313.15 | |||||
| 4 | W10902192 | Liner, Door (Replaces: W10826568) |
|
$ 301.54 | |||||
| 5 | W11339500 | Glass, Inner (Replaces: W10813616) |
|
$ 154.05 | |||||
| 6 | W11234410 | Assembly, Door Handle (stainless) (Replaces: W10483386) |
|
$ 213.73 | |||||
| 7 | WP355214 | Screw (Replaces: W10327235) |
|
Immediately | $ 7.92 | ||||
| 8 | W11676355 | Washer, Door (Replaces: W10319024) |
|
$ 13.33 | |||||
| 9 | W11025120 | Stainless (Replaces: W10551024) |
|
$ 110.71 | |||||
| 10 | W11226493 | Hinge, Slow Close (Replaces: W10885516) |
|
$ 103.49 | |||||
| 11 | W10813140 | Rail, Horizontal Support |
|
Immediately | $ 159.49 | ||||
| 12 | W11744483 | Rail, Vertical Support (Replaces: W10813139) |
|
Immediately | $ 68.57 | ||||
| 13 | WPW10159578 | Badge (stainless) (Replaces: W10159578) |
|
Immediately | $ 79.69 |
