01 - Cover Sheet

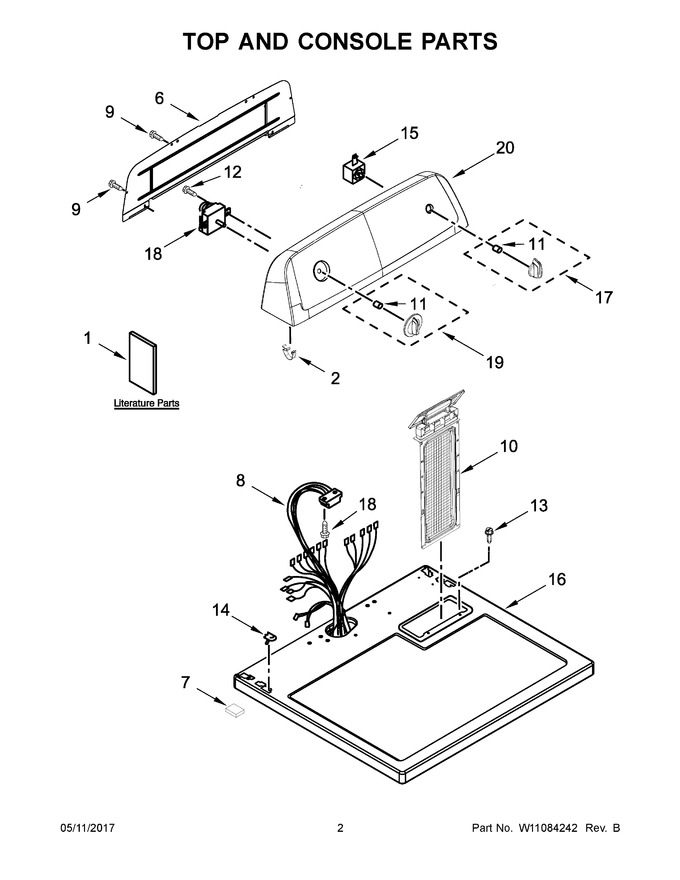

02 - Top And Console Parts
03 - Cabinet Parts
04 - Bulkhead Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10848818 | Installation Instructions |
|
- | |||||
| 2 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 3 | W11089352 | Assembly, Control Panel (Replaces: W11026909) |
|
- | |||||
| 4 | WPW10711289 | Assembly, Timer Knob (white) (Replaces: W10711289) |
|
Immediately | $ 7.50 | ||||
| 5 | W10857612 | Timer (Replaces: W10745655) |
|
Immediately | $ 224.74 | ||||
| 6 | WPW10416486 | Panel, Rear Console (Replaces: W10416486) |
|
$ 119.15 | |||||
| 7 | 3389682 | Spacer, Toe Panel |
|
$ 8.31 | |||||
| 8 | WPW10450286 | Harness, Wiring (Replaces: W10450286) |
|
$ 221.46 | |||||
| 9 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 10 | W11778253 | Screen, Lint (white) (Replaces: W10717210) |
|
Immediately | $ 49.17 | ||||
| 11 | WP8536939 | Clip, Spring (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 12 | WP90767 | Screw (Replaces: 3348629) |
|
Immediately | $ 7.43 | ||||
| 13 | W11693756 | Screw (Replaces: 688983) |
|
Immediately | $ 13.28 | ||||
| 14 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 15 | WPW10420741 | Switch, Push To Start (Replaces: W10420741) |
|
Immediately | $ 32.81 | ||||
| 16 | WP8563663 | Top (white) (Replaces: 8559800) |
|
Immediately | $ 314.33 | ||||
| 17 | WPW10453948 | Assembly, Control Knob (white) (Replaces: W10453948) |
|
$ 46.20 | |||||
| 18 | W10850756 | Screw (Replaces: W10773242) |
|
$ 7.38 | |||||
| 1A | W10096992 | Use & Care Guide |
|
- | |||||
| 1B | W10185989 | Wiring Diagram |
|
- |
