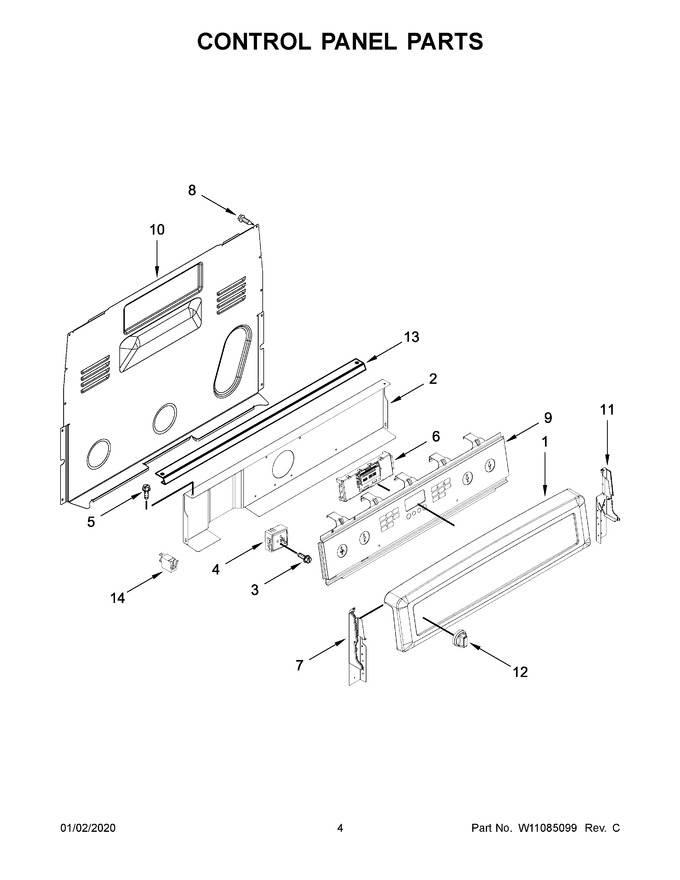

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10645846		Console (black)				$ 289.13
2	W10134247		Shield, Heat			Immediately	$ 322.94
3	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
4	W10857622		Switch, Infinite (left Front)   (Replaces: W10437092)			Immediately	$ 215.89
5	W11233072		Screw   (Replaces: W10362924)			Immediately	$ 13.25
6	WPW10340323		Control (mrc)   (Replaces: W10340323)			Immediately	$ 418.58
7	W11219664		Endcap (black (left))   (Replaces: W11130372)			Immediately	$ 138.45
8	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
9	W10884363		Overlay, Active (black)				$ 379.66
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W11219665		Endcap (black (right))   (Replaces: W11130379)			Immediately	$ 40.65
12	W11039089		Knob (black)   (Replaces: W10892256)			Immediately	$ 58.56
13	W10525121		Bracket, Console Mounting				$ 88.97
14	WP8523265		Hot Surface Indicator   (Replaces: W10432504)			Immediately	$ 91.76
11A	W11219370		Endcap (white (right))   (Replaces: W11130378)				$ 54.75
12A	W11039092		Knob (white)   (Replaces: W10892254)			Immediately	$ 58.39
1A	W10645847		Console (white)				$ 282.30
4A	W10911303		Switch, Infinite (right Rear And Left Rear)   (Replaces: W10578768)			Immediately	$ 103.74
4B	W10917724		Switch, Infinite (right Front)   (Replaces: W10437094)			Immediately	$ 116.42
7A	W11219365		Endcap (white (left))   (Replaces: W11130371)				$ 38.21
9A	W10887356		Overlay, Active (white)				$ 286.30
