View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

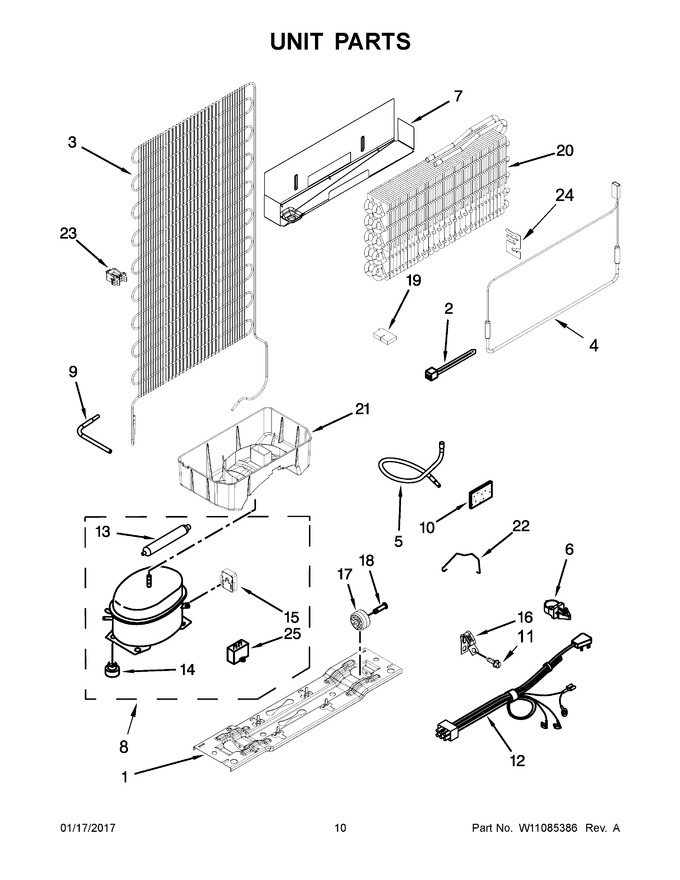

01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Shelf Parts
05 - Door Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10378704 | Plate, Compressor Support |
|
$ 60.34 | |||||
| 2 | WPW10339879 | Tie, Wire (Replaces: 2263990) |
|
$ 7.47 | |||||
| 3 | W10439364 | Condenser |
|
- | |||||
| 4 | W11193825 | Heater, Defrost (Replaces: W10331598) |
|
$ 122.91 | |||||
| 5 | W10679680 | Tube, Suction |
|
- | |||||
| 6 | 2219077 | Clip, Harness |
|
$ 57.82 | |||||
| 7 | W10345815 | Shield, Heat |
|
$ 24.44 | |||||
| 8 | W10233960 | Compressor (Replaces: W10575980) |
|
Immediately | $ 485.41 | ||||
| 9 | W11661102 | Tube, Process (Replaces: 2174739) |
|
$ 27.41 | |||||
| 10 | W11553819 | Insulation, Sound (Replaces: 2215468) |
|
Immediately | $ 13.29 | ||||
| 11 | WP489442 | Screw (Replaces: 489442) |
|
Immediately | $ 10.34 | ||||
| 12 | W10659093 | Assembly, Power Cord Wire |
|
$ 130.16 | |||||
| 13 | W10843121 | Drier (Replaces: W10669573) |
|
Immediately | $ 51.42 | ||||
| 14 | WPW10169124 | Grommet (Replaces: 10835903) |
|
$ 6.80 | |||||
| 15 | WPW10448874 | Device, Start (Replaces: W10448874) |
|
Immediately | $ 122.47 | ||||
| 16 | 549193 | Clamp, Power Cord |
|
$ 12.65 | |||||
| 17 | WPW10475495 | Roller (Replaces: W10475495) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Axle, Rivet (Replaces: 2179826) |
|
Immediately | $ 17.21 | ||||
| 19 | W10261299 | Wedge, Evaporator |
|
- | |||||
| 20 | W11122867 | Assembly, Evaporator (Replaces: W10502224) |
|
$ 320.22 | |||||
| 21 | W11035419 | Tray, Evaporator (Replaces: W10767486) |
|
$ 132.81 | |||||
| 22 | W11661170 | Strap, Bale (Replaces: W10174384) |
|
Immediately | $ 10.68 | ||||
| 23 | WP326020544 | Support, Condenser (Replaces: 326020544) |
|
$ 9.77 | |||||
| 24 | W10286974 | Bracket |
|
- | |||||
| 25 | WPW10662129 | Capacitor (Replaces: W10662129) |
|
Immediately | $ 52.97 | ||||
| NI | 978028 | Valve, Access |
|
- | |||||
| NI | 978029 | Valve, Access |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access |
|
$ 123.53 | |||||
| NI | 876764 | Valve, Access |
|
Immediately | $ 86.33 | ||||
| NI | WP978025 | Valve, Access (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| NI | N/P | Refrigerant Charge 3.0 Oz. (r-134a) |
|
- | |||||
| NI | 978026 | Valve, Access |
|
Immediately | $ 121.04 | ||||
| NI | SF5538 | Valve, Access (Replaces: 978027) |
|
$ 16.79 |
