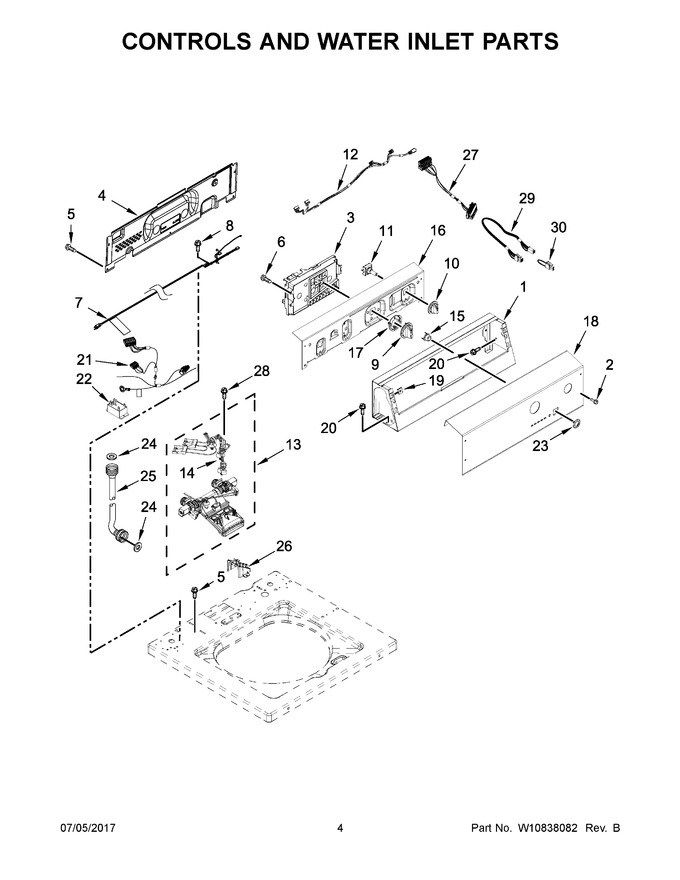

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10461094 | Console |
|
$ 167.97 | |||||
| 2 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 6.57 | |||||
| 3 | W11188527 | Control Unit Assembly, Machine & Motor (Replaces: W10850396) |
|
Immediately | $ 625.91 | ||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 5 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 7 | W11676810 | Cord, Power (Replaces: W10916256) |
|
$ 61.51 | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 9 | W10461101 | Assembly, Timer Knob (gray) |
|
$ 45.37 | |||||
| 10 | W10461100 | Knob & Bumper Assembly (gray) |
|
$ 20.17 | |||||
| 11 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 12 | W10291184 | Harness, Upper E-star |
|
$ 147.71 | |||||
| 13 | W11205048 | Inlet Assembly, Water (Replaces: W10843663) |
|
Immediately | $ 173.90 | ||||
| 14 | W10843398 | Harness, Valve |
|
$ 133.47 | |||||
| 15 | WPW10461117 | Push Button, Start (Replaces: W10461117) |
|
$ 65.12 | |||||
| 16 | W10461067 | Back Bracket, Control Panel |
|
$ 125.36 | |||||
| 17 | W10828902 | Insert, Encoder Stop (4 Position) |
|
- | |||||
| 18 | W11089513 | Fascia (Replaces: W10829499) |
|
Immediately | $ 715.38 | ||||
| 19 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 20 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 21 | W11736785 | Harness, Led (Replaces: W10843661) |
|
Immediately | $ 132.20 | ||||
| 22 | W11384790 | Relay (Replaces: W11032871) |
|
Immediately | $ 70.63 | ||||
| 23 | W10510149 | Bezel - Pts |
|
Immediately | $ 25.77 | ||||
| 24 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 25 | W11085908 | Hose, Water Inlet (cold) (Replaces: W10852720) |
|
Immediately | $ 46.55 | ||||
| 26 | WPW10491734 | Interface, Coin Slide (Replaces: W10491734) |
|
Immediately | $ 85.51 | ||||
| 27 | W11296297 | Jumper, Coin Slide Interface (Replaces: W10514456) |
|
$ 8.33 | |||||
| 28 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 29 | W10539192 | Jumper, Coin Slide Extender |
|
$ 24.97 | |||||
| 30 | W11243585 | Jumper, Feature Selection (Replaces: W10520398) |
|
$ 9.38 | |||||
| 25A | W11085908 | Hose, Water Inlet (hot) (Replaces: W10852721) |
|
Immediately | $ 46.55 |
