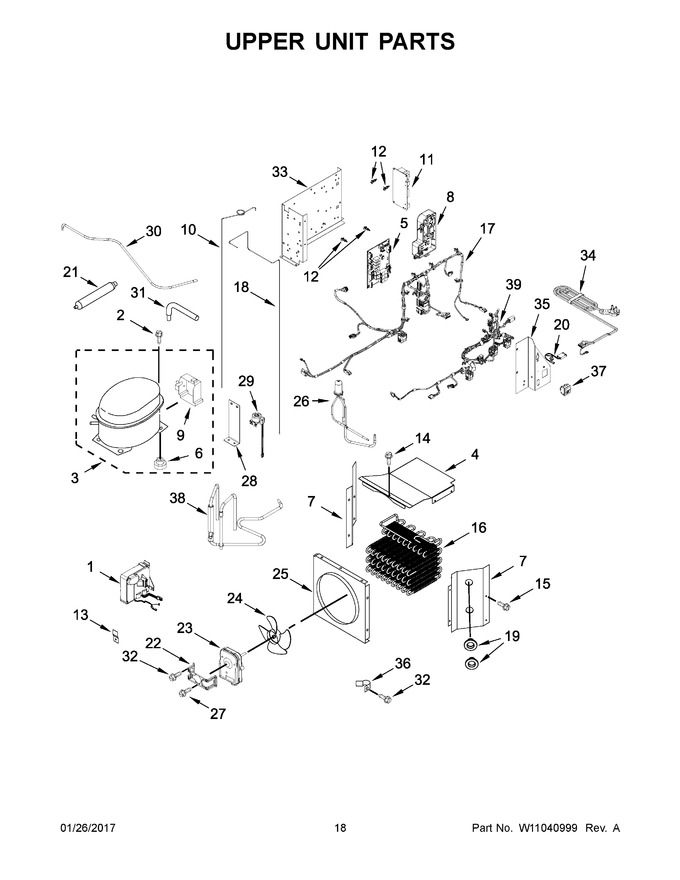

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11573593		Assembly, Inverter Box   (Replaces: W10645666)				$ 247.47
2	W11661574		Screw   (Replaces: 489473)				$ 12.86
3	W10832994		Compressor   (Replaces: W10898644)			Immediately	$ 783.93
4	W10525175		Cover, Condenser Support				$ 65.14
5	WPW10739408		Control, Electronic   (Replaces: W10739408)			Immediately	$ 241.52
6	W11661108		Grommet   (Replaces: 2183042)				$ 13.69
7	WPW10525177		Support, Condenser (left Hand)   (Replaces: W10525177)				$ 99.79
8	W11368839		Assembly, Led Power Supply And Driver Enclosure   (Replaces: W10640411)			Immediately	$ 329.16
9	2215676		Cover, Terminal				$ 84.92
10	W10720079		Tube, Discharge/drain Pan Heater		Appelez-nous	-
11	WPW10624574		Supply, Power   (Replaces: W10624574)			Immediately	$ 233.45
12	WP2203075		Spacer   (Replaces: 2203075)			Immediately	$ 16.93
13	2256328		Bracket, Inverter Mounting		Appelez-nous	-
14	WP965173		Screw   (Replaces: 487415)			Immediately	$ 10.68
15	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
16	W10591457		Condenser				$ 223.70
17	W10898829		Assembly, Hv Wire				$ 141.38
18	W10720080		Tube, Heat Loop				$ 83.21
19	W10587113		Grommet		Appelez-nous	-
20	2310195		Assembly, Jumper Wire (power Switch To Power Cord)				$ 110.88
21	WPW10143759		Drier   (Replaces: W10704381)			Immediately	$ 27.70
22	W10414681		Bracket, Fan Motor				$ 71.58
23	W11127829		Motor, Condenser Fan   (Replaces: W10527155)			Immediately	$ 203.92
24	WPW10139483		Blade, Fan   (Replaces: W10139483)				$ 89.84
25	W10415670		Orifice, Fan		Appelez-nous	-
26	W11647768		Assembly, Valve Body   (Replaces: W10545670)			Immediately	$ 99.48
27	WP8533993		Screw   (Replaces: W10146359)				$ 10.09
28	W11233715		Bracket, 3 Way Valve   (Replaces: W10544999)		Appelez-nous	-
29	W11429989		Coil, 3 Way Valve   (Replaces: W10709318)			Immediately	$ 193.75
30	W10555310		Tube, Condenser/drier				$ 21.68
31	W10528578		Tube, Process				$ 35.84
32	W11624204		Screw   (Replaces: 486194)				$ 13.25
33	W10550831		Housing, Control Board Mounting		Appelez-nous	-
34	2310196		Cord, Power			Immediately	$ 79.67
35	W10625531		Bracket, Control Assembly		Appelez-nous	-
36	549193		Clamp, Power Cord				$ 12.65
37	WP2266802		Switch, Power Disconnect   (Replaces: 2266802)				$ 98.17
38	W10545389		Assembly, Suction Tube				$ 231.15
39	W10898828		Assembly, Lv Wire		Appelez-nous	-
7A	WPW10525179		Support, Condenser (right Hand)   (Replaces: W10525179)				$ 99.79
NI	978030		Valve, Access				$ 123.53
NI	876764		Valve, Access			Immediately	$ 86.33
NI	N/P		Refrigerant Charge 4.50 Oz. (r-134a)		Appelez-nous	-
NI	WP978025		Valve, Access   (Replaces: 978025)			Immediately	$ 99.46
NI	978026		Valve, Access			Immediately	$ 121.04
NI	SF5538		Valve, Access   (Replaces: 978027)				$ 16.79
NI	978028		Valve, Access		Appelez-nous	-
NI	978029		Valve, Access				$ 93.85

    View Diagram in Separate Window       Print Part List
