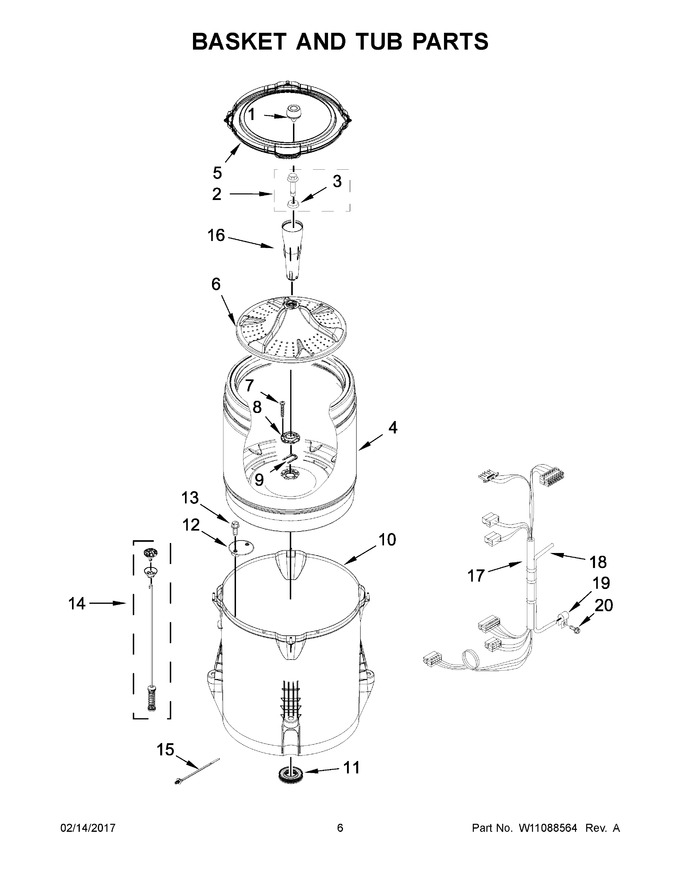

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10740335 | Dispenser, Fabric Softener |
|
$ 38.30 | |||||
| 2 | W10772621 | Screw And Washer (Replaces: W10003790) |
|
Immediately | $ 4.77 | ||||
| 3 | WP3949550 | Washer (Replaces: 3949550) |
|
Immediately | $ 9.98 | ||||
| 4 | W10521298 | Basket Assembly |
|
$ 437.41 | |||||
| 5 | WPW10556325 | Tub Ring (Replaces: W10556325) |
|
Immediately | $ 183.74 | ||||
| 6 | W10919191 | Impeller (washplate) (Replaces: W10680219) |
|
Immediately | $ 174.31 | ||||
| 7 | WP8533953 | Screw (Replaces: 8533953) |
|
Immediately | $ 6.80 | ||||
| 8 | W10528947 | Hub - Driven, Basket (Replaces: W10396887) |
|
Immediately | $ 40.16 | ||||
| 9 | W11385424 | Retainer, Drive Block (Replaces: W10402178) |
|
Immediately | $ 11.67 | ||||
| 10 | W10324648 | Tub (Replaces: W10238301) |
|
$ 325.67 | |||||
| 11 | W10324647 | Seal, Tub (Replaces: W10006371) |
|
Immediately | $ 84.15 | ||||
| 12 | WPW10215093 | Filter, Drain Pump (Replaces: W10215093) |
|
$ 58.73 | |||||
| 13 | WP8533928 | Screw (Replaces: 8533928) |
|
Immediately | $ 7.43 | ||||
| 14 | W11682068 | Damper Assembly, Tub Suspension (set Of 4-includes Suspension Bushingsand Suspension Balls) (Replaces: W10821954) |
|
Immediately | $ 83.03 | ||||
| 15 | WPW10298887 | Cable Tie (Replaces: W10298887) |
|
$ 7.18 | |||||
| 16 | W10836692 | Barrel, Agitator (Replaces: W10680220) |
|
Immediately | $ 125.24 | ||||
| 17 | W10858334 | Harness, Lower (Replaces: W10610081) |
|
$ 201.37 | |||||
| 18 | WP353244 | Hose, Pressure Switch (Replaces: W10236981) |
|
Immediately | $ 78.00 | ||||
| 19 | W10005430 | Clamp, Cable |
|
Immediately | $ 8.58 | ||||
| 20 | WPW10109200 | Screw (Replaces: 8533943) |
|
Immediately | $ 7.92 |
