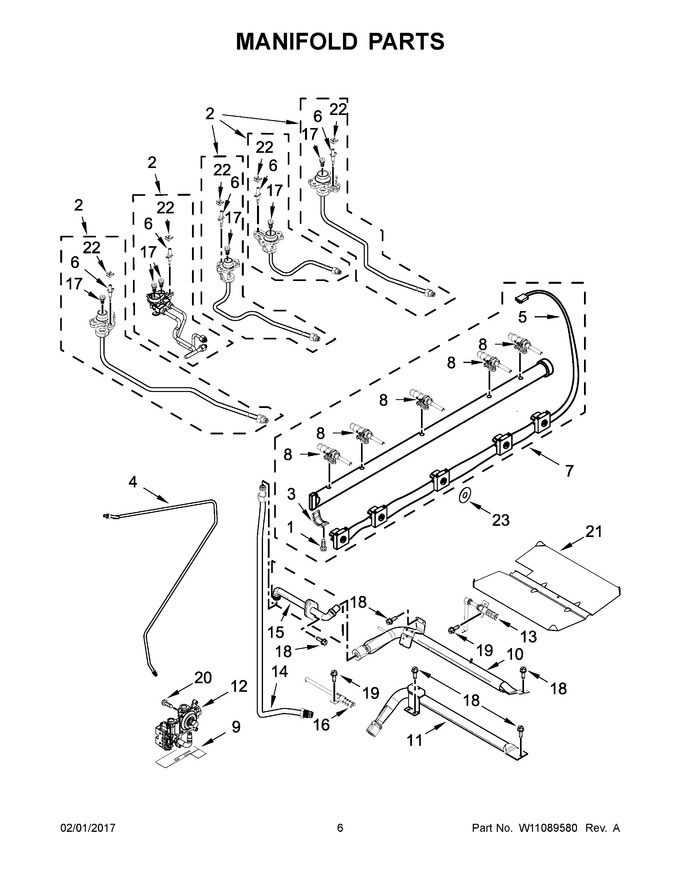

04 - Manifold Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11241230 | Screw (Replaces: W10673618) |
|
Immediately | $ 13.26 | ||||
| 2 | W10552123 | Orifice, Assembly (left Front) |
|
$ 120.89 | |||||
| 3 | W10949105 | Bracket, Saddle Valve (Replaces: W10295996) |
|
$ 20.48 | |||||
| 4 | W10432252 | Tube, Gas Supply |
|
$ 74.44 | |||||
| 5 | W11376663 | Harness, Switch Spark (Replaces: W10432517) |
|
Immediately | $ 169.38 | ||||
| 6 | W11611678 | Electrode (left Front) (Replaces: W10496874) |
|
Immediately | $ 29.68 | ||||
| 7 | W10826727 | Assembly, Manifold |
|
$ 316.74 | |||||
| 8 | W11109973 | Valve, Gas Duel (left Front) (Replaces: W10432224) |
|
Immediately | $ 229.33 | ||||
| 9 | W10224921 | Bracket, Aegis |
|
- | |||||
| 10 | W11676566 | Burner, Broiler (Replaces: W10439242) |
|
$ 85.48 | |||||
| 11 | W10764654 | Burner, Bake (Replaces: W10680035) |
|
Immediately | $ 82.49 | ||||
| 12 | W10861656 | Valve, Regulator (Replaces: W10554066) |
|
Immediately | $ 301.09 | ||||
| 13 | WPW10324262 | Igniter, Bake (Replaces: W10324262) |
|
Immediately | $ 98.85 | ||||
| 14 | W10306050 | Tube, Broil Supply (broiler Fitting To Valve) |
|
$ 170.84 | |||||
| 15 | W10583216 | Fitting, Broil Burner |
|
$ 86.27 | |||||
| 16 | WPW10333842 | Electrode, Broil (Replaces: W10333842) |
|
Immediately | $ 93.71 | ||||
| 17 | W11051480 | Orifice (17k) (left Front) (Replaces: W10506739) |
|
$ 81.62 | |||||
| 18 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 19 | W11684507 | Screw (Replaces: 3196385) |
|
$ 12.84 | |||||
| 20 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.55 | |||||
| 21 | 3601P336-45 | Baffle, Broil Burner |
|
$ 204.38 | |||||
| 22 | W10575401 | Clip, Spring (electrode) |
|
Immediately | $ 10.17 | ||||
| 23 | W10140571 | Seal, Switch Shaft |
|
$ 6.93 | |||||
| 17A | W10819958 | Orifice (1.2k) (left Front) (Replaces: W10256132) |
|
$ 87.99 | |||||
| 17B | W10756981 | Orifice (left Rear) (Replaces: W10515054) |
|
Immediately | $ 16.12 | ||||
| 17C | W10821182 | Orifice (right Front) (Replaces: W10434277) |
|
Immediately | $ 84.11 | ||||
| 17D | W11752198 | Orifice (right Rear) (Replaces: W10657949) |
|
$ 29.97 | |||||
| 17E | W10657947 | Orifice (8k) (center) |
|
$ 20.16 | |||||
| 2A | W10552121 | Assembly, Orifice (left Rear) |
|
$ 179.54 | |||||
| 2B | W10552120 | Assembly, Orifice (right Front) |
|
Immediately | $ 119.12 | ||||
| 2C | W10552119 | Assembly, Orifice (right Rear) |
|
$ 203.59 | |||||
| 2D | W10552124 | Assembly, Orifice (center) |
|
$ 198.96 | |||||
| 6A | W11050467 | Electrode (left Rear) (Replaces: W10464799) |
|
Immediately | $ 59.56 | ||||
| 6B | W11447374 | Electrode (right Front & Center) (Replaces: W10496870) |
|
Immediately | $ 41.49 | ||||
| 6C | W11220383 | Electrode (right Rear) (Replaces: W10496872) |
|
Immediately | $ 59.56 | ||||
| 8A | W10831591 | Valve, Gas (left Rear) |
|
Immediately | $ 259.15 | ||||
| 8B | W11241561 | Valve, Gas (right Front) (Replaces: W10566062) |
|
Immediately | $ 175.63 | ||||
| 8C | W11233561 | Valve, Gas (right Rear & Center) (Replaces: W10566057) |
|
Immediately | $ 238.25 |
