SELECT A DIAGRAM

01 - Cover Sheet


02 - Washer/dryer Control Panel Parts


03 - Dryer Front Panel And Door Parts


04 - Dryer Cabinet And Motor Parts


05 - Dryer Bulkhead Parts


06 - Dryer Support And Washer Harness Parts


07 - Washer Top And Lid Parts


08 - Washer Cabinet Parts


09 - Brake, Clutch, Gearcase, Motor And Pump Parts


10 - Machine Base Parts


11 - Agitator, Basket And Tub Parts


12 - Gearcase Parts


13 - Brake And Drive Tube Parts

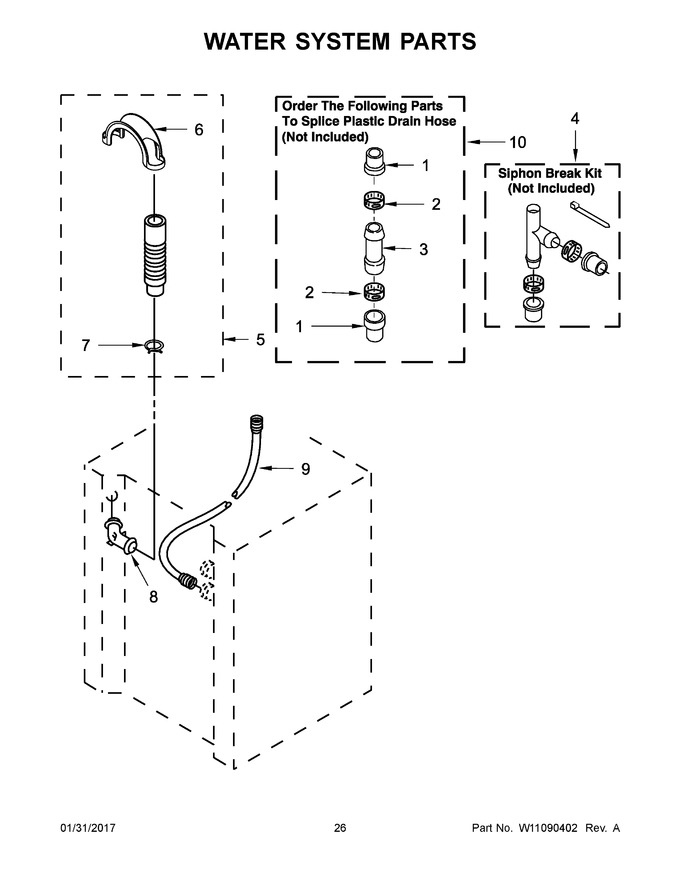

14 - Water System Parts


15 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	285321		Sleeve Kit, (contains 2 Sleeves)				$ 79.30
2	WP285655		Clamp, Hose   (Replaces: 65349)			Immediately	$ 7.93
3	WP16272		Connector, Straight   (Replaces: 16272)				$ 7.39
4	76660		Siphon Break Kit   (Replaces: 285320)			Immediately	$ 125.92
5	285664		Drain Hose Assembly   (Replaces: 661575)			Immediately	$ 37.88
6	WP8577378		U-bend, Drain Hose   (Replaces: 8577378)				$ 7.53
7	WP3357331		Clamp, Hose   (Replaces: 3357331)				$ 7.37
8	W11213338		Connector, Hose   (Replaces: 8557915)				$ 66.72
9	WP89503		Hose, Inlet   (Replaces: 3354858)			Immediately	$ 21.68
10	285442		Connector Kit, Plastic Drain Hose				$ 88.85
NI	N/P		(parts Not Shown)		Appelez-nous	-
NI	WPW10108350		Hose, Corrugated Plastic Drain (6 1/2 Ft)   (Replaces: W10108350)				$ 85.47
NI	285666		Hose, Corrugated Plastic Drain (10 Ft)   (Replaces: 661577)			Immediately	$ 98.08

    View Diagram in Separate Window       Print Part List
