01 - Cover Sheet

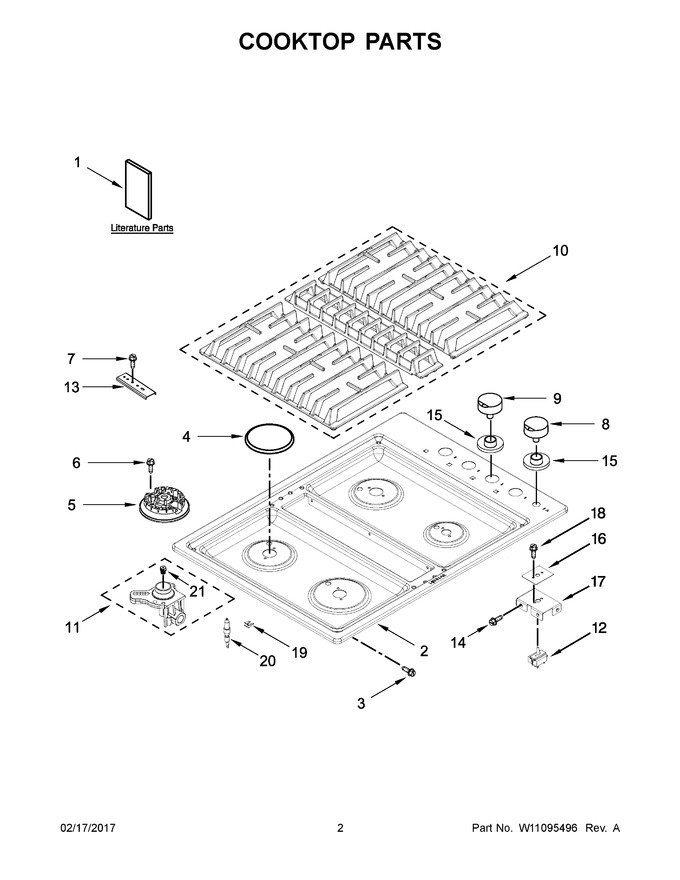

02 - Cooktop Parts
03 - Blower Unit Parts
04 - Burner Box Parts
05 - Optional Parts Not Included
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10848427 | Instructions, Installation |
|
- | |||||
| 2 | W11476216 | Top, Main (black) (Replaces: W10842292) |
|
$ 490.68 | |||||
| 3 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 4 | W11579391 | Kit, Burner Cap (Replaces: W10910373) |
|
$ 203.60 | |||||
| 5 | W11084065 | Assembly, Burner (ur) (left Front & Right Rear) (Replaces: W10815357) |
|
$ 117.72 | |||||
| 6 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 7 | WP3400093 | Screw (Replaces: 3400093) |
|
$ 6.80 | |||||
| 8 | W11084047 | Knob, Fan (black) (Replaces: W10876700) |
|
$ 72.99 | |||||
| 9 | W10559476 | Knob, Control (black) |
|
$ 89.78 | |||||
| 10 | W11241674 | Kit, Grate (black) (Replaces: W10821820) |
|
$ 372.19 | |||||
| 11 | W10826752 | Holder, Orifice (17k) (left Front) |
|
$ 92.25 | |||||
| 12 | W11676792 | Switch, Blower (Replaces: W10866564) |
|
$ 60.27 | |||||
| 13 | 8186533 | Bracket, Cooktop Mounting (Replaces: 4455917) |
|
$ 83.57 | |||||
| 14 | WPY706189 | Screw (Replaces: 7101P427-60) |
|
Immediately | $ 6.80 | ||||
| 15 | W11544657 | Bezel (black) (Replaces: W10559486) |
|
$ 41.41 | |||||
| 16 | WP71002569 | Gasket, Infinite Switch (Replaces: 7201P077-60) |
|
Immediately | $ 9.51 | ||||
| 17 | W10868745 | Bracket, Switch Mount |
|
$ 68.64 | |||||
| 18 | WP7101P309-60 | Screw (Replaces: 7101P309-60) |
|
Immediately | $ 6.57 | ||||
| 19 | W11684564 | Clip, Spring (electrode) (Replaces: W10827923) |
|
Immediately | $ 11.39 | ||||
| 20 | W11690138 | Electrode (left Front) (Replaces: W10862325) |
|
$ 26.92 | |||||
| 21 | W10907865 | Orifice (left Front) |
|
$ 81.62 | |||||
| 11A | W10826751 | Holder, Orifice (5k) (left Rear) |
|
- | |||||
| 11B | W10826754 | Holder, Orifice (10k) (right Front) |
|
$ 95.53 | |||||
| 11C | W10826753 | Holder, Orifice (15k) (right Rear) |
|
$ 95.47 | |||||
| 15A | WPW10559494 | Bezel (stainless) (Replaces: W10559494) |
|
Immediately | $ 72.20 | ||||
| 1A | W10917791 | Diagram, Wiring |
|
- | |||||
| 1B | W10848425 | Guide, Use & Care |
|
- | |||||
| 1C | W10240007 | Instructions, Lp Conversion |
|
- | |||||
| 1D | 9762761 | Tips, Safe Cooking (english) |
|
- | |||||
| 1E | W10065852 | Tips, Safe Cooking (french) |
|
- | |||||
| 20A | W10862326 | Electrode (left Rear) |
|
$ 60.61 | |||||
| 20B | W10862323 | Electrode (right Front) |
|
Immediately | $ 36.14 | ||||
| 20C | W10862324 | Electrode (right Rear) |
|
Immediately | $ 62.57 | ||||
| 21A | W11677633 | Orifice (left Rear) (Replaces: W10849719) |
|
$ 89.24 | |||||
| 21B | W10907868 | Orifice (right Front) |
|
$ 81.62 | |||||
| 21C | W10907866 | Orifice (right Rear) |
|
$ 81.62 | |||||
| 2A | W11476218 | Top, Main (stainless) (Replaces: W10842290) |
|
$ 548.13 | |||||
| 5A | W11084066 | Assembly, Burner (aux) (left Rear) (Replaces: W10815354) |
|
$ 117.72 | |||||
| 5B | W11084064 | Assembly, Burner (sr) (right Front) (Replaces: W10815355) |
|
$ 117.72 | |||||
| 8A | W11084048 | Knob, Fan (stainless) (Replaces: W10876699) |
|
$ 72.26 | |||||
| 9A | WPW10559475 | Knob, Control (stainless) (Replaces: W10559475) |
|
$ 53.60 | |||||
| NI | W10834700 | Harness, Main |
|
$ 150.87 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W11083837 | Kit, Lp Orifice (Replaces: W11022461) |
|
$ 155.12 | |||||
| NI | W10835283 | Harness, Blower |
|
$ 66.02 | |||||
| NI | W11465762 | Harness, Jumper (Replaces: W10858227) |
|
$ 30.04 | |||||
| NI | W10831977 | Cord, Power |
|
$ 101.32 | |||||
| NI | W10132200 | Relief, Strain |
|
- | |||||
| NI | 8287106 | Clip, Wire (Replaces: W10183556) |
|
- | |||||
| NI | W10909126 | Kit, Plenum Screw |
|
Immediately | $ 19.93 |
