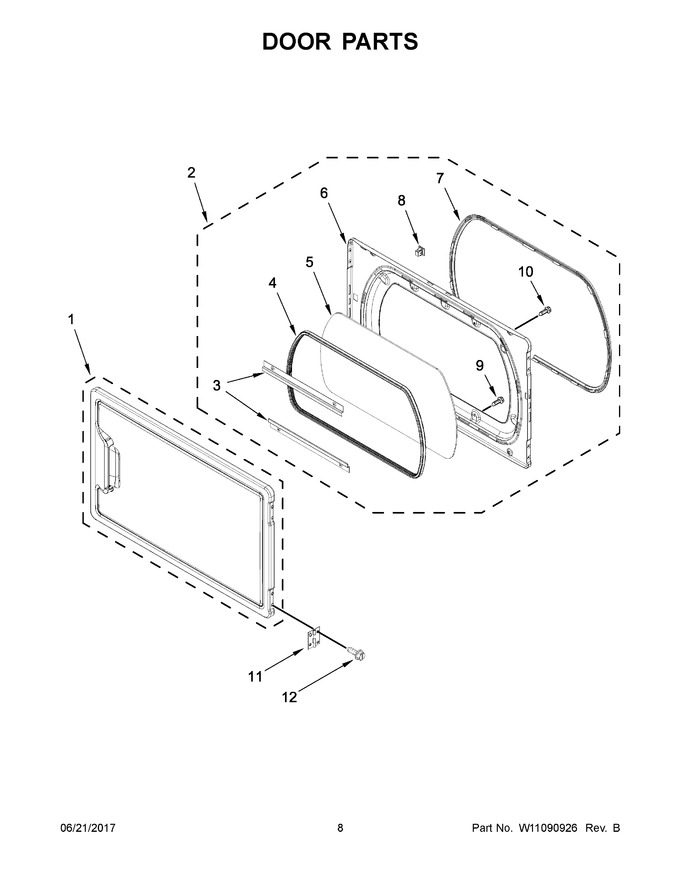

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11091710 | Assembly, Outer Door (white) (Replaces: W11039175) |
|
$ 257.71 | |||||
| 2 | W11652037 | Assembly, Inner Door (white) (Replaces: W10513690) |
|
$ 188.01 | |||||
| 3 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 4 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 25.53 | |||||
| 5 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 237.25 | |||||
| 6 | W10822056 | Door, Inner (white) (Replaces: W10470571) |
|
$ 197.23 | |||||
| 7 | WPW10354795 | Seal, Door (Replaces: W10354795) |
|
$ 117.11 | |||||
| 8 | 279570 | Assembly, Door Catch (Replaces: 690081) |
|
Immediately | $ 8.00 | ||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 10 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 | |||||
| 11 | WPW10279703 | Assembly, Hinge & Pin (silver) (Replaces: W10279703) |
|
$ 68.25 | |||||
| 12 | WPW10273971 | Screw (Replaces: W10192860) |
|
Immediately | $ 6.80 |
