View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet

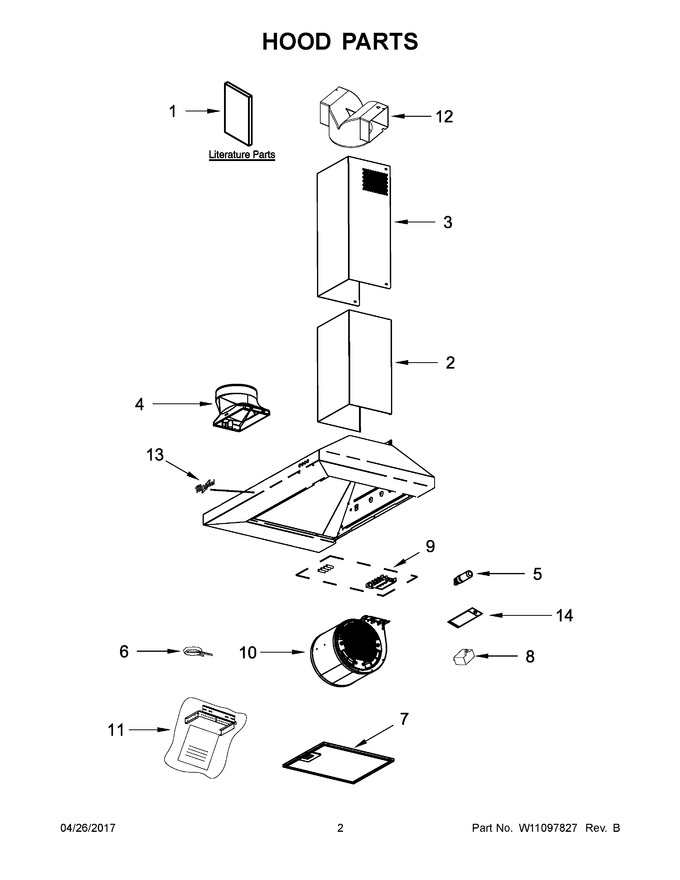

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10458667 | Use And Care Guide |
|
- | |||||
| 2 | W11417192 | Chimney, Lower (Replaces: W10350864) |
|
$ 338.23 | |||||
| 3 | W11417192 | Chimney, Upper (Replaces: W10350865) |
|
$ 338.23 | |||||
| 4 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 140.43 | |||||
| 5 | WP8190806 | Bulb, Light 40 Watts (Replaces: 8190806) |
|
$ 70.76 | |||||
| 6 | W10427011 | Filter, Noise |
|
- | |||||
| 7 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 37.65 | ||||
| 8 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 9 | WPW10350884 | Switch, Push Button (Replaces: W10350884) |
|
$ 310.38 | |||||
| 10 | W11083991 | Assembly, Fan |
|
- | |||||
| 11 | W10895119 | Hardware, Installation |
|
- | |||||
| 12 | W10427014 | Duct, Air Diverter |
|
$ 99.74 | |||||
| 13 | W11178521 | Badge (grey) (Replaces: W10434972) |
|
Immediately | $ 56.82 | ||||
| 14 | W11050761 | Cover, Light |
|
$ 18.96 | |||||
| NI | W10337357 | Miscellaneous Parts, Chimney Extension Kit |
|
$ 405.95 | |||||
| NI | W11430940 | Miscellaneous Parts, Recirculation Kit (for Non-vented Installations Only) (Replaces: W10349327) |
|
Immediately | $ 137.92 | ||||
| NI | W10412939 | Miscellaneous Parts, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 66.98 |
