Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W11101569 Assembly, Control Panel (black Stainless)   (Replaces: W10877121) Special Order $ 885.72

2 W11101581 Interface, User   (Replaces: W10624968) Special Order $ 371.04

3 WP3400832 Screw (black)   (Replaces: 3400832) In-Stock Immediately $ 7.36

4 W10909789 Skin, Control Panel (black Stainless)   (Replaces: W10861075) Special Order $ 470.23


    View Diagram in Separate Window     Print Icon   Print Part List

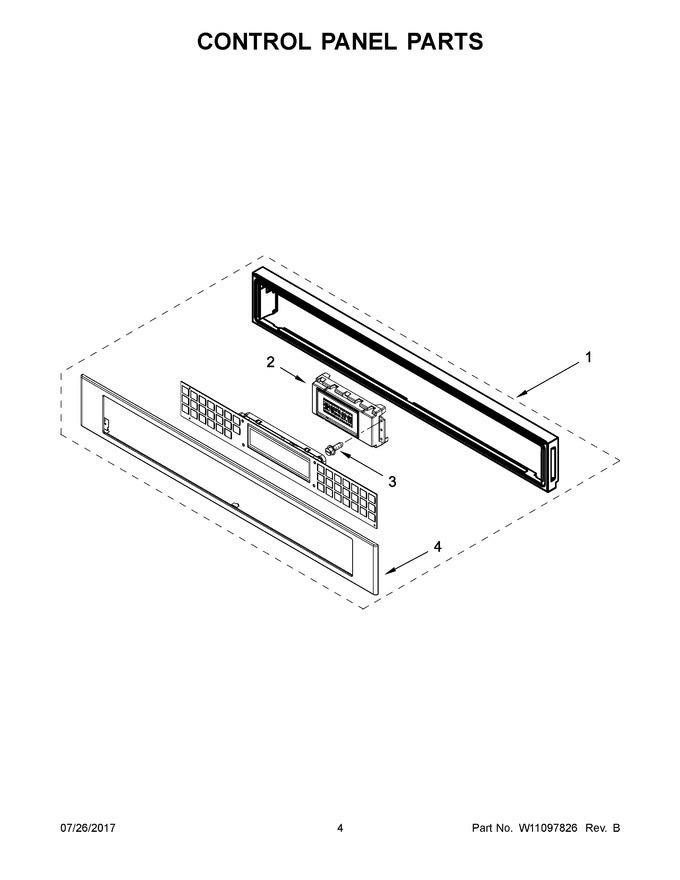

Diagram for KMBP107EBS01
