01 - Cover Sheet
02 - Top And Console Parts
03 - Cabinet Parts
04 - Door Parts
05 - Bulkhead Parts
06 - Burner Assembly Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

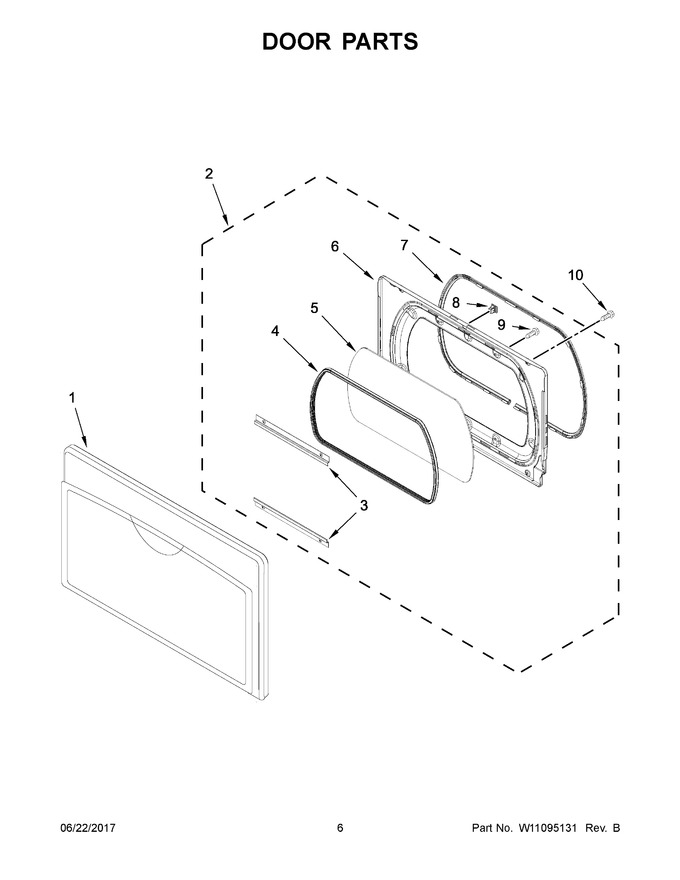

| 1 | W11089309 | Assembly, Outer Door (white) (Replaces: W11033594) |
|
$ 349.45 | |||||
| 2 | W11376676 | Assembly, Inner Door (white) (Replaces: W10513691) |
|
- | |||||
| 3 | W10822054 | Retainer, Window (Replaces: 8519354) |
|
Immediately | $ 16.21 | ||||
| 4 | W11676508 | Seal, Window (Replaces: W10284122) |
|
$ 25.53 | |||||
| 5 | WPW10284121 | Glass, Door (Replaces: W10284121) |
|
$ 237.25 | |||||
| 6 | W10822055 | Door, Inner (white) (Replaces: W10470569) |
|
- | |||||
| 7 | WPW10354795 | Seal, Door (Replaces: W10284123) |
|
$ 117.11 | |||||
| 8 | WP3389441 | Assembly, Door Catch (Replaces: 3389441) |
|
Immediately | $ 6.56 | ||||
| 9 | WP3373329 | Screw (Replaces: 3393258) |
|
$ 7.67 | |||||
| 10 | WP8534022 | Screw (Replaces: 8534022) |
|
$ 7.53 |
