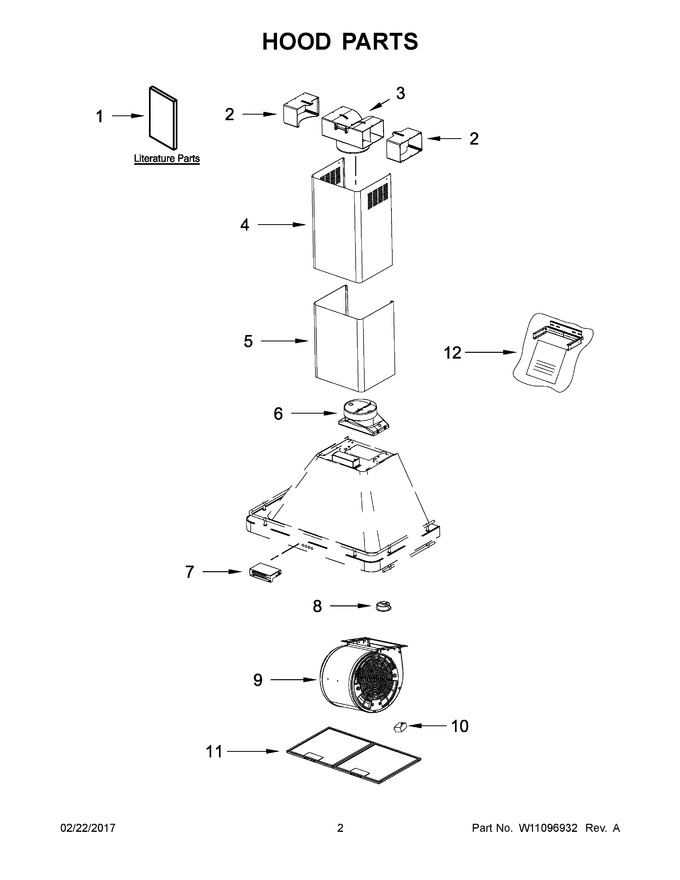

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10392947 | Use & Care Guide |
|
- | |||||
| 2 | W11099257 | Extension |
|
- | |||||
| 3 | W11099256 | Duct, Air Diverter |
|
- | |||||
| 4 | W10427640 | Cover, Upper Duct |
|
$ 297.79 | |||||
| 5 | W10427639 | Cover, Lower Duct |
|
- | |||||
| 6 | W10847841 | Damper, Hood (plastic) (Replaces: W10592040) |
|
$ 140.43 | |||||
| 7 | W10427642 | Control Panel |
|
$ 111.97 | |||||
| 8 | WPW10638164 | Assembly, Light (Replaces: W10638164) |
|
Immediately | $ 242.24 | ||||
| 9 | W10900832 | Motor, Fan |
|
$ 368.56 | |||||
| 10 | W11328673 | Capacitor (Replaces: W10735734) |
|
Immediately | $ 59.00 | ||||
| 11 | W10169961A | Filter, Grease (Replaces: W10870878) |
|
Immediately | $ 37.65 | ||||
| 12 | W11099258 | Hardware, Installation |
|
- | |||||
| NI | W10412939 | Accessories, Kit, Charcoal Filter (for Non-vented Installations Only) |
|
Immediately | $ 66.98 |
