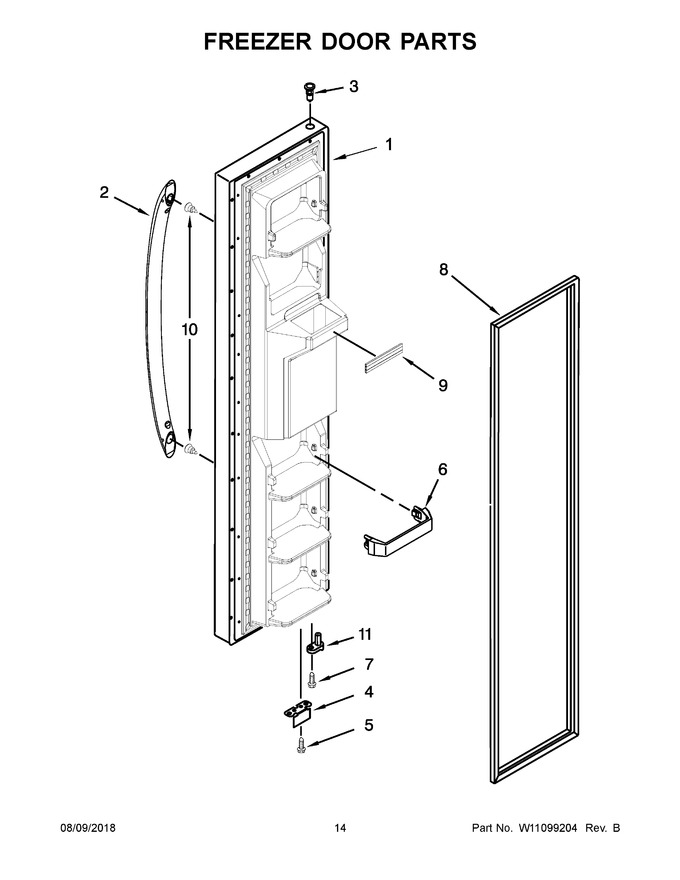

08 - Freezer Door Parts


09 - Dispenser Parts


10 - Air Flow Parts


11 - Control Box Parts


12 - Unit Parts


13 - Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10878477		Freezer Door (includes Item 8 And Dispenser Front Parts) (white)		Appelez-nous	-
2	W10210942A		Handle (white)   (Replaces: W10210942)				$ 116.58
3	WP2182181		Thimble   (Replaces: 2182181)				$ 7.34
4	2306940		Bracket, Door Stop (silver)				$ 91.74
5	WP489483		Screw   (Replaces: 489420)				$ 10.27
6	WP2309718		Trivet   (Replaces: 2309718)				$ 55.34
7	WP3400012		Screw   (Replaces: 3400012)				$ 7.43
8	2159074		Gasket, Door (beige)   (Replaces: 2309532)				$ 293.13
9	WPW10307490		Trim, Door Shelf   (Replaces: W10307494)			Immediately	$ 21.84
10	WPW10288153		Screw   (Replaces: W10288153)			Immediately	$ 8.69
11	W10846219		Thimble, Cam				$ 75.08
1A	W10878485		Freezer Door (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
1B	W10878483		Freezer Door (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2A	W10210942A		Handle (black)   (Replaces: W10210943)				$ 116.58
2B	WPW10257120		Handle (grey)   (Replaces: W10257120)				$ 53.73
8A	2159082		Gasket, Door (black)   (Replaces: 2309533)				$ 299.24
