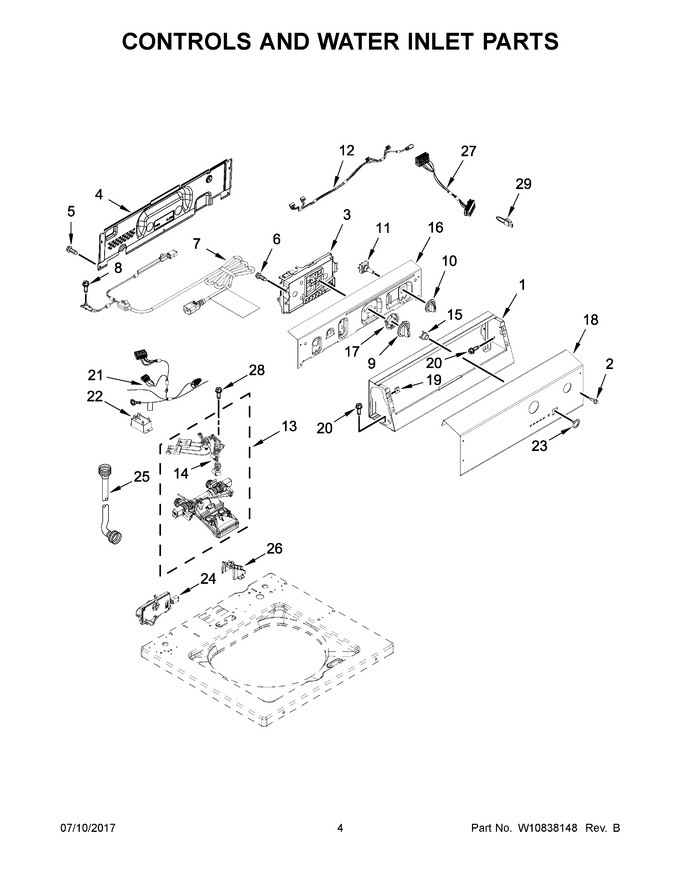

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11124005 | Console (Replaces: W10461095) |
|
$ 214.58 | |||||
| 2 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 6.57 | |||||
| 3 | W11831581 | Control Unit Assembly, Machine & Motor (Replaces: W10850505) |
|
$ 348.81 | |||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 5 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 6 | WP90767 | Screw (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 7 | W11049970 | Cord, Power |
|
- | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 9 | W11103226 | Assembly, Timer Knob (gray) (Replaces: W10133504) |
|
$ 64.13 | |||||
| 10 | W11199426 | Knob & Bumper Assembly (gray) (Replaces: W10461097) |
|
$ 8.73 | |||||
| 11 | WPW10285518 | Switch, Rotary Encoder (5 Position) (Replaces: W10285518) |
|
Immediately | $ 142.31 | ||||
| 12 | W10291184 | Harness, Upper E-star |
|
$ 147.71 | |||||
| 13 | W11104125 | Inlet Assembly, Water (Replaces: W10843664) |
|
$ 176.18 | |||||
| 14 | W10917281 | Harness, Valve |
|
- | |||||
| 15 | WPW10461117 | Push Button, Start (Replaces: W10461117) |
|
$ 65.12 | |||||
| 16 | W10461066 | Bracket, Back |
|
- | |||||
| 17 | W10828903 | Insert, Encoder Stop (7 Position) |
|
- | |||||
| 18 | W11103732 | Fascia (Replaces: W10829505) |
|
- | |||||
| 19 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 20 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 21 | W11033083 | Harness, Led |
|
- | |||||
| 22 | W11500166 | Relay (Replaces: W11032872) |
|
- | |||||
| 23 | W10510149 | Bezel - Pts |
|
Immediately | $ 25.77 | ||||
| 24 | W10920036 | Line Filter |
|
- | |||||
| 25 | WPW10489643 | Hose, Water Inlet (hot) (Replaces: W10489643) |
|
$ 73.67 | |||||
| 26 | WPW10491734 | Interface, Coin Slide (Replaces: W10491734) |
|
Immediately | $ 85.51 | ||||
| 27 | W11296297 | Jumper, Coin Slide Interface (Replaces: W10514456) |
|
$ 8.33 | |||||
| 28 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 29 | W11243585 | Jumper, Feature Selection (Replaces: W10520398) |
|
$ 9.38 | |||||
| 25A | WPW10489648 | Hose, Water Inlet (cold) (Replaces: W10489648) |
|
$ 72.87 | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 72.81 | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 25.24 | |||||
| NI | W11384794 | 10a Cord Adaptor (austrailian) (Replaces: W10476818) |
|
- | |||||
| NI | N/P | (not Illustrated) |
|
- |
