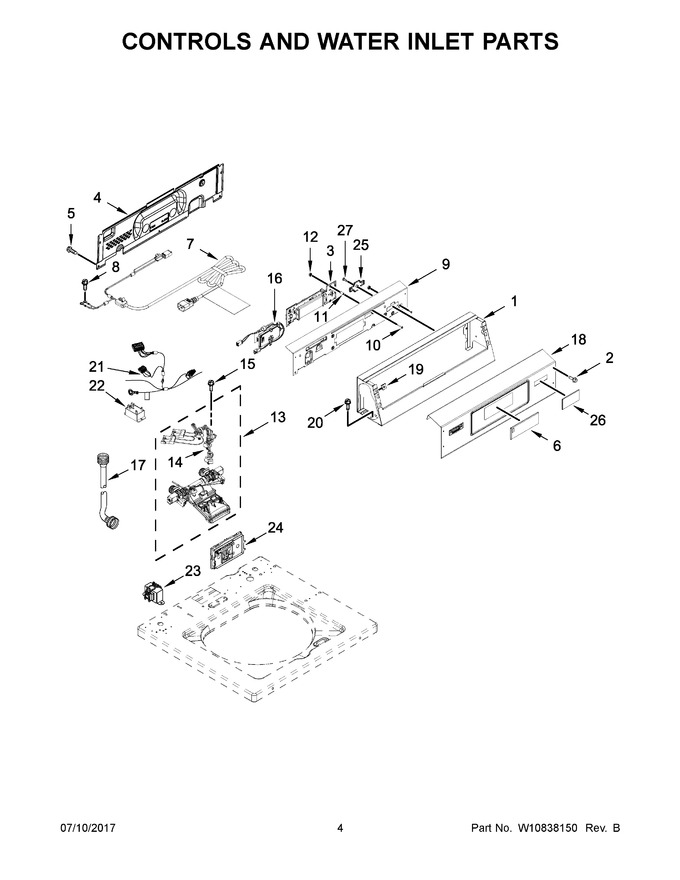

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10461094 | Console Mat20pdagw0 |
|
$ 167.97 | |||||
| 2 | WPW10131119 | Screw M4x13 (Replaces: W10131119) |
|
$ 6.57 | |||||
| 3 | W11323688 | User Interface Mat20pdagw0 (Replaces: W11113315) |
|
$ 317.50 | |||||
| 4 | WPW10461159 | Panel, Console Rear Cover (Replaces: W10461159) |
|
Immediately | $ 324.39 | ||||
| 5 | W11685943 | Screw (Replaces: W10660565) |
|
$ 13.47 | |||||
| 6 | W11637765 | Cover, Display (Replaces: W10267645) |
|
$ 62.63 | |||||
| 7 | W11049970 | Cord, Power |
|
- | |||||
| 8 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 9 | W10845300 | Bracket, Control Mat20pdagw0 |
|
- | |||||
| 10 | W11117300 | Screw (Replaces: W10137322) |
|
- | |||||
| 11 | W11117166 | Standoff, Circuit Board (Replaces: W10133514) |
|
- | |||||
| 12 | WPW10139046 | Nut (Replaces: W10139046) |
|
$ 8.31 | |||||
| 13 | W11104125 | Inlet Assembly, Water (Replaces: W10843664) |
|
$ 176.18 | |||||
| 14 | W10917281 | Harness, Valve |
|
- | |||||
| 15 | WPW10213953 | Screw (Replaces: W10213953) |
|
Immediately | $ 6.80 | ||||
| 16 | W10920480 | Filter, Line |
|
- | |||||
| 17 | WPW10489643 | Hose, Water Inlet (hot) (Replaces: W10489643) |
|
$ 73.67 | |||||
| 18 | W11103731 | Fascia Mat20pdagw0 (Replaces: W10821631) |
|
- | |||||
| 19 | WPW10131123 | Nut, "u (Replaces: W10131123) |
|
$ 7.29 | |||||
| 20 | WP3390631 | Screw (Replaces: 3390631) |
|
$ 7.43 | |||||
| 21 | W11298254 | Harness, Upper Vfd (Replaces: W11033095) |
|
- | |||||
| 22 | W11500166 | Relay (Replaces: W11032872) |
|
- | |||||
| 23 | W10751202 | Transformer, 240-22.5 Vac (Replaces: W10633921) |
|
$ 202.81 | |||||
| 24 | W11256391 | Control Unit Assembly, Machine & Motor (Replaces: W10851712) |
|
- | |||||
| 25 | W11775266 | Retainer, Card Reader Cover (Replaces: W10137770) |
|
- | |||||
| 26 | W11164066 | Cover, Card Reader (Replaces: W10137769) |
|
- | |||||
| 27 | 3400618 | Screw |
|
$ 61.15 | |||||
| 17A | WPW10489648 | Hose, Water Inlet (cold) (Replaces: W10489648) |
|
$ 72.87 | |||||
| 18A | W11103728 | Fascia Mat20pnagw0 (Replaces: W10902640) |
|
- | |||||
| 1A | W11124005 | Console Mat20pnagw0 (Replaces: W10461095) |
|
$ 214.58 | |||||
| 3A | W11323682 | User Interface Mat20pnagw0 (Replaces: W11113310) |
|
$ 412.80 | |||||
| 9A | W11760232 | Bracket, Control Mat20pnagw0 (Replaces: W10845298) |
|
- | |||||
| NI | W10446855 | 10a Cord Lock |
|
- | |||||
| NI | WPW10476822 | 10a Cord Adapter (european) (Replaces: W10476822) |
|
$ 72.81 | |||||
| NI | WPW10476820 | 10a Cord Adapter (british) (Replaces: W10476820) |
|
$ 25.24 | |||||
| NI | W11384794 | 10a Cord Adaptor (austrailian) (Replaces: W10476818) |
|
- | |||||
| NI | N/P | (not Illustrated) |
|
- |
