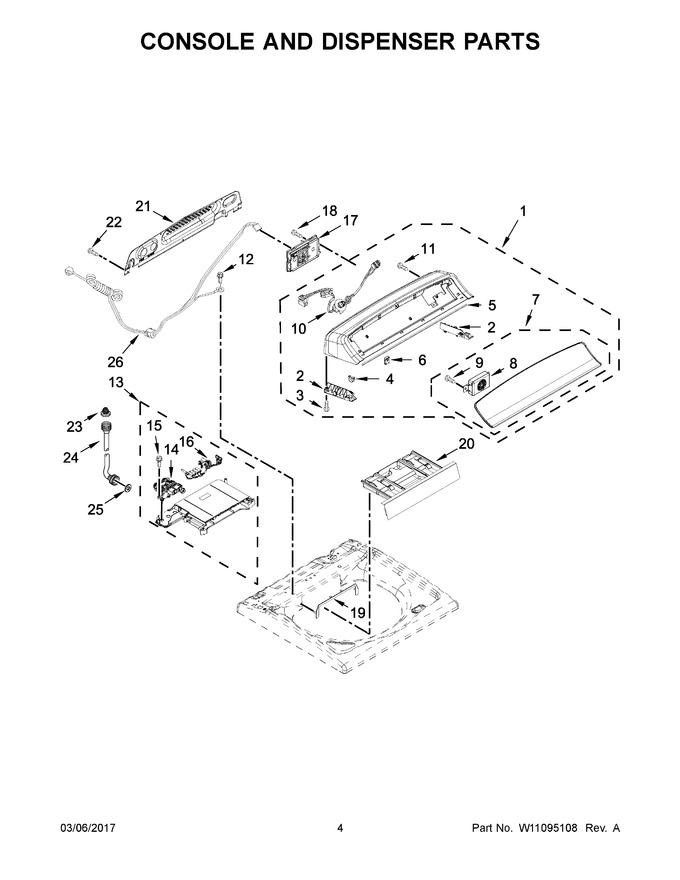

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10908064 | Console (white) (Replaces: W10806833) |
|
- | |||||
| 2 | W10631630 | Console Mount (left) |
|
$ 138.27 | |||||
| 3 | W10853898 | Screw (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 4 | WP8312709 | Clip, Console (Replaces: 8312709) |
|
Immediately | $ 14.93 | ||||
| 5 | W10726624 | Seal, Console |
|
$ 29.03 | |||||
| 6 | W11213336 | Nut, "u (Replaces: W10298336) |
|
$ 7.32 | |||||
| 7 | W10791310 | Assembly, Console Fascia |
|
- | |||||
| 8 | W11123146 | Assembly, Speaker (Replaces: W10568405) |
|
$ 72.84 | |||||
| 9 | W10728156 | Screw |
|
- | |||||
| 10 | W10915405 | Harness, Ui (Replaces: W10596717) |
|
$ 10.05 | |||||
| 11 | W11311945 | Screw (Replaces: 12990204) |
|
$ 13.25 | |||||
| 12 | W10846509 | Screw (Replaces: 3400076) |
|
Immediately | $ 7.38 | ||||
| 13 | W11173597 | Assembly, Housing (Replaces: W10854689) |
|
$ 342.02 | |||||
| 14 | W11220230 | Valve, Water Inlet (Replaces: W10758829) |
|
Immediately | $ 156.74 | ||||
| 15 | WPW10109200 | Screw (Replaces: 97787) |
|
Immediately | $ 7.92 | ||||
| 16 | W11458657 | Harness, Valve (Replaces: W10849300) |
|
$ 26.46 | |||||
| 17 | W11033189 | Control Unit Assembly, Machine And Motor (Replaces: W10894389) |
|
- | |||||
| 18 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 19 | W10601845 | Assembly, Dispenser Bezel (white) (Replaces: W10601841) |
|
$ 38.33 | |||||
| 20 | W10861667 | Assembly, Dispenser Drawer (white) (Replaces: W10794820) |
|
Immediately | $ 101.46 | ||||
| 21 | W10611544 | Panel, Console Rear Cover |
|
$ 307.11 | |||||
| 22 | WP489069 | Screw (Replaces: 1157158) |
|
Immediately | $ 7.56 | ||||
| 23 | 285452A | Washer, Filter (Replaces: W10810281) |
|
Immediately | $ 8.72 | ||||
| 24 | WP89503 | Hose, Water Inlet (cold) (Replaces: W10194210) |
|
Immediately | $ 21.68 | ||||
| 25 | WP16123 | Washer, Hose (Replaces: W10242307) |
|
$ 7.34 | |||||
| 26 | W10859955 | Cord, Power (Replaces: W10479821) |
|
$ 74.46 | |||||
| 24A | WP89503 | Hose, Water Inlet (hot) (Replaces: W10194211) |
|
Immediately | $ 21.68 | ||||
| 2A | W10631629 | Console Mount (right) |
|
- |
