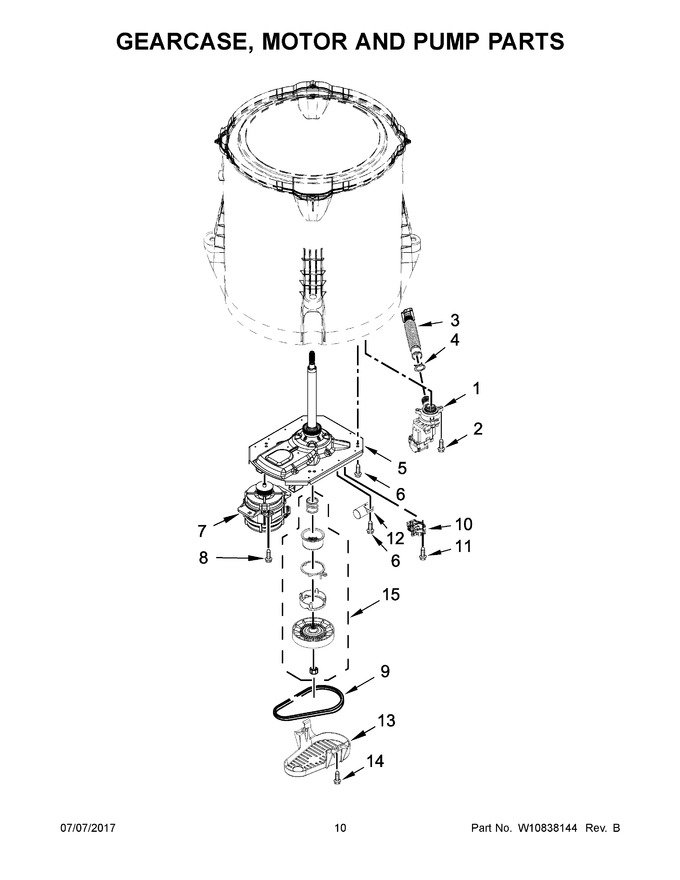

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10292579 | Pump Assembly, Drain (Replaces: W10292579) |
|
Immediately | $ 295.97 | ||||
| 2 | WPW10004910 | Screw (Replaces: W10004910) |
|
$ 7.55 | |||||
| 3 | W10899966 | Hose, Inner Drain Assembly (Replaces: W10763078) |
|
Immediately | $ 32.20 | ||||
| 4 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 5 | W11159068 | Assembly, Gearcase (Replaces: W11092242) |
|
Immediately | $ 556.66 | ||||
| 6 | WPW10249633 | Screw (Replaces: W10249633) |
|
Immediately | $ 6.80 | ||||
| 7 | W11646916 | Motor, Drive (Replaces: W10851728) |
|
- | |||||
| 8 | W11685857 | Screw (Replaces: W10094780) |
|
$ 13.33 | |||||
| 9 | WPW10006388 | Belt, Drive (Replaces: W10852652) |
|
$ 84.05 | |||||
| 10 | W11511138 | Actuator, Shift (Replaces: W10815027) |
|
Immediately | $ 86.66 | ||||
| 11 | W11596033 | Screw (Replaces: 9741052) |
|
$ 12.81 | |||||
| 12 | W10873918 | Capacitor, Motor Run |
|
- | |||||
| 13 | WPW10427633 | Shield, Pulley Cover (Replaces: W10427633) |
|
Immediately | $ 44.80 | ||||
| 14 | WP273556 | Screw (Replaces: 357640) |
|
Immediately | $ 7.59 | ||||
| 15 | W10759993 | Splutch Kit (50 Hz) |
|
Immediately | $ 37.04 |
