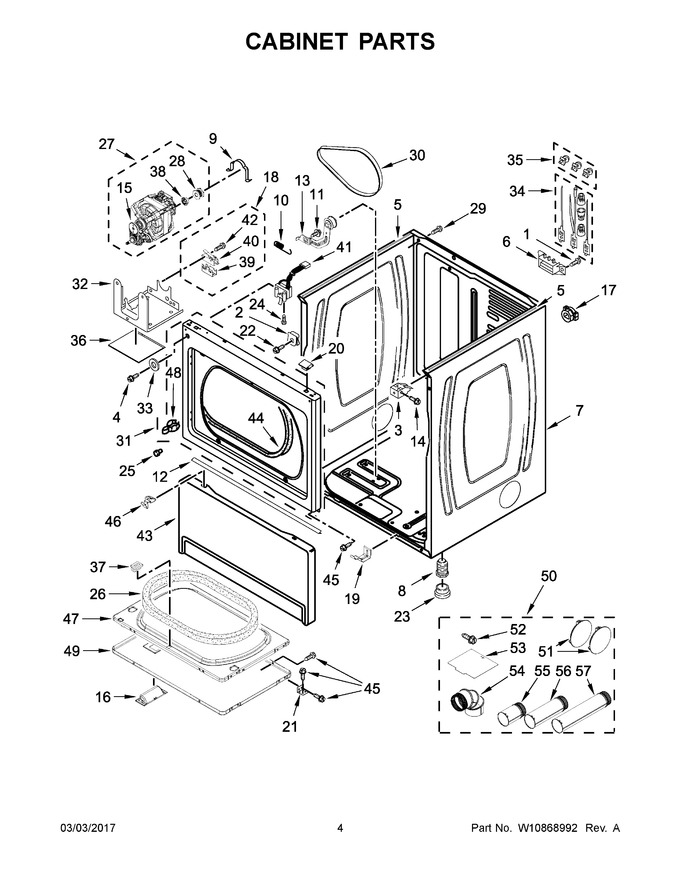

03 - Cabinet Parts


04 - Bulkhead Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP308685		Screw   (Replaces: 3393008)			Immediately	$ 7.08
2	WPW10131123		Nut, "u   (Replaces: W10131123)				$ 7.29
3	3391846		Clip, Front Panel				$ 19.99
4	WP3400077		Screw   (Replaces: 3400077)				$ 6.56
5	WP8318396A		Seal, Foam   (Replaces: 8318396)				$ 35.74
6	WP3397659		Block, Terminal   (Replaces: 3397659)				$ 21.75
7	W11417441		Cabinet (white)   (Replaces: W10547697)				$ 396.15
8	49621		Foot, Dryer   (Replaces: 3392100)			Immediately	$ 7.70
9	WP660658		Clamp, Motor   (Replaces: 660658)				$ 7.40
10	WPW10446781		Spring, Idler   (Replaces: W10446781)			Immediately	$ 23.22
11	WP3389420		Screw   (Replaces: 3389420)				$ 7.76
12	W10576519		Seal, Deflector		Appelez-nous	-
13	WPW10344192		Assembly, Idler   (Replaces: W10344192)			Immediately	$ 85.11
14	681615		Screw   (Replaces: 3391915)				$ 13.11
15	WP3405160		Belt, Drive (blower Wheel)   (Replaces: 3405160)			Immediately	$ 33.29
16	W11209427		Handle, Door   (Replaces: W10116360)			Immediately	$ 71.59
17	W11704629		Relief, Strain (power Cord)   (Replaces: 8316644)		Appelez-nous	-
18	W11236387		Assembly, Switch   (Replaces: W10259136)		Appelez-nous	-
19	WPW10291934		Clip   (Replaces: W10291934)				$ 7.33
20	WP345670		Lock Top   (Replaces: 345670)			Immediately	$ 7.28
21	WPW10279703		Assembly, Hinge And Pin (silver)   (Replaces: W10279703)				$ 68.25
22	WP3395530		Screw   (Replaces: 697773)				$ 7.71
23	WP3391943		Boot, Foot   (Replaces: 3391943)				$ 7.39
24	WP3395530		Screw   (Replaces: 697773)				$ 7.71
25	693152		Bumper				$ 10.36
26	WP3390735		Seal, Door   (Replaces: 3390735)				$ 123.42
27	W11215537		Assembly, Motor 50 Hz.   (Replaces: W10747112)				$ 504.43
28	W10167237		Pulley		Appelez-nous	-
29	WP681414		Screw   (Replaces: 343641)			Immediately	$ 7.62
30	WPW10131172		Belt, Drive   (Replaces: W10131172)			Immediately	$ 40.19
31	W10234293		Panel, Front		Appelez-nous	-
32	W11676491		Bracket, Motor   (Replaces: W10135695)				$ 121.16
33	3391948		Washer		Appelez-nous	-
34	279318		Terminal, Brass And Tinned (includes Terminal Block Screw Kit)			Immediately	$ 95.44
35	279393		Screw Kit, Terminal Block			Immediately	$ 50.09
36	W11113654		Motor, Sound Pad   (Replaces: W10836094)				$ 20.96
37	279570		Assembly, Door Catch   (Replaces: 3392538)			Immediately	$ 8.00
38	WP3393657		Restrainer, Belt   (Replaces: 3393657)			Immediately	$ 125.17
39	8564011		Bracket, Switch				$ 17.17
40	W10410873		Assembly, Switch Actuator		Appelez-nous	-
41	WPW10237959		Switch, Door   (Replaces: W10237959)			Immediately	$ 56.37
42	3400934		Assembly, Screw And Insulator		Appelez-nous	-
43	WP3406797		Panel, Toe (white)   (Replaces: 697215)				$ 225.23
44	WP3387242		Seal, Front Panel   (Replaces: 3387242)			Immediately	$ 28.28
45	WP488627		Screw   (Replaces: 342055)				$ 7.30
46	WP3388229		Retainer   (Replaces: 3388229)			Immediately	$ 7.61
47	280083		Door, Rear   (Replaces: W10323061)				$ 271.23
48	279570		Strike, Door   (Replaces: 696144)			Immediately	$ 8.00
49	W11663440		Door, Front   (Replaces: W10322546)				$ 245.11
50	W10470674		Dryer Exhaust Kit (for Side & Bottom Venting), Kit, Exhaust Vent   (Replaces: 279818)			Immediately	$ 76.75
51	W10470674		Multivent Plug (white)   (Replaces: 697750)			Immediately	$ 76.75
52	WP488729		Screw   (Replaces: 488729)			Immediately	$ 7.45
53	WPW10354249		Plate, Cover   (Replaces: 3394331)				$ 8.47
54	WPW10416072		Elbow   (Replaces: 49026)				$ 25.34
55	WPW10331278		Pipe, Exhaust (short)   (Replaces: 8563750)				$ 74.61
56	WP8563747		Pipe, Exhaust (medium)   (Replaces: 8563747)				$ 86.36
57	WP8563749		Pipe, Exhaust (long)   (Replaces: 8563749)				$ 83.92
NI	49621		Foot, Optional (extended Length Package Of 2) (not Included)   (Replaces: 279810)			Immediately	$ 7.70
