01 - Cover Sheet

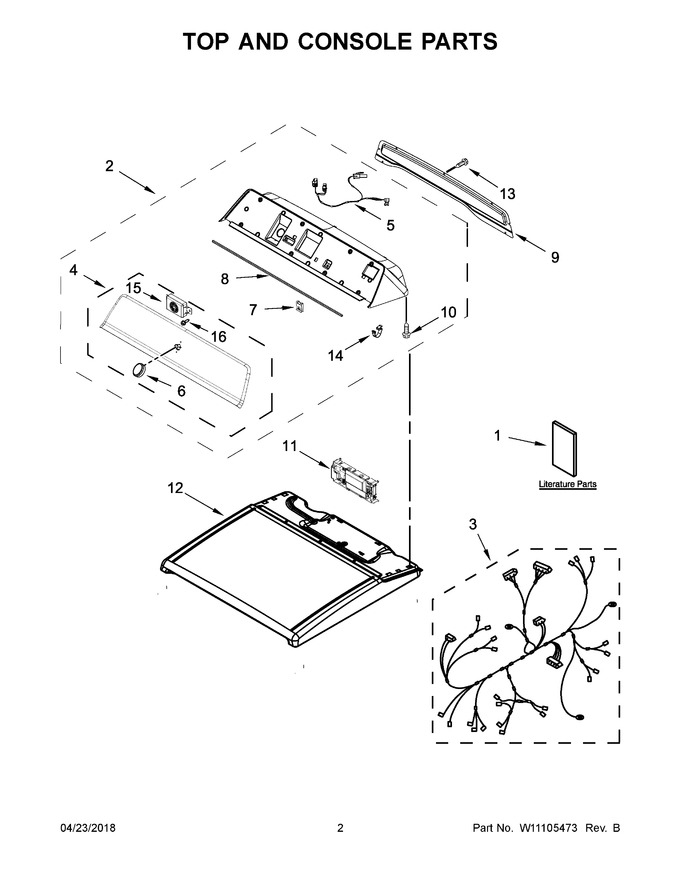

02 - Top And Console Parts


03 - Cabinet Parts


04 - Bulkhead Parts


05 - Door Parts


06 - Burner Assembly Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10807523		Installation Instructions		Appelez-nous	-
2	W10806898		Console Assembly (complete) (white)		Appelez-nous	-
3	W10777444		Wiring Harness		Appelez-nous	-
4	W10791328		Fascia		Appelez-nous	-
5	W10593673		Harness, User Interface				$ 38.57
6	W10853910		Assembly, Control Knob (chrome)   (Replaces: W10727011)				$ 53.94
7	W11213336		Nut, "u   (Replaces: W10298336)				$ 8.13
8	W11721376		Seal, Console   (Replaces: W10726632)		Appelez-nous	-
9	W10622402		Panel, Rear Console		Appelez-nous	-
10	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 8.58
11	W10802461		Control, Electronic   (Replaces: W10771992)				$ 385.94
12	W11227373		Top (white)   (Replaces: W10508981)				$ 255.61
13	W10704731		Screw		Appelez-nous	-
14	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 16.59
15	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 80.93
16	WP9740849		Screw   (Replaces: 9740849)				$ 7.30
1A	W10810364		Use And Care Guide		Appelez-nous	-
1B	W10777449		Tech Sheet		Appelez-nous	-
1C	W10810385		Quickstart Guide		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
