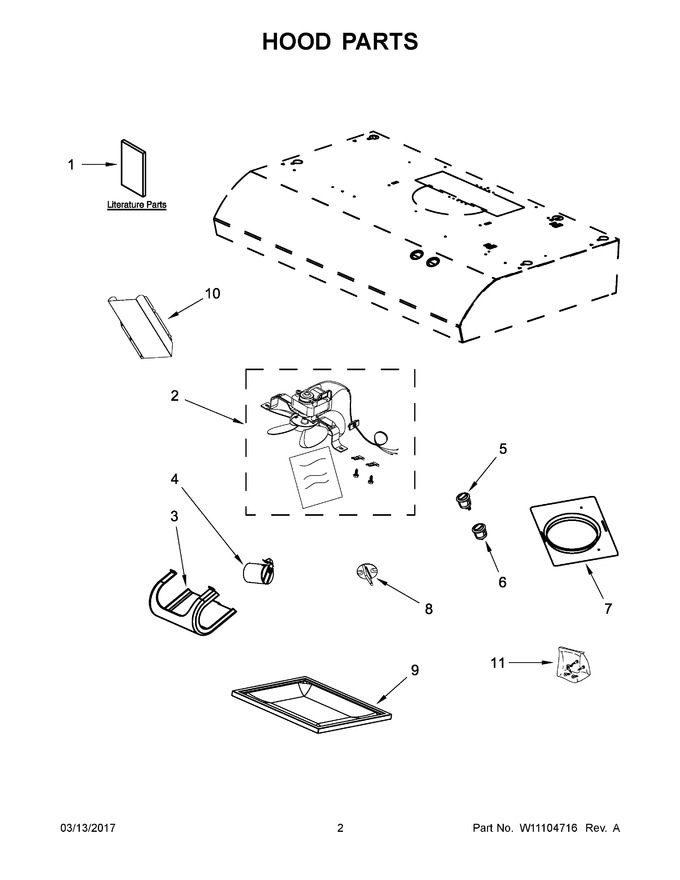

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10722650 | Guide, Use And Care |
|
- | |||||
| 2 | W11105126 | Assembly, Fan And Motor (Replaces: W11104672) |
|
$ 313.19 | |||||
| 3 | W10386342 | Cover, Lamp |
|
$ 31.42 | |||||
| 4 | W10910124 | Socket, Bulb |
|
$ 75.21 | |||||
| 5 | W10394523 | Switch, Light (white) |
|
- | |||||
| 6 | W10394557 | Switch, Fan (white) |
|
$ 74.80 | |||||
| 7 | W10386343 | Plate, Duct |
|
$ 161.08 | |||||
| 8 | W10386347 | Latch, Filter |
|
$ 13.28 | |||||
| 9 | W10395127 | Filter, Grease |
|
Immediately | $ 28.89 | ||||
| 10 | W11104673 | Cover, Junction Box |
|
$ 45.40 | |||||
| 11 | W10507239 | Kit, Mounting |
|
- | |||||
| NI | W10613691 | Accessories, Power Cord Kit (Replaces: W10355452) |
|
$ 52.92 |
