SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts

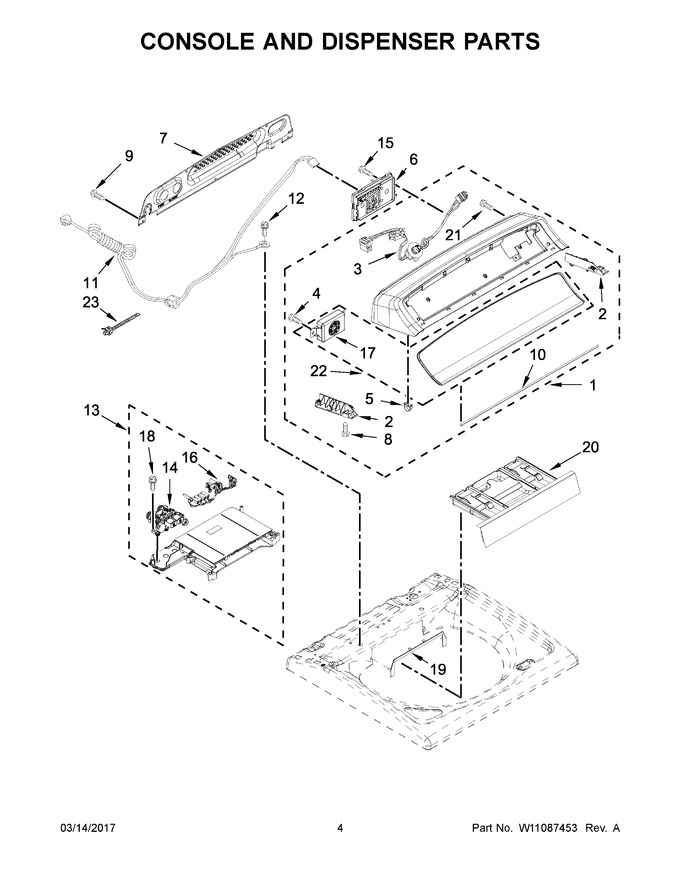

03 - Console And Dispenser Parts


04 - Motor, Basket And Tub Parts


05 - Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11106748		Console (white)   (Replaces: W11034998)				$ 569.28
2	W10631630		Console Mount (left)				$ 138.27
3	W10915405		Harness, Ui   (Replaces: W10596717)				$ 10.05
4	W10728156		Screw		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
6	W11030464		Control Unit Assembly, Machine And Motor		Appelez-nous	-
7	W10611544		Panel, Console Rear Cover				$ 307.11
8	W10853898		Screw   (Replaces: W10219342)			Immediately	$ 7.36
9	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
10	W10726624		Seal, Console				$ 29.03
11	W10859955		Cord, Power   (Replaces: W10479821)				$ 74.46
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
13	W11173597		Assembly, Housing   (Replaces: W10854689)				$ 342.02
14	W11220230		Valve, Water Inlet   (Replaces: W10758829)			Immediately	$ 156.74
15	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
16	W11458657		Harness, Valve   (Replaces: W10849300)				$ 26.46
17	W11123146		Assembly, Speaker   (Replaces: W10568405)				$ 72.84
18	WPW10109200		Screw   (Replaces: 97787)			Immediately	$ 7.92
19	W10601845		Assembly, Dispenser Bezel (white)   (Replaces: W10601841)				$ 38.33
20	W10861667		Assembly, Dispenser Drawer (white)   (Replaces: W10794820)			Immediately	$ 101.46
21	W11311945		Screw   (Replaces: 12990204)				$ 13.25
22	W10870765		Assembly, Console Fascia		Appelez-nous	-
23	WPW10298887		Cable Tie   (Replaces: W10298887)				$ 7.18
2A	W10631629		Console Mount (right)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
