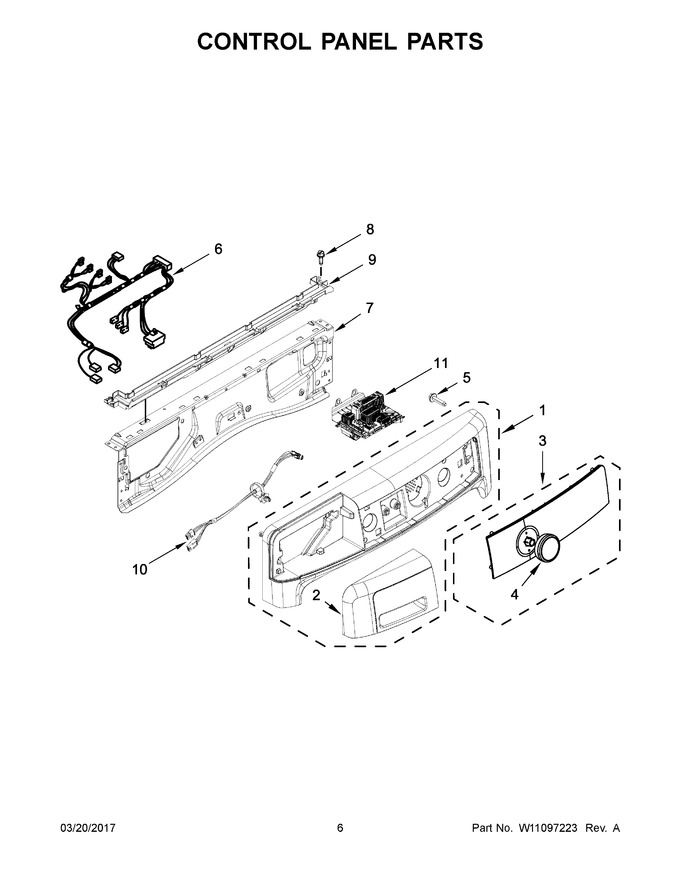

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Top And Cabinet Parts
03 - Door Parts
04 - Control Panel Parts
05 - Dispenser Parts
06 - Tub And Basket Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11218414 | Assembly, Console (white) (Replaces: W11023842) |
|
- | |||||
| 2 | W11218414 | Handle, Drawer (white) (Replaces: W11023854) |
|
- | |||||
| 3 | W11102316 | Assembly, Iml (white) (Replaces: W11023870) |
|
- | |||||
| 4 | W10875909 | Assembly, Timer Knob (chrome) (Replaces: W10783726) |
|
Immediately | $ 47.69 | ||||
| 5 | W10589828 | Screw |
|
$ 13.76 | |||||
| 6 | W11229597 | Harness, Main (upper) (Replaces: W10685626) |
|
Immediately | $ 153.39 | ||||
| 7 | W10208197 | Bracket, Console |
|
$ 157.09 | |||||
| 8 | WP489464 | Screw (Replaces: W10142290) |
|
Immediately | $ 7.54 | ||||
| 9 | WPW10653575 | Channel, Water (Replaces: W10653575) |
|
$ 81.85 | |||||
| 10 | WPW10442440 | Harness, Ui (Replaces: W10442440) |
|
$ 25.69 | |||||
| 11 | W10885567 | Control Unit, Appliance |
|
- |
