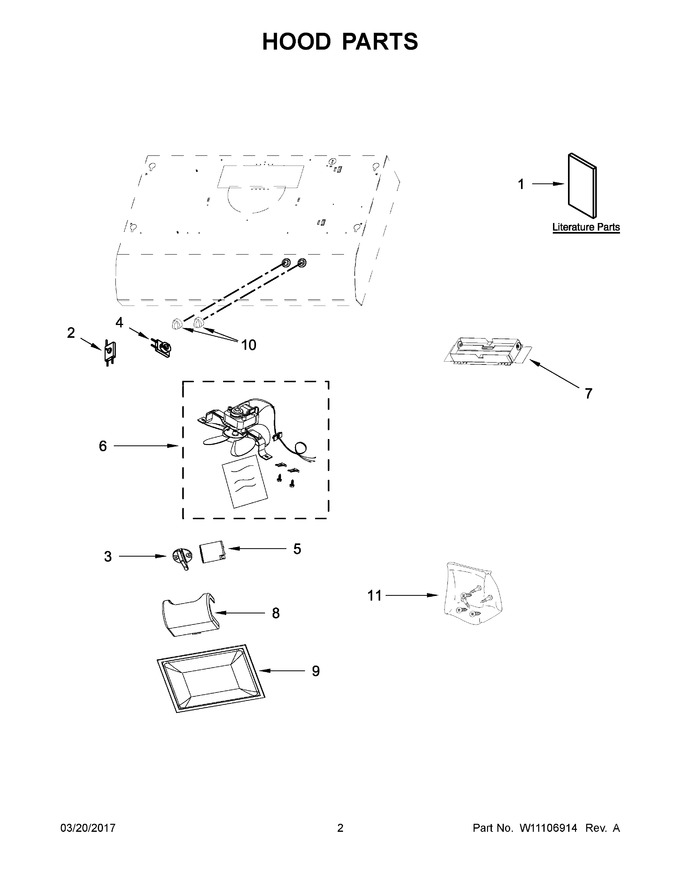

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10646404 | Use And Care Guide |
|
- | |||||
| 2 | W11206737 | Switch, Lights (Replaces: W10395074) |
|
Immediately | $ 14.60 | ||||
| 3 | W10386347 | Latch, Filter |
|
$ 13.28 | |||||
| 4 | WPW10395126 | Switch, Fan (Replaces: W10395126) |
|
$ 134.50 | |||||
| 5 | W11106830 | Socket, Bulb |
|
$ 67.29 | |||||
| 6 | WPW10395033 | Motor/fan Assembly (Replaces: W10395033) |
|
$ 309.81 | |||||
| 7 | WPW10291572 | Damper, Hood (Replaces: W10291572) |
|
$ 176.02 | |||||
| 8 | W11230100 | Cover, Lamp (Replaces: W10910125) |
|
$ 19.77 | |||||
| 9 | W10395127 | Filter, Grease |
|
Immediately | $ 28.89 | ||||
| 10 | W10395036 | Knob (white) |
|
$ 15.10 | |||||
| 11 | W10665195 | Hardware, Installation (Replaces: W10910134) |
|
$ 148.64 | |||||
| 10A | W10395010 | Knob (black) |
|
$ 19.23 | |||||
| NI | W10388168 | Accessories, 7" Round Mounting Plate |
|
$ 37.92 | |||||
| NI | W10613691 | Accessories, Power Cord Kit (Replaces: W10355452) |
|
$ 52.92 | |||||
| NI | 31462A | Accessories, Cleaner, Stainless Steel |
|
- | |||||
| NI | W10355450 | Accessories, Charcoal Filter (3 Pack) |
|
$ 44.64 | |||||
| NI | W10355451 | Accessories, 7" Round Damper |
|
$ 42.50 |
