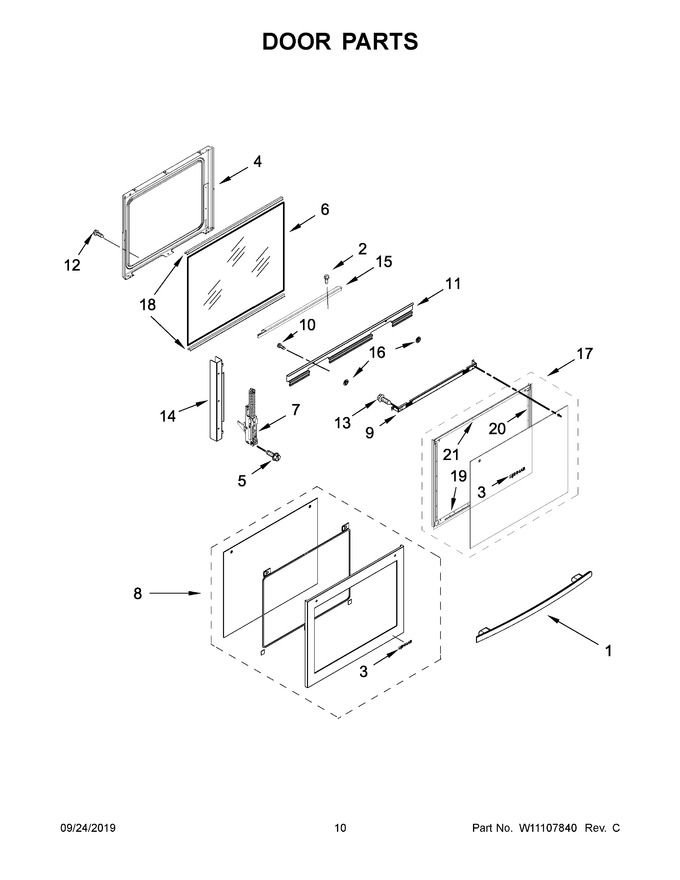

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10550998		Assembly, Door Handle (black)		Appelez-nous	-
2	W11245710		Screw   (Replaces: 9780274)			Immediately	$ 13.28
3	WPW10214168		Badge (black)   (Replaces: W10190724)				$ 77.36
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 301.54
5	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
6	W11339500		Glass, Inner   (Replaces: W11223202)				$ 154.05
7	W10885517		Hinge, Slow Close (for Black Models)				$ 100.59
8	WPW10634268		Assembly, Outer Door (stainless)   (Replaces: W10634268)				$ 342.68
9	W10541911		Bracket, Glass Upper Handle			Immediately	$ 35.93
10	WP355214		Screw   (Replaces: W10327235)			Immediately	$ 7.92
11	W10813140		Rail, Horizontal Support			Immediately	$ 159.49
12	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
13	WP8533988		Screw   (Replaces: W11091878)			Immediately	$ 7.90
14	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 68.57
15	W11251351		Scoop, Door (black)   (Replaces: W10613791)			Immediately	$ 125.70
16	W11676355		Washer, Door   (Replaces: W10319024)			Immediately	$ 13.33
17	WPW10541892		Glass, Outer Door (black)   (Replaces: W10541892)				$ 371.45
18	W11673273		Spacer, Glass   (Replaces: W10813142)			Immediately	$ 27.94
19	W10541912		Bracket, Lower Glass		Appelez-nous	-
20	W10634236		Trim, Door Side (black)		Appelez-nous	-
21	W10634234		Door, Trim Top		Appelez-nous	-
15A	W11025120		Scoop, Door (stainless)   (Replaces: W10551024)				$ 110.71
1A	W11195001		Assembly, Door Handle (stainless)   (Replaces: W10551013)				$ 206.51
3A	WPW10214168		Badge (stainless)   (Replaces: W10214168)				$ 77.36
7A	W11226493		Hinge, Slow Close (for Stainless Models)   (Replaces: W10885516)				$ 103.49
