01 - Cover Sheet

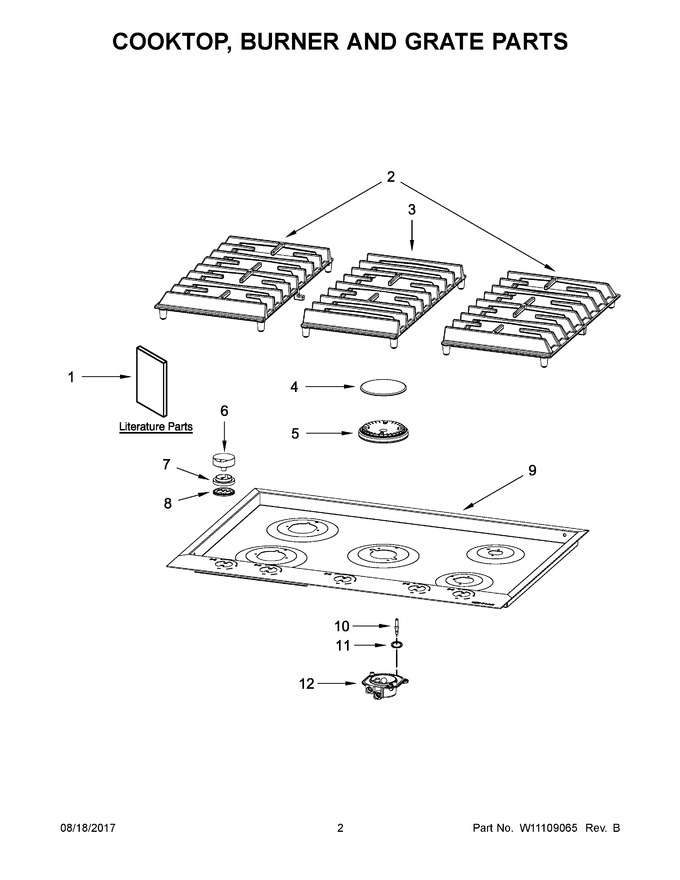

02 - Cooktop, Burner And Grate Parts
03 - Burner Box, Gas Valves And Switch Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11032277 | Installation Instructions |
|
- | |||||
| 2 | W10689381 | Grate, Burner (side) (Replaces: W11109142) |
|
$ 360.91 | |||||
| 3 | W10689383 | Grate, Burner (center) (Replaces: W11109143) |
|
$ 356.33 | |||||
| 4 | W10691232 | Cap, Burner (black (large) (left Front, Left Rear)) |
|
Immediately | $ 156.42 | ||||
| 5 | W11043462 | Base, Burner (large) (left Front, Left Rear) |
|
Immediately | $ 199.08 | ||||
| 6 | W11045335 | Knob (Replaces: W11042532) |
|
Immediately | $ 83.51 | ||||
| 7 | W10618500 | Bezel, Knob (stainless) |
|
Immediately | $ 147.59 | ||||
| 8 | W11042557 | Bezel, Illuminator |
|
Immediately | $ 57.12 | ||||
| 9 | W11778401 | Cooktop, Main (Replaces: W11043541) |
|
$ 1,080.48 | |||||
| 10 | W10617810 | Electrode (250mm) (left Front) |
|
Immediately | $ 73.47 | ||||
| 11 | W10571930 | Clip, Electrode |
|
Immediately | $ 22.80 | ||||
| 12 | WPW10571492 | Holder, Orifice (155 Mm) (left Front, Left Rear) (Replaces: W10571492) |
|
$ 77.76 | |||||
| 10A | WPW10571489 | Electrode (450mm) (left Rear) (Replaces: W10571489) |
|
$ 55.33 | |||||
| 10B | W10692369 | Electrode (300mm) (center) (Replaces: W11109147) |
|
$ 143.03 | |||||
| 10C | W10692370 | Electrode (180mm) (right Front) (Replaces: W11109148) |
|
$ 85.67 | |||||
| 10D | W10617808 | Electrode (395mm) (right Rear) (Replaces: W11109150) |
|
$ 86.43 | |||||
| 12A | W10759294 | Holder, Orifice (dual, 195mm) (center) (Replaces: W11109151) |
|
$ 281.00 | |||||
| 12B | WPW10571491 | Holder Orifice (132mm) (right Front) (Replaces: W10571491) |
|
$ 67.61 | |||||
| 12C | W10691684 | Holder, Orifice (s2) (right Rear) |
|
$ 87.96 | |||||
| 1A | W11032276 | Use And Care Guide |
|
- | |||||
| 1B | W11032278 | Lp Conversion Instructions |
|
- | |||||
| 4A | W10691282 | Cap, Burner (black (dual) (center)) |
|
$ 144.53 | |||||
| 4B | W10691230 | Cap, Burner (black (medium) (right Front)) |
|
$ 119.10 | |||||
| 4C | W10691229 | Cap, Burner (black (small) (right Rear)) |
|
$ 95.63 | |||||
| 4D | W10691233 | Cap, Burner (black (melt Small Burner)) |
|
$ 340.33 | |||||
| 5A | W11043467 | Base, Burner (dual) (center) |
|
$ 346.43 | |||||
| 5B | W11043540 | Base, Burner (medium) (right Front) |
|
$ 153.99 | |||||
| 5C | W11043517 | Base, Burner (small) (right Rear) |
|
$ 133.55 | |||||
| NI | W10686634 | Kit, Orifice Lp Conversion |
|
$ 286.79 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
