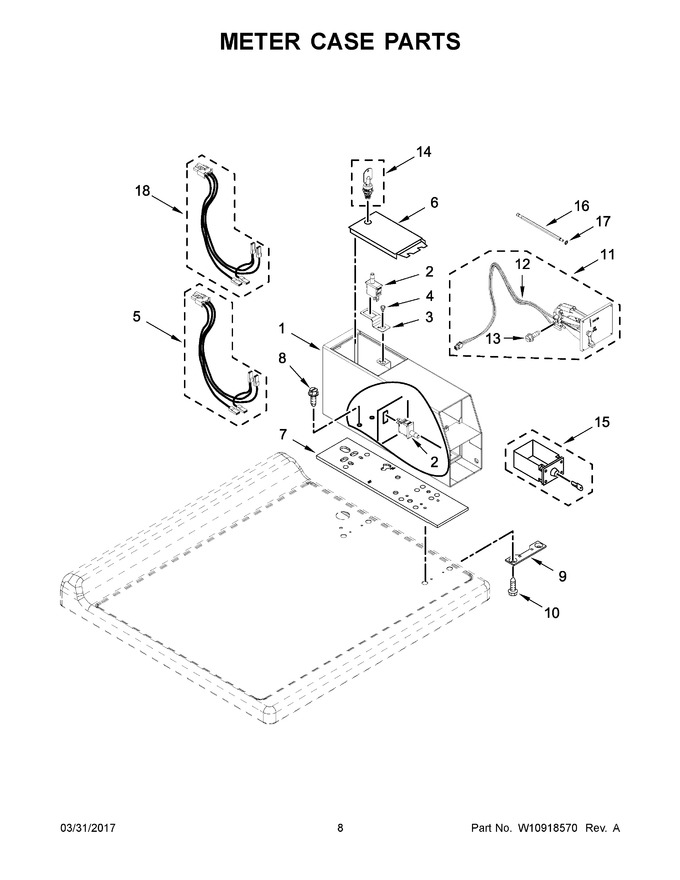

04 - Control Panel Parts


05 - Meter Case Parts


06 - Dispenser Parts


07 - Tub And Basket Parts


08 - Pump And Motor Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10171128		Meter Case   (Replaces: W10171128)				$ 323.44
2	WPW10131838		Switch, Vault Service Door   (Replaces: W10131838)				$ 22.60
3	W11204533		Bracket, Service Switch   (Replaces: W10133508)		Appelez-nous	-
4	WPW10139210		Screw   (Replaces: W10139210)				$ 7.23
5	W11096090		Harness, Wire (service Switch)   (Replaces: W10211244)				$ 12.06
6	W11283272		Assembly, Service Door   (Replaces: 3351136)				$ 100.05
7	W10137448		Cushion, Meter Case		Appelez-nous	-
8	W11715721		Bolt   (Replaces: 3349065)				$ 6.73
9	3347825		Plate, Mounting		Appelez-nous	-
10	W10841059		Screw   (Replaces: 98445)		Appelez-nous	-
11	WPW10133242		Assembly, Single Coin Drop   (Replaces: W10133242)				$ 126.51
12	WPW10247389		Sensor Assembly, Coin Optic   (Replaces: W10130178)			Immediately	$ 109.53
13	WP3395530		Screw   (Replaces: W10142655)				$ 7.71
14	W11315637		777 Lock And Key, Complete   (Replaces: 8316526)			Immediately	$ 68.71
15	W11190039		Money Box W/lock   (Replaces: 8316525)			Immediately	$ 186.49
16	WPW10137319		Bolt, Hex Bar   (Replaces: W10137319)				$ 76.83
17	W11170663		Washer, Lock   (Replaces: W10068270)				$ 4.09
18	W10847806		Harness, Wire (sensor Switch)   (Replaces: W10139456)				$ 107.54
