Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 LW10839553 Refrigerator Door (includes Item 5) (white)   (Replaces: W10839553) Appelez-nous -
2 WPW10324760 Assembly, Utility Compartment   (Replaces: W10324760) Special Order $ 77.04

3 WPW10296816 Screw   (Replaces: W10296816) Special Order $ 7.25

4 W11223831 Door Bin, Gallon   (Replaces: W10672344) Special Order $ 144.92

5 WPW10247884 Door Gasket, Magnetic (beige)   (Replaces: W10247884) Special Order $ 290.67

6 W10918556 Handle (white)   (Replaces: W10891380) Special Order $ 170.59

7 WP2182181 Thimble, Top   (Replaces: 2200086) Special Order $ 7.34

8 WPW10661886 Screw   (Replaces: W10460893) In-Stock Immediately $ 11.59

9 WPW10248011 Door Closer, Upper Cam (white)   (Replaces: W10248011) Special Order $ 11.64

10 WPW10296804 Screw   (Replaces: W10296804) Special Order $ 10.25

11 W11037957 Bracket, Door Stop   (Replaces: W10888898) Special Order $ 72.22

12 WPW10612926 Badge (chrome)   (Replaces: W10612926) In-Stock Immediately $ 35.64

13 W11203895 Door Bin, Shallow   (Replaces: W10672337) Special Order $ 140.02

14 W10789144 Cover, Door Stop (white) Special Order $ 17.44

14A W10789145 Cover, Door Stop (black) Special Order $ 17.43

14B W11661847 Cover, Door Stop (grey)   (Replaces: W10789147) In-Stock Immediately $ 28.54

1A LW10839523 Refrigerator Door (includes Item 5) (black)   (Replaces: W10839523) Appelez-nous -
1B LW10839084 Refrigerator Door (includes Item 5) (stainless)   (Replaces: W10839084) Special Order $ 815.24

5A WPW10249912 Door Gasket, Magnetic (black)   (Replaces: W10249912) Special Order $ 296.26

5B W10355582 Door Gasket, Magnetic (grey)   (Replaces: W10249916) In-Stock Immediately $ 307.13

6A W10918557 Handle (black)   (Replaces: W10891379) Special Order $ 170.59

6B W10879677 Handle (stainless)   (Replaces: W10838130) In-Stock Immediately $ 193.88

9A WPW10257201 Door Closer, Upper Cam (black)   (Replaces: W10257201) Special Order $ 11.64

9B WPW10257203 Door Closer, Upper Cam (grey)   (Replaces: W10257203) Special Order $ 11.66


    View Diagram in Separate Window     Print Icon   Print Part List

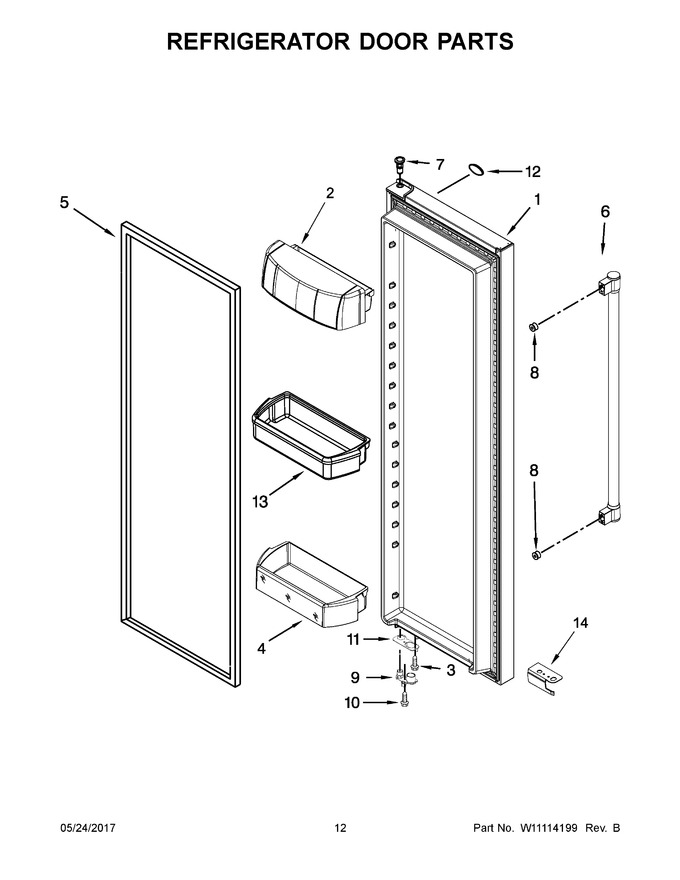

Diagram for MSS26C6MFB00
