SELECT A DIAGRAM
New Model Search:

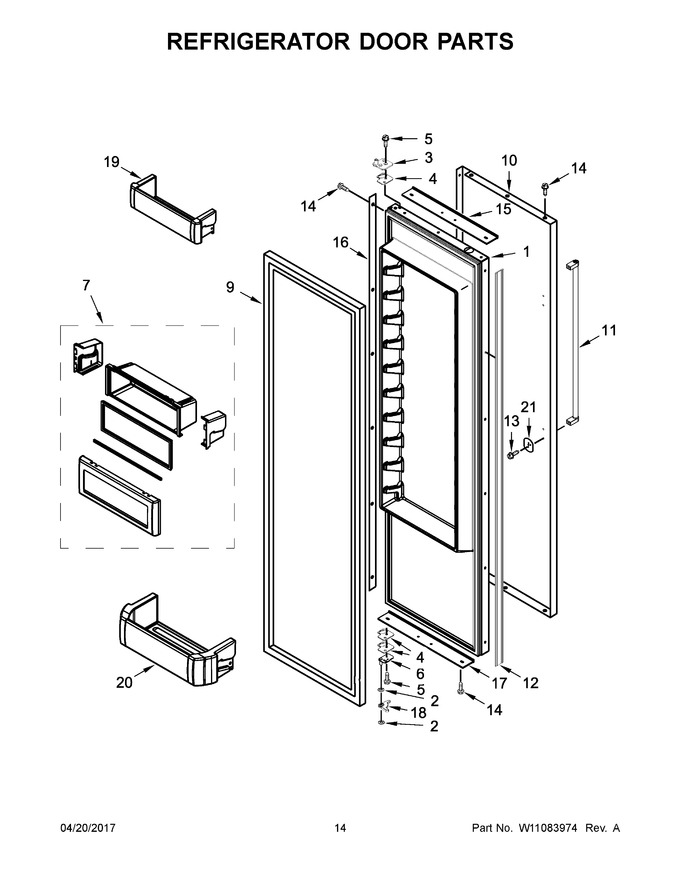

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10800783 | Door, Refrigerator (includes Door Gasket) (Replaces: W10761879) |
|
$ 1,487.93 | |||||
| 2 | WP2006346 | Washer, Extension Arm (Replaces: 2006346) |
|
Immediately | $ 10.58 | ||||
| 3 | W11673500 | Assembly, Hinge (top) (Replaces: W10485980) |
|
Immediately | $ 117.33 | ||||
| 4 | W11673500 | Spacer, Door Hinge Bottom (Replaces: 2316804) |
|
Immediately | $ 117.33 | ||||
| 5 | W11474472 | Screw (Replaces: W10162602) |
|
Immediately | $ 7.77 | ||||
| 6 | 2302878 | Assembly, Hinge (bottom) |
|
Immediately | $ 81.91 | ||||
| 7 | W11348580 | Assembly, Utility Bin (Replaces: W10798552) |
|
Immediately | $ 162.99 | ||||
| 9 | W11625077 | Gasket, Door (grey) (Replaces: W10760886) |
|
$ 347.32 | |||||
| 10 | W11797632 | Skin, Door (black Stainless ) (Replaces: W10756465) |
|
- | |||||
| 11 | W10783284 | Handle, Door (stainless) (Replaces: W10541592) |
|
$ 195.04 | |||||
| 12 | W10758113 | Spacer, Handle Side Door |
|
- | |||||
| 13 | WP308544 | Screw (Replaces: 308544) |
|
Immediately | $ 7.47 | ||||
| 14 | W10851443 | Screw (black) (Replaces: 8281252) |
|
Immediately | $ 7.32 | ||||
| 15 | W10761897 | Spacer, Door Skin (top) |
|
- | |||||
| 16 | W10756209 | Spacer, Hinge Side Door |
|
- | |||||
| 17 | W10761937 | Spacer, Door Skin (bottom) |
|
- | |||||
| 18 | W11700297 | Cover, Bottom Gap (Replaces: W10482554) |
|
Immediately | $ 34.45 | ||||
| 19 | W11752086 | Bin, Shallow Door (Replaces: W10323600) |
|
$ 61.37 | |||||
| 20 | W10323748 | Bin, Gallon Door |
|
$ 109.60 | |||||
| 21 | W10127710 | Plate, Handle Door |
|
Immediately | $ 23.35 | ||||
| 10A | W11797631 | Skin, Door (stainless ) (Replaces: W10756464) |
|
$ 1,472.35 | |||||
| 14A | WP8281250 | Screw (stainless) (Replaces: 8281250) |
|
$ 10.28 |
