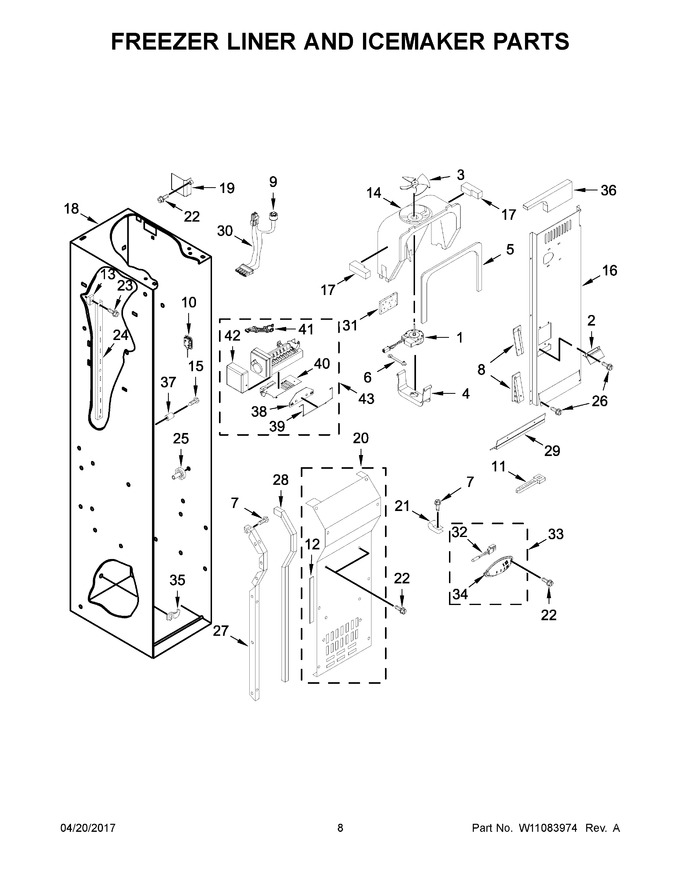

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11671461 | Motor, Fan (Replaces: W10436861) |
|
Immediately | $ 185.87 | ||||
| 2 | 2266801 | Deflector, Air |
|
- | |||||
| 3 | WP2169142 | Blade, Fan (Replaces: 2169142) |
|
Immediately | $ 39.07 | ||||
| 4 | W11671527 | Retainer, Fan Motor (Replaces: W10260421) |
|
$ 21.60 | |||||
| 5 | WP2302817 | Gasket, Scroll Assembly (Replaces: 2302817) |
|
$ 90.94 | |||||
| 6 | W11671528 | Grommet, Motor (Replaces: W10321090) |
|
- | |||||
| 7 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 8 | 2259465 | Wedge, Air Duct (left Hand) |
|
- | |||||
| 9 | WPW10160570 | Bi-metal, Defrost (Replaces: W10160570) |
|
Immediately | $ 125.08 | ||||
| 10 | W11683242 | Assembly, Led Module (Replaces: W10843339) |
|
Immediately | $ 300.56 | ||||
| 11 | WPW10339879 | Tie, Wire (Replaces: 2155774) |
|
$ 7.47 | |||||
| 12 | W10581989 | Gasket, Evaporator Cover |
|
- | |||||
| 13 | 2259445 | Support, Ladder |
|
- | |||||
| 14 | WP2182120 | Scroll, Fan (Replaces: 2182120) |
|
Immediately | $ 105.81 | ||||
| 15 | W11830745 | Screw (stainless) (Replaces: 8533929) |
|
- | |||||
| 16 | 2307778 | Duct, Air |
|
- | |||||
| 17 | 2209066 | Block, Fan Scroll (left Hand) |
|
- | |||||
| 18 | N/P | Liner (not Serviced) |
|
- | |||||
| 19 | 2259025 | Cover, Air Outlet |
|
$ 83.12 | |||||
| 20 | W10813095 | Assembly, Evaporator Cover |
|
- | |||||
| 21 | W10833902 | Clamp, Tube (Replaces: 2221070) |
|
$ 10.39 | |||||
| 22 | WP488729 | Screw (stainless) (Replaces: 487539) |
|
Immediately | $ 7.45 | ||||
| 23 | W10808292 | Screw |
|
- | |||||
| 24 | WP2259032 | Ladder, Shelf (Replaces: 2259032) |
|
$ 72.92 | |||||
| 25 | W11527119 | Assembly, Shelf Stud (Replaces: W10173127) |
|
- | |||||
| 26 | WPW10142283 | Screw (white) (Replaces: W10142283) |
|
$ 9.30 | |||||
| 27 | 2221107 | Rail, Evaporator Cover (left Hand) |
|
- | |||||
| 28 | 2220904 | Gasket, Evaporator Cover |
|
$ 21.20 | |||||
| 29 | 2302851 | Support, Air Duct |
|
- | |||||
| 30 | W11676572 | Harness, Bi-metal Wire (Replaces: W10482187) |
|
$ 118.07 | |||||
| 31 | W11553819 | Sealer, Insulation (Replaces: 2169104) |
|
Immediately | $ 13.29 | ||||
| 32 | WP2188820 | Thermistor (Replaces: 2188820) |
|
Immediately | $ 27.77 | ||||
| 33 | WP2317844 | Assembly, Thermistor (Replaces: 2317844) |
|
$ 10.24 | |||||
| 34 | WP2317844 | Cover, Thermistor (Replaces: 2317105) |
|
$ 10.24 | |||||
| 35 | 1112260 | Support, Evaporator |
|
- | |||||
| 36 | 2309284 | Deflector, Air Duct |
|
- | |||||
| 37 | 2266955 | Spacer, Ice Door |
|
- | |||||
| 38 | W11215550 | Extension, Shut Off Arm (Replaces: 2304353) |
|
Immediately | $ 48.65 | ||||
| 39 | W11807379 | Arm, Shut Off (Replaces: W10889530) |
|
Immediately | $ 56.89 | ||||
| 40 | WP2221231 | Shield, Heat (Replaces: 2221231) |
|
$ 80.40 | |||||
| 41 | W10508673 | Assembly, Ice Maker Wire |
|
$ 111.27 | |||||
| 42 | WPW10289690 | Cover, Icemaker (Replaces: W10289690) |
|
Immediately | $ 7.94 | ||||
| 43 | W11082613 | Assembly, Icemaker (Replaces: W10321136) |
|
$ 247.44 | |||||
| 17A | 2209482 | Block, Fan Scroll (right Hand) |
|
- | |||||
| 27A | 2259355 | Rail, Evaporator Cover (right Hand) |
|
$ 113.89 | |||||
| 8A | 2259464 | Wedge, Air Duct (right Hand) |
|
$ 85.84 |
