SELECT A DIAGRAM

01 - Cover Sheet

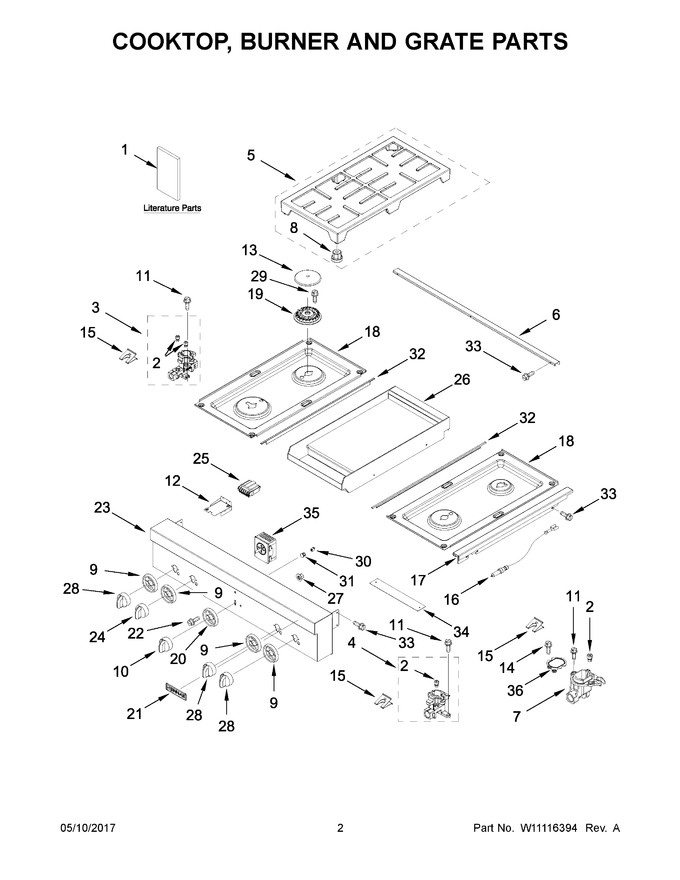

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403307		Sheet, Tech		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front, High)				$ 81.62
3	W10846622		Assembly, Orifice Holder (left Front)				$ 100.67
4	W10846623		Assembly, Orifice Holder (left Rear & Right Front)				$ 100.67
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 196.45
6	W10269217		Trim, Island				$ 277.64
7	W10883622		Holder, Orifice (aux) (right Rear)				$ 100.67
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 9.54
9	W10276494		Bezel				$ 72.38
10	W10145566		Knob, Griddle (stainless)			Immediately	$ 46.49
11	WP3177991		Screw (left Front, Left Rear, Right Front)   (Replaces: 3177991)			Immediately	$ 6.80
12	W10498407		Bracket, Spark Module				$ 71.07
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 124.37
14	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 13.28
15	W11684564		Spring, Electrode (left Front, Left Rear, Right Front)   (Replaces: W10827923)			Immediately	$ 11.39
16	W10146042		Electrode, Burner (right Rear)				$ 17.77
17	W10226014		Trim, Side (left)				$ 235.04
18	W10352968		Cooktop (black (right))				$ 303.53
18	W10352969		Cooktop (black (left))				$ 302.18
19	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 87.49
20	W10145453		Bezel, Griddle				$ 72.38
21	WPW10159578		Nameplate (stainless)   (Replaces: W10159578)			Immediately	$ 79.69
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	W11444545		Assembly, Console   (Replaces: W10779890)				$ 651.03
24	W10145568		Knob, Dual (stainless)				$ 47.63
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 346.50
26	W10625221		Module, Griddle				$ 1,311.59
27	7103P166-60		Nut				$ 16.70
28	W10145454		Knob, Single (stainless)				$ 42.25
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
30	W10116114		Light, Indicator Housing			Immediately	$ 84.21
31	W10294500		Lens, Indicator Light				$ 6.92
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
34	W10250433		Plate, Cover		Appelez-nous	-
35	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
36	8286930		Gasket, Orifice				$ 86.16
11A	W10491985		Screw (right Rear)   (Replaces: 3196160)			Immediately	$ 6.80
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 50.27
15A	8286863		Spring, Electrode (right Rear)				$ 69.23
17A	W10226015		Trim, Side (right)				$ 236.87
19A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 90.92
19B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 134.88
1A	W11090432		Guide, Use & Care		Appelez-nous	-
1B	W11090452		Instructions, Installation		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 87.99
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 81.62
2C	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 93.31
NI	W10763501		Harness, Ignition (includes 3 Igniters)				$ 171.27
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10116096		Harness, Griddle		Appelez-nous	-
NI	W10624584		Cord, Power				$ 170.61
NI	W10116174		Harness, Wire (cooktop)			Immediately	$ 143.47
NI	4450800		Screw, Grounding				$ 12.12
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10393255		Kit, Lp Conversion		Appelez-nous	-
NI	W10283996		Assembly, Injector		Appelez-nous	-
NI	W10856625		Reducer, Stem   (Replaces: W10340850)				$ 170.31

    View Diagram in Separate Window       Print Part List
