SELECT A DIAGRAM

01 - Cover Sheet

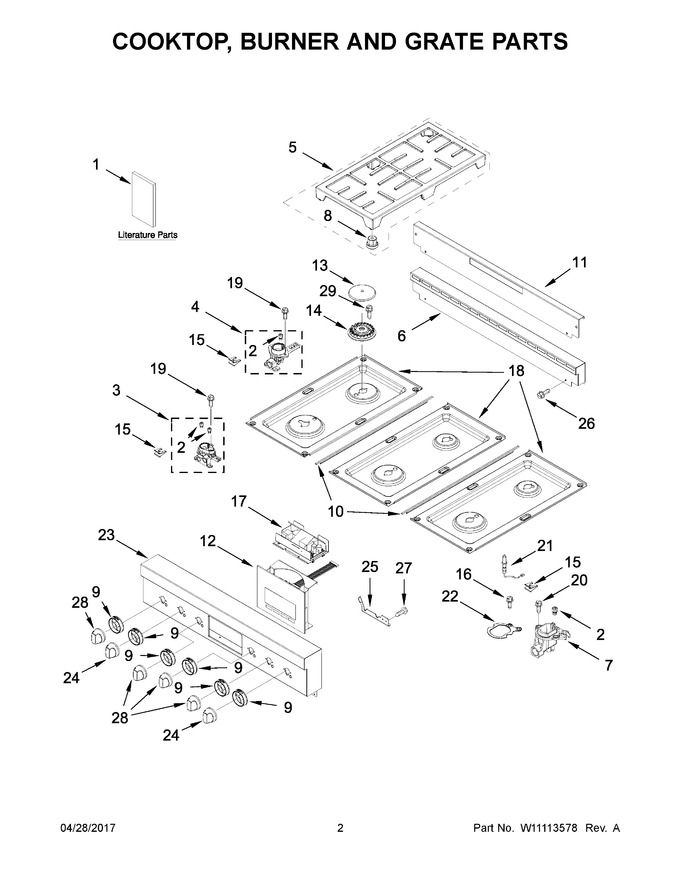

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Chassis Parts


05 - Oven Parts


06 - Venting Parts


07 - Oven Door Parts


08 - Internal Oven Parts


09 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10837388		Guide, Use & Care		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front & Right Front, High)				$ 81.62
3	W10846622		Assembly, Orifice Holder (left Front & Right Front)				$ 100.67
4	W10846623		Assembly, Orifice Holder (left Rear, Center Front, Right Rear)				$ 100.67
5	W11344501		Assembly, Grate (black)   (Replaces: W10276551)			Immediately	$ 196.45
6	W10323249		Trim, Island				$ 284.53
7	W10883622		Holder, Orifice (aux) (center Rear)				$ 100.67
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 10.02
9	W10276494		Bezel				$ 72.38
10	W10271524		T-strip				$ 191.11
11	W10323250		Island, Trim Insert				$ 163.61
12	W10464535		Assembly, Keypad				$ 1,125.19
13	WPW10256034		Cap, Burner (black (left Front & Right Front))   (Replaces: W10256034)				$ 124.37
14	W11106799		Spreader, Flame (left Front & Right Front)   (Replaces: W10879806)			Immediately	$ 91.87
15	W11684564		Spring, Electrode (all Except Center Rear)   (Replaces: W10827923)			Immediately	$ 11.39
16	W11676349		Screw, Burner Rail (m4) (center Rear)   (Replaces: 8286921)			Immediately	$ 13.28
17	WPW10145531		Assembly, Power Supply   (Replaces: W10145531)			Immediately	$ 290.91
18	W10352969		Cooktop (black (left))				$ 302.18
19	WP3177991		Screw (all Except Center Rear)   (Replaces: 3177991)			Immediately	$ 6.80
20	W10491985		Screw (center Rear)   (Replaces: 3196160)			Immediately	$ 6.80
21	W10854967		Electrode, Burner (center Rear)   (Replaces: 8286725)			Immediately	$ 43.54
22	8286930		Gasket, Orifice (center Rear)				$ 86.16
23	W11444940		Panel, Control   (Replaces: W10789953)				$ 749.30
24	W10145568		Knob, Dual (stainless)				$ 47.63
25	W10130760		Bracket, Moving Console (left)				$ 68.35
26	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
27	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
28	W10145454		Knob, Single (stainless)				$ 42.25
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
13A	WPW10256032		Cap, Burner (black (left Rear, Center Front, Right Rear))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (center Rear))   (Replaces: W10364463)			Immediately	$ 50.27
14A	WPW10256027		Spreader, Flame (left Rear, Center Front, Right Rear)   (Replaces: W10256027)			Immediately	$ 90.92
14B	WPW10282515		Spreader, Flame (center Rear)   (Replaces: W10282515)			Immediately	$ 134.88
15A	8286863		Spring, Electrode (center Rear)				$ 69.23
18A	W10352966		Cooktop (black (center))				$ 288.39
18B	W10352967		Cooktop (black (right))				$ 303.53
1A	W10821591		Instructions, Installation		Appelez-nous	-
1B	W10403308		Sheet, Tech (english)		Appelez-nous	-
1C	W10403309		Sheet, Tech (french)		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
25A	W10130759		Bracket, Moving Console (right)				$ 68.35
2A	W10819958		Orifice (1.2k) (left Front & Right Front, Low)   (Replaces: W10256132)				$ 87.99
2B	W11051480		Orifice (15k) (left Rear, Center Front, Right Rear)   (Replaces: W10364221)				$ 81.62
2C	W10791075		Orifice (5k) (center Rear)   (Replaces: W10282663)				$ 93.31
NI	W10830796		Wire, Electrode		Appelez-nous	-
NI	W10624584		Cord, Power				$ 170.61
NI	4450800		Screw, Grounding				$ 12.12
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	W11544575		Bracket, Anti-tip   (Replaces: W10253333)				$ 53.89
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
NI	W10344051		Harness, Communication				$ 119.99
NI	W10116168		Harness, Main			Immediately	$ 256.15
NI	W11379158		Harness, Ignition (includes 5 Ignitors)   (Replaces: W10763504)			Immediately	$ 173.42
NI	W10780278		Harness, Door Lock			Immediately	$ 86.28
NI	W10399620		Harness, Switch				$ 115.04
NI	W11675299		Tie, Cable   (Replaces: W10368807)				$ 12.18
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	W10830797		Wire, Electrode (orange)				$ 59.56

    View Diagram in Separate Window       Print Part List
