Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10225971 Kickplate Special Order $ 106.53

2 WP4449743 Screw   (Replaces: 4449743) Special Order $ 6.80

3 WPW10138054 Assembly, Roller   (Replaces: W10138054) Special Order $ 40.81

4 W10269197 Duct, Bottom Appelez-nous -
5 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

6 W10859931 Leveler   (Replaces: 9760860) Special Order $ 107.20

7 W10249333 Base, Leveling Leg Special Order $ 263.00

8 WP3196557 Screw   (Replaces: 3196537) In-Stock Immediately $ 7.16

9 WPW10250465 Panel, Side (left)   (Replaces: W10250465) Special Order $ 403.80

10 W10115869 Shaft, Long In-Stock Immediately $ 98.42

11 W10115793 Shaft, Short Special Order $ 68.25

12 489504 E-ring Special Order $ 6.66

9A W11333303 Panel, Side (right)   (Replaces: W10250464) Special Order $ 379.27


    View Diagram in Separate Window     Print Icon   Print Part List

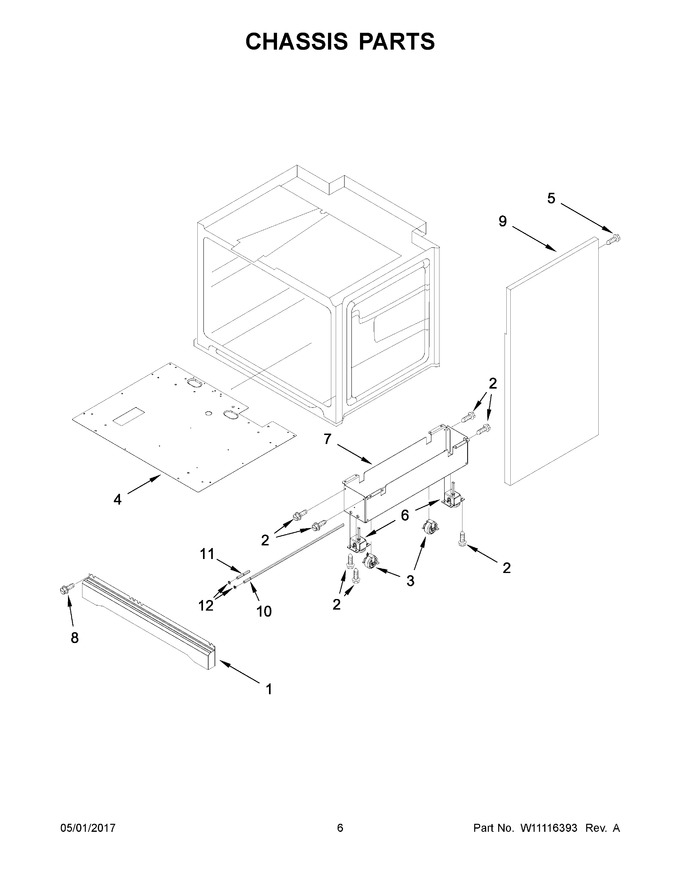

Diagram for KDRS407VSS05
