01 - Cover Sheet

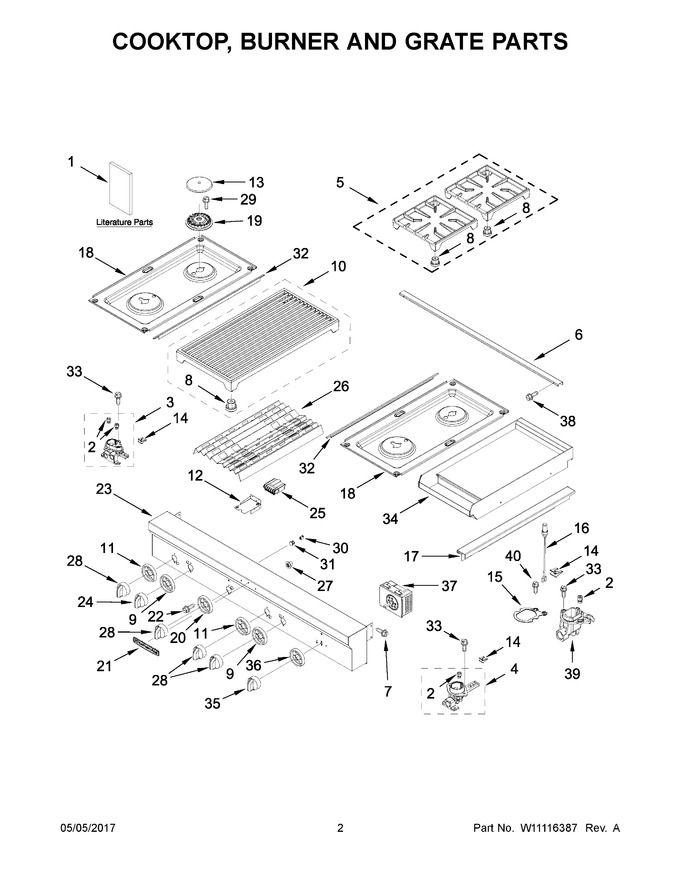

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10403307		Sheet, Tech		Appelez-nous	-
2	W10657945		Orifice (20k) (left Front, High)				$ 81.62
3	W10846622		Assembly, Orifice Holder (left Front)				$ 100.67
4	W10846623		Assembly, Orifice Holder (left Rear & Right Front)				$ 100.67
5	W11569347		Assembly, Grate (black)   (Replaces: W10221252)				$ 328.61
6	W10269216		Trim, Island		Appelez-nous	-
7	WP90767		Screw   (Replaces: 7101P426-60)			Immediately	$ 7.43
8	8186321		Bumper, Grate   (Replaces: 9760219)			Immediately	$ 9.54
9	W10261510		Bezel, Front				$ 49.60
10	W11241676		Grate, Grill   (Replaces: W10221254)				$ 347.86
11	W10261512		Bezel, Rear		Appelez-nous	-
12	W10498407		Bracket, Spark Module				$ 71.07
13	WPW10256034		Cap, Burner (black (left Front))   (Replaces: W10256034)				$ 124.37
14	W11684564		Spring, Electrode (left Front, Left Rear, Right Front)   (Replaces: W10827923)			Immediately	$ 11.39
15	8286930		Gasket, Orifice (right Rear)				$ 86.16
16	8286724		Electrode, Burner (right Rear)				$ 30.12
17	W10226012		Trim, Side (left)		Appelez-nous	-
18	W10352969		Cooktop (black (left))				$ 302.18
19	W11106799		Spreader, Flame (left Front)   (Replaces: W10879806)			Immediately	$ 87.49
20	W10261514		Bezel, Grill		Appelez-nous	-
21	W10201187		Nameplate				$ 82.78
22	WP74003976		Screw   (Replaces: 7101P500-60)				$ 6.80
23	W10910413		Assembly, Console   (Replaces: W10778225)				$ 371.32
24	W11244176		Knob, Dual (black)   (Replaces: W10250389)				$ 70.53
25	WPW10475147		Module, Spark   (Replaces: W10475147)			Immediately	$ 346.50
26	W10250469		Wave, Tray				$ 255.60
27	7103P166-60		Nut				$ 16.70
28	W11177673		Knob, Single (black)   (Replaces: W10250391)				$ 81.50
29	W11241230		Screw   (Replaces: W10673618)			Immediately	$ 13.26
30	W10116114		Light, Indicator Housing			Immediately	$ 84.21
31	W10116115		Lens, Indicator Light				$ 7.07
32	W10291193		Trim, L-strip		Appelez-nous	-
33	WP3177991		Screw (left Front, Left Rear, Right Front)   (Replaces: 3177991)			Immediately	$ 6.80
34	W10625221		Module, Griddle				$ 1,311.59
35	W10250390		Knob, Griddle				$ 33.28
36	W10261515		Bezel, Griddle		Appelez-nous	-
37	WPW10116113		Control, Griddle   (Replaces: W10116113)				$ 316.77
38	W11233072		Screw   (Replaces: 7101P338-60)			Immediately	$ 13.25
39	W10883622		Holder, Orifice (aux)				$ 100.67
40	W11676349		Screw, Burner Rail (m4)   (Replaces: 8286921)			Immediately	$ 13.28
13A	WPW10256032		Cap, Burner (black (left Rear & Right Front))   (Replaces: W10256032)			Immediately	$ 79.54
13B	WPW10364463		Cap, Burner (black (right Rear))   (Replaces: W10364463)			Immediately	$ 50.27
14A	8286863		Spring, Electrode (right Rear)				$ 69.23
17A	W10226013		Trim, Side (right)		Appelez-nous	-
18A	W10352966		Cooktop (black (center))				$ 288.39
19A	WPW10256027		Spreader, Flame (left Rear & Right Front)   (Replaces: W10256027)			Immediately	$ 90.92
19B	WPW10282515		Spreader, Flame (right Rear)   (Replaces: W10282515)			Immediately	$ 134.88
1A	W10849069		Guide, Use & Care		Appelez-nous	-
1B	W10899357		Instructions, Installation		Appelez-nous	-
1C	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1D	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	W10819958		Orifice (1.2k) (left Front, Low)   (Replaces: W10256132)				$ 87.99
2B	W11051480		Orifice (15k) (left Rear & Right Front)   (Replaces: W10364221)				$ 81.62
2C	W10791075		Orifice (5k) (right Rear)   (Replaces: W10282663)				$ 93.31
33A	W10491985		Screw (right Rear)   (Replaces: 3196160)			Immediately	$ 6.80
NI	W10116181		Harness, Grill				$ 100.79
NI	W10763505		Harness, Ignition (includes 3 Igniters)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	8287106		Clip, Wire   (Replaces: W10183556)		Appelez-nous	-
NI	16515		Clip, Harness   (Replaces: 313438)				$ 18.48
NI	4450800		Screw, Grounding				$ 12.12
NI	W10116174		Harness, Wire (cooktop)			Immediately	$ 143.47
NI	W10624584		Cord, Power				$ 170.61
NI	W10116096		Harness, Griddle		Appelez-nous	-
