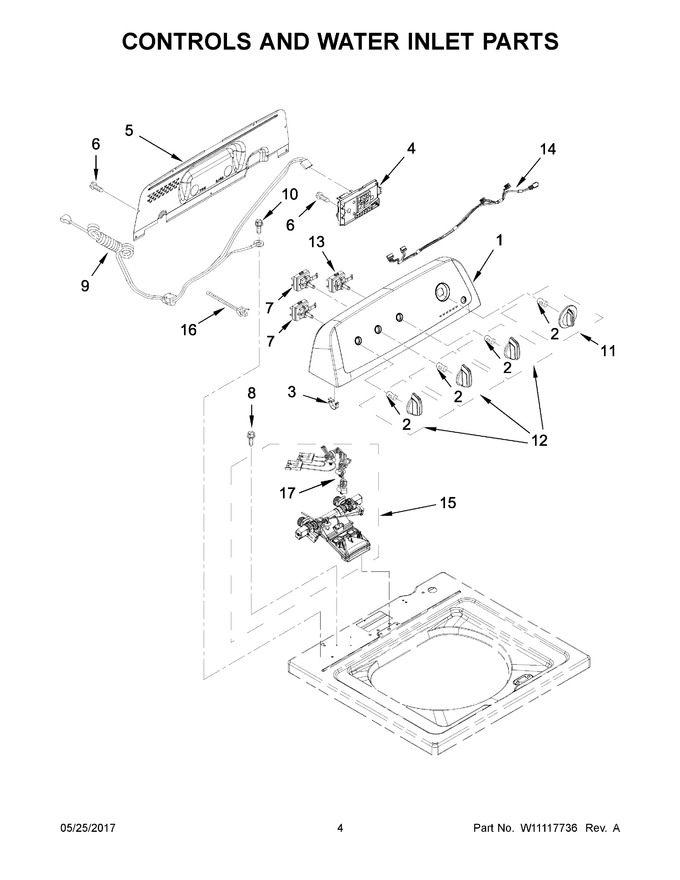

03 - Controls And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10774510		Panel, Console		Appelez-nous	-
2	WP8536939		Clip, Spring   (Replaces: 8536939)			Immediately	$ 7.38
3	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 14.93
4	W11120179		Control Unit Assembly, Machine & Motor   (Replaces: W11086726)				$ 462.94
5	W10409320		Panel, Console Rear Cover				$ 237.41
6	WP489069		Screw   (Replaces: 1157158)			Immediately	$ 7.56
7	WPW10414398		Switch, Rotary Encoder (4 Position)   (Replaces: W10414398)				$ 179.60
8	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 6.80
9	W10850133		Cord, Power   (Replaces: W10711784)			Immediately	$ 121.53
10	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 7.38
11	WPW10711289		Assembly, Timer Knob (white)   (Replaces: W10711289)			Immediately	$ 7.50
12	WPW10453947		Assembly, Control Knob (white)   (Replaces: W10453947)				$ 49.28
13	W11168256		Switch, Rotary Encoder (2 Position)   (Replaces: W10414381)			Immediately	$ 197.20
14	W10694671		Harness, Upper				$ 171.54
15	W11210461		Inlet Assembly, Water   (Replaces: W10869801)				$ 206.87
16	WPW10339879		Tie, Cable   (Replaces: W10339879)				$ 7.47
17	W10868094		Harness, Valve				$ 167.50
NI	W10446855		10a Cord Lock		Appelez-nous	-
NI	WPW10475423		10a Cord Adapter (type B)   (Replaces: W10475423)				$ 19.58
NI	N/P		Adapter, Power Cord		Appelez-nous	-
NI	WPW10476822		10a Cord Adapter (european)   (Replaces: W10476822)				$ 72.81
