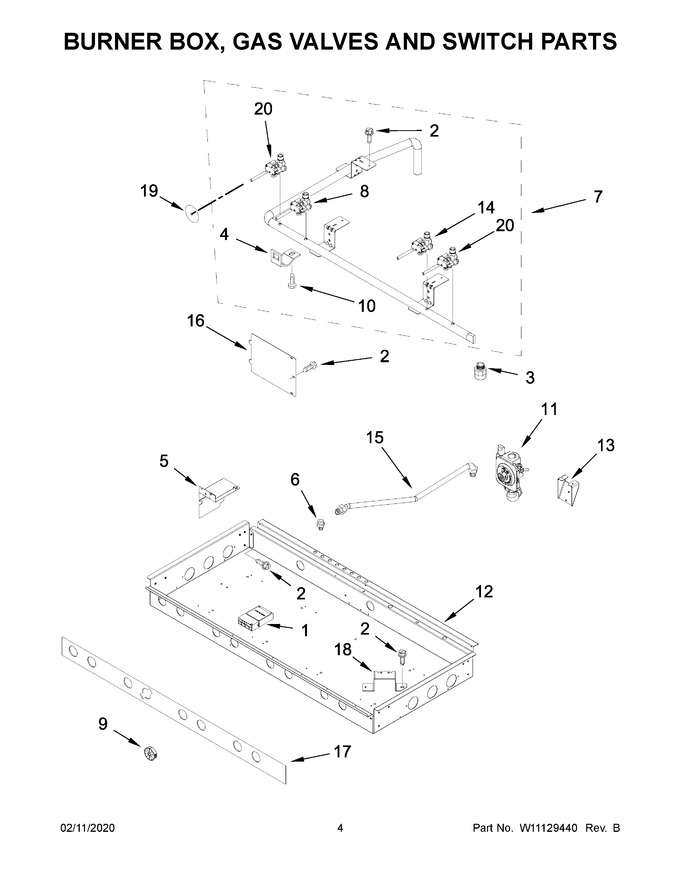

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10475147 | Module, Spark (Replaces: W10475147) |
|
Immediately | $ 346.50 | ||||
| 2 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 3 | 4453115 | Adapter, Female |
|
$ 114.03 | |||||
| 4 | WPW10432260 | Bracket, Valve (Replaces: W10432260) |
|
$ 66.59 | |||||
| 5 | W10498407 | Bracket, Spark Module |
|
$ 71.07 | |||||
| 6 | 4453116 | Adapter, Male |
|
$ 161.49 | |||||
| 7 | W10402607 | Assembly, Manifold |
|
$ 248.51 | |||||
| 8 | WPW10371235 | Valve, Dual (Replaces: W10371235) |
|
Immediately | $ 298.94 | ||||
| 9 | W10189097 | Bushing, Burner Box |
|
$ 7.20 | |||||
| 10 | W10189140 | Screw |
|
$ 6.14 | |||||
| 11 | W11106948 | Regulator, Pressure (Replaces: W10449140) |
|
Immediately | $ 215.01 | ||||
| 12 | W10371516 | Box, Burner |
|
- | |||||
| 13 | W10115850 | Bracket, Pressure Regulator |
|
- | |||||
| 14 | WPW10385583 | Valve, Simmer (Replaces: W10385583) |
|
Immediately | $ 298.89 | ||||
| 15 | W10452066 | Tube, Pressure Regulator |
|
- | |||||
| 16 | W10115843 | Cover, Ignition |
|
- | |||||
| 17 | W11688578 | Insulation, Burner Box (Replaces: W10145622) |
|
- | |||||
| 18 | W10560553 | Bracket, Burner |
|
- | |||||
| 19 | W10189177 | Seal, Switch Cover |
|
$ 9.00 | |||||
| 20 | WPW10385582 | Valve, Single (Replaces: W10385582) |
|
Immediately | $ 306.77 | ||||
| NI | W10276501 | Tube (right Rear) |
|
- | |||||
| NI | W10368166 | Tube (left Front, Low) |
|
$ 48.59 | |||||
| NI | W10368167 | Tube (left Front, High) |
|
$ 157.25 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- | |||||
| NI | W10368335 | Tube (right Front) |
|
Immediately | $ 155.33 | ||||
| NI | WPW10368165 | Tube (left Rear) (Replaces: W10368165) |
|
$ 66.71 |
