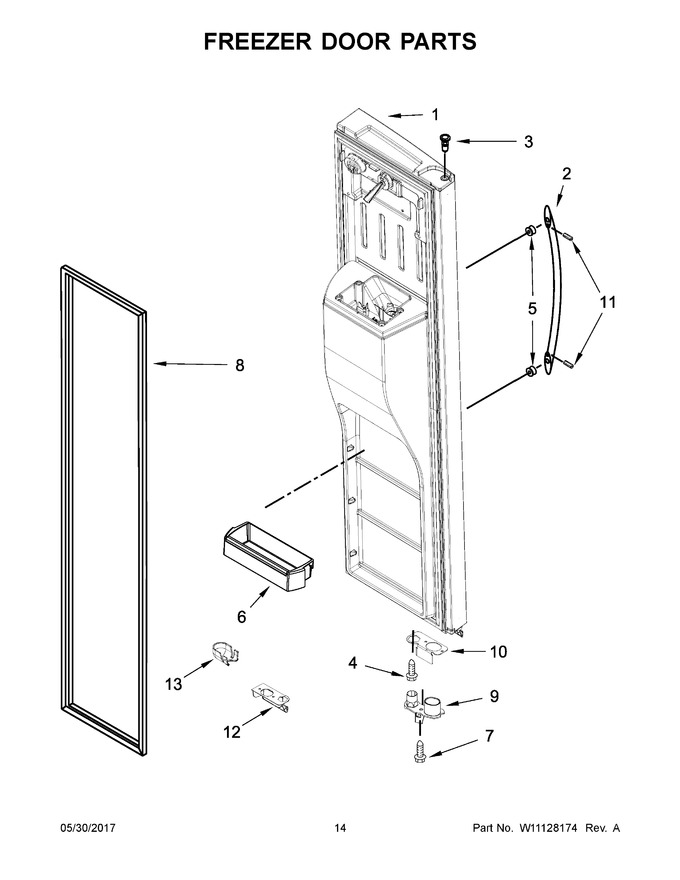

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10859844		Door, Freezer (includes Item 8 And Dispenser Front Parts) (black)		Appelez-nous	-
2	W10805245		Handle (black)   (Replaces: W10713678)				$ 204.75
3	WP2182181		Thimble, Top   (Replaces: 2200086)				$ 7.34
4	WPW10296804		Screw   (Replaces: W10296804)				$ 10.25
5	WPW10661886		Screw   (Replaces: W10460893)			Immediately	$ 11.59
6	WPW10430639		Bin, Door   (Replaces: W10430639)			Immediately	$ 107.51
7	WPW10296816		Screw   (Replaces: W10296816)				$ 7.25
8	WPW10249913		Gasket, Door (black)   (Replaces: W10249913)				$ 288.95
9	W11607100		Closer, Upper Cam Door (black)   (Replaces: W10257204)			Immediately	$ 12.58
10	W11293380		Bracket, Door Stop   (Replaces: W10247907)				$ 62.29
11	W11366418		Set Screw (silver)   (Replaces: W10010140)			Immediately	$ 16.59
12	W10632060		Cover, Door Stop (black)				$ 20.07
13	W10323148		Cover, Wire				$ 38.03
12A	WPW10632062		Cover, Door Stop (grey)   (Replaces: W10632062)				$ 6.80
1A	W10691266		Door, Freezer (includes Item 8 And Dispenser Front Parts) (stainless)		Appelez-nous	-
2A	W10899551		Handle (stainless)   (Replaces: W10678291)			Immediately	$ 169.94
8A	WPW10355585		Gasket, Door (grey)   (Replaces: W10249917)				$ 303.54
9A	WPW10257206		Closer, Upper Cam Door (grey)   (Replaces: W10257206)			Immediately	$ 11.86

    View Diagram in Separate Window       Print Part List
