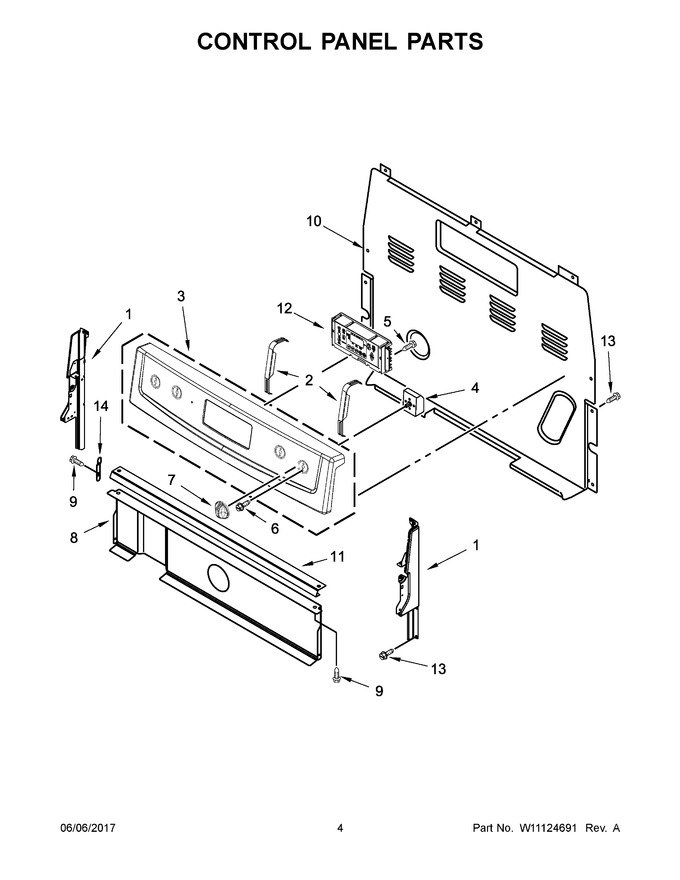

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)			Immediately	$ 138.45
2	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
3	W11231949		Panel, Control (black)   (Replaces: W10833189)		Appelez-nous	-
4	5500-287		Switch, Infinite (green) (right Front And Left Rear)   (Replaces: 3148953)			Immediately	$ 49.03
5	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16
6	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
7	W11210997		Knob, Infinite (black)   (Replaces: W10844801)				$ 71.24
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3196175		Screw   (Replaces: 3196165)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10525121		Bracket, Console Mounting				$ 88.97
12	W10908164		Control (lcc95) (black)   (Replaces: W10837803)				$ 452.69
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	3196200		Clip, Spring				$ 9.41
12A	W10906760		Control (lcc95) (white)   (Replaces: W10837802)				$ 425.07
1A	W11219665		Endcap (black (right))   (Replaces: W10184438)			Immediately	$ 40.65
1B	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 38.21
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 54.75
3A	W11231950		Panel, Control (white)   (Replaces: W10833188)				$ 122.38
3B	W11252171		Panel, Control (stainless)   (Replaces: W10833190)				$ 334.40
4A	5500-287		Switch, Infinite (left Front And Right Rear)   (Replaces: 3148951)			Immediately	$ 49.03
7A	W11188750		Knob, Infinite (white)   (Replaces: W10844800)				$ 19.39
