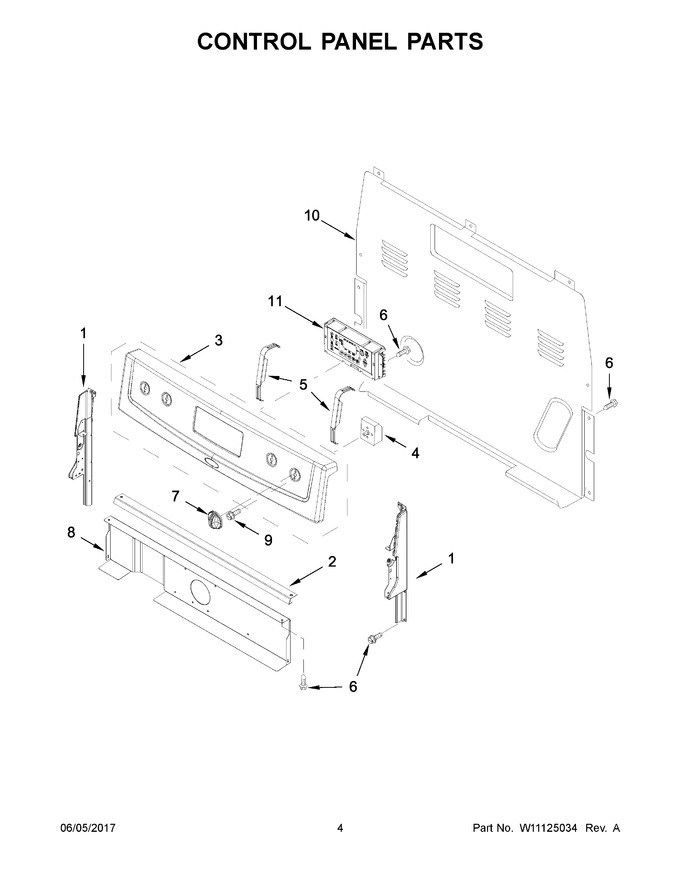

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11219664		Endcap (black (left))   (Replaces: W10184437)			Immediately	$ 138.45
2	W10525121		Bracket, Console Mounting				$ 88.97
3	W11252789		Panel, Console (black)   (Replaces: W10833192)		Appelez-nous	-
4	WP3148952		Switch, Infinite (yellow) (right Front And Left Rear)   (Replaces: 3148952)			Immediately	$ 62.56
5	W11230932		Bracket, Control   (Replaces: W10695491)			Immediately	$ 76.33
6	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
7	W11210997		Knobs (black)   (Replaces: W10844801)				$ 71.24
8	W10134247		Shield, Heat			Immediately	$ 322.94
9	WP3400882		Screw   (Replaces: 3400882)			Immediately	$ 6.80
10	WP8272473		Cover, Upper Rear   (Replaces: 8272473)				$ 197.14
11	W10904904		Control, Lcc180 (black)   (Replaces: W10837801)				$ 452.69
11A	W10904901		Control, Lcc180 (white)   (Replaces: W10837800)				$ 452.69
1A	W11219365		Endcap (white (left))   (Replaces: W10184433)				$ 38.21
1B	W11219665		Endcap (black (right))   (Replaces: W10184438)			Immediately	$ 40.65
1C	W11219370		Endcap (white (right))   (Replaces: W10184434)				$ 54.75
3A	W11252172		Panel, Console (white)   (Replaces: W10833191)				$ 312.34
3B	W11247313		Panel, Console (stainless)   (Replaces: W10833193)			Immediately	$ 326.99
4A	5500-287		Switch, Infinite (green) (left Front And Right Rear)   (Replaces: 3148953)			Immediately	$ 49.03
7A	W11188750		Knobs (white)   (Replaces: W10844800)				$ 19.39
7B	W11409244		Knobs (stainless)   (Replaces: W10844802)			Immediately	$ 66.07
