SELECT A DIAGRAM

01 - Cover Sheet


02 - Cooktop Parts


03 - Chassis Parts


04 - Manifold Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)

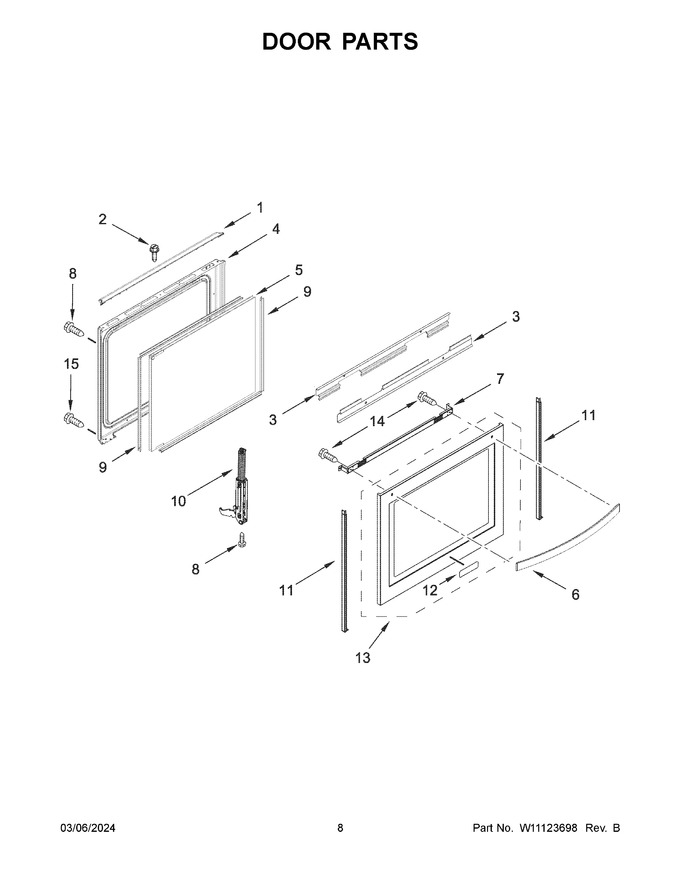

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11182113		Trim, Vent (black)   (Replaces: W10887939)				$ 122.13
2	WPW10132940		Screw   (Replaces: 3196184)				$ 9.11
3	W10813140		Rail, Horizontal Support			Immediately	$ 159.49
4	W10902192		Liner, Door   (Replaces: W10826568)				$ 301.54
5	W11339500		Glass, Inner   (Replaces: W11088591)				$ 154.05
6	W11107877		Handle, Door (stainless)   (Replaces: W10918786)			Immediately	$ 238.28
7	W10541911		Bracket, Glass Upper Handle			Immediately	$ 35.93
8	WPW10031790		Screw   (Replaces: W10031790)			Immediately	$ 7.87
9	W11673273		Spacer, Glass   (Replaces: W10813142)			Immediately	$ 27.94
10	W11162113		Hinge, Door (active)   (Replaces: W10885519)			Immediately	$ 111.53
11	W11744483		Rail, Vertical Support   (Replaces: W10813139)			Immediately	$ 68.57
12	W11178521		Badge   (Replaces: W10884775)			Immediately	$ 56.82
13	W11106273		Glass, Outer (stainless)   (Replaces: W10864214)				$ 465.96
14	WP8533988		Screw   (Replaces: 8533988)			Immediately	$ 7.90
15	W10777162		Screw   (Replaces: W10031780)			Immediately	$ 7.43
13A	W11107401		Glass, Outer (black Stainless)   (Replaces: W10888239)				$ 551.46
6A	W11110500		Handle, Door (black Stainless)   (Replaces: W10918791)				$ 175.97
