View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Cabinet Parts
03 - Liner Parts
04 - Door Parts
05 - Unit Parts
06 - Shelf Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

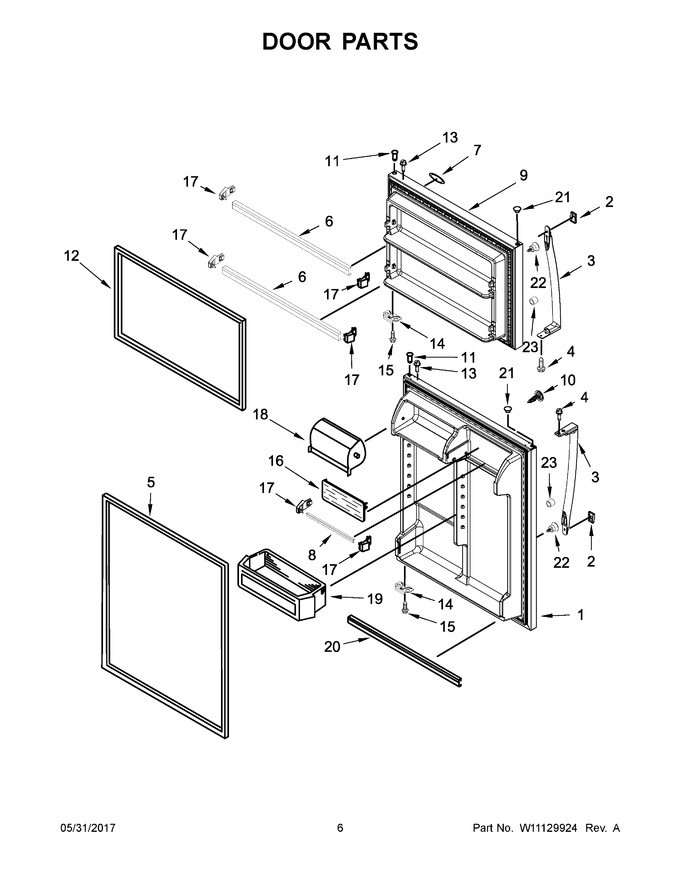

| 1 | LW10916047 | Refrigerator Door (includes Illustration 5) (stainless) (Replaces: W10916047) |
|
- | |||||
| 2 | W11519504 | Handle, Trim (grey) (Replaces: W10864206) |
|
Immediately | $ 45.39 | ||||
| 3 | W10806512 | Handle, Door (stainless) (Replaces: W10653470) |
|
Immediately | $ 224.02 | ||||
| 4 | WP489357 | Screw (Replaces: 489357) |
|
Immediately | $ 6.80 | ||||
| 5 | W10249195 | Door Gasket, Magnetic (grey) (Replaces: W10171475) |
|
$ 302.22 | |||||
| 6 | W11596065 | Trim, Door (Replaces: W10720452) |
|
$ 88.43 | |||||
| 7 | W11178521 | Nameplate (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 8 | W11678258 | Trim, Door (Replaces: W10720455) |
|
$ 79.33 | |||||
| 9 | LW10916048 | Freezer Door (includes Illustration 12) (stainless) (Replaces: W10916048) |
|
- | |||||
| 10 | W10830982 | Hole Plug (grey) (Replaces: W10663739) |
|
Immediately | $ 17.59 | ||||
| 11 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 12 | W10249196 | Door Gasket, Magnetic (grey) (Replaces: W10171479) |
|
Immediately | $ 251.19 | ||||
| 13 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 14 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 15 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 16 | WP2188236 | Door, Flip (Replaces: 2188236) |
|
$ 57.94 | |||||
| 17 | WP2195916K | Cap, Door Trim End (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 18 | W11617783 | Compartment Door (Replaces: W10385897) |
|
$ 68.65 | |||||
| 19 | W10803530 | Bin, Door (Replaces: W10582649) |
|
$ 68.29 | |||||
| 20 | W10859818 | Trim, Shelf (Replaces: W10720448) |
|
- | |||||
| 21 | WP2254517 | Plug, Hinge (grey) (Replaces: 2254517) |
|
Immediately | $ 21.91 | ||||
| 22 | WPW10170540 | Screw (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 23 | WPW10511911 | Bushing, Handle (Replaces: W10511911) |
|
$ 14.50 | |||||
| NI | W10676240 | Door Reversal Kit Stainless Model |
|
$ 101.29 | |||||
| NI | N/P | Following Parts Not Illustrated |
|
- |
