SELECT A DIAGRAM

01 - Cover Sheet

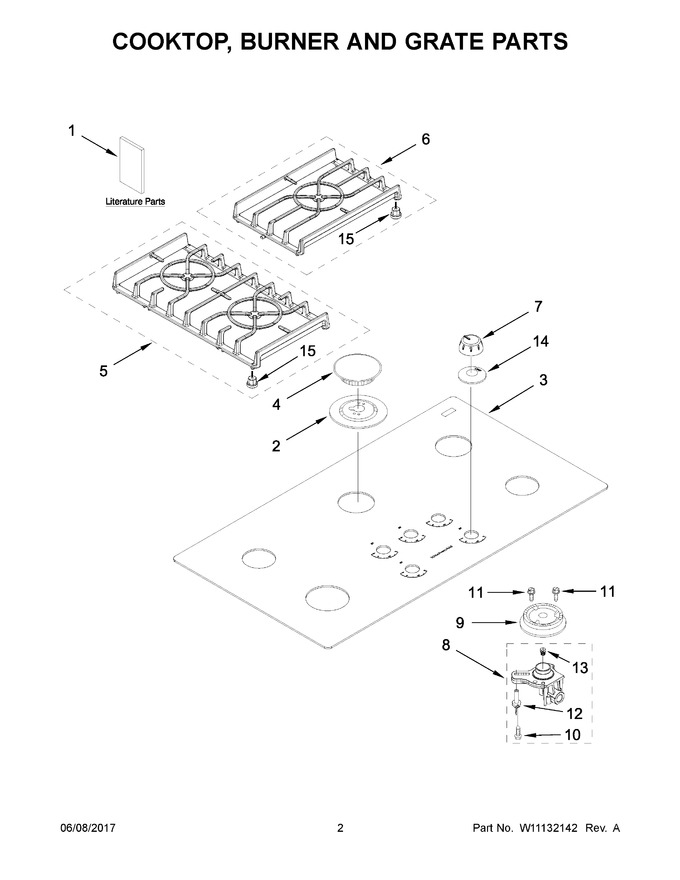

02 - Cooktop, Burner And Grate Parts


03 - Burner Box, Gas Valves And Switches


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11100530		Instructions, Installation		Appelez-nous	-
2	8285779BL		Bezel, Cooktop (black (17k) (left Front))				$ 117.15
3	W10661511		Cooktop   (Replaces: W10491343)		Appelez-nous	-
4	WP8286156CB		Cap, Burner (coal Black (left Front))   (Replaces: 8286156CB)				$ 112.29
5	W11502175		Assembly, Grate (coal Black)   (Replaces: 8285879CB)				$ 228.92
6	W11242859		Assembly, Center Grate   (Replaces: 8285881CB)				$ 232.91
7	WPW10484149		Knob, Control (stainless)   (Replaces: W10484149)				$ 44.81
8	W11134289		Assembly, Orifice Holder (17k) (left Front)   (Replaces: W10779149)				$ 87.08
9	WPW10406878		Head, Burner (17.5k) (left Front)   (Replaces: W10406878)				$ 96.73
10	WP8273062		Screw   (Replaces: 8273062)			Immediately	$ 7.47
11	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
12	W11134295		Electrode (left Front, Left Rear, & Center Rear)   (Replaces: W10779131)				$ 57.56
13	8286474		Orifice (left Front)				$ 85.08
14	W10854242		Grommet, Glass Top (black)   (Replaces: 3180079)			Immediately	$ 7.96
15	8186321		Bumper, Grate (used With Grate Assembly)   (Replaces: 9760219)			Immediately	$ 10.02
12A	W11134296		Electrode (right Front & Right Rear)   (Replaces: W10779132)				$ 57.56
13A	WP3192523		Orifice (center Rear)   (Replaces: 3192523)				$ 84.20
13B	WP3192529		Orifice (left Rear & Right Front)   (Replaces: 3192529)				$ 90.67
13C	W10639157		Orifice (right Rear)		Appelez-nous	-
15A	W10185266		Bumper, Grate (used With Center Grate Assembly)   (Replaces: 8286695)			Immediately	$ 13.92
1A	8304571		Instructions, Undercounter		Appelez-nous	-
1B	W11100534		Guide, Use & Care		Appelez-nous	-
1C	W11100532		Instructions, Lp Conversion		Appelez-nous	-
1D	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1E	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
2A	9753601BL		Bezel, Cooktop (black (6k) (left Rear & Right Front))				$ 28.59
2B	9753602BL		Bezel, Cooktop (black (12k) (center Rear & Right Rear))				$ 62.64
4A	WP8286153CB		Cap, Burner (coal Black (left Rear & Right Front))   (Replaces: 8286153CB)				$ 65.06
4B	WP8286154CB		Cap, Burner (coal Black (center Rear))   (Replaces: 8286154CB)				$ 81.84
4C	WP8286155CB		Cap, Burner Coal Black (right Rear)   (Replaces: 8286155CB)				$ 109.94
8A	W11134291		Assembly, Orifice Holder (6k) (left Rear)   (Replaces: W10779153)		Appelez-nous	-
8B	W11134292		Assembly, Orifice Holder (9.1k) (center Rear)   (Replaces: W10779150)				$ 87.08
8C	W11134293		Assembly, Orifice Holder (6k) (right Front)   (Replaces: W10779152)		Appelez-nous	-
8D	W11134294		Assembly, Orifice Holder (12.5k) (right Rear)   (Replaces: W10779151)		Appelez-nous	-
9A	WPW10406243		Head, Burner (6k) (left Rear & Right Front)   (Replaces: W10406243)			Immediately	$ 35.17
9B	WPW10406283		Burner Head, Semi (9.5k) (center Rear)   (Replaces: W10406283)				$ 70.22
9C	WPW10406797		Head, Burner (12.5k) (right Rear)   (Replaces: W10406797)				$ 83.62
NI	WP3177991		Screw   (Replaces: 3177991)			Immediately	$ 6.80
NI	W10132200		Relief, Strain		Appelez-nous	-
NI	WP8286320		Kit, Spud   (Replaces: 8286320)				$ 121.56
NI	WP8286642		Tape, Foam   (Replaces: 8286642)			Immediately	$ 140.81
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	4456626		Harness, Ignitor 15				$ 69.66
NI	WP4456901		Switch, Harness   (Replaces: 4456901)				$ 227.87
NI	8285402		Wire, Ground Jumper		Appelez-nous	-
NI	W10268394		Harness, Ignitor 28				$ 26.60
NI	W10392007		Cord, Power				$ 101.06

    View Diagram in Separate Window       Print Part List
