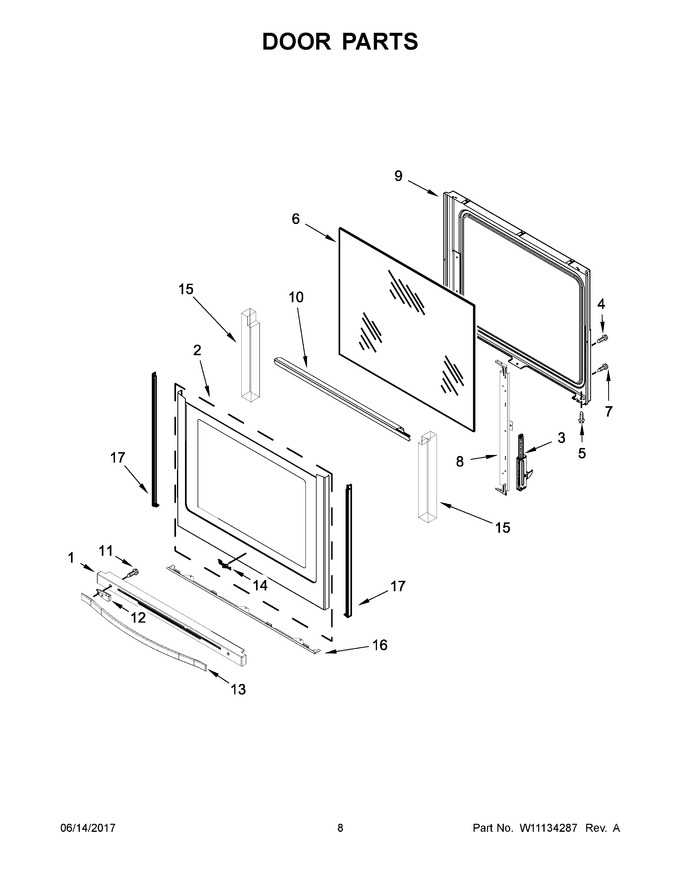

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10294855 | Trim, Door (black) |
|
Immediately | $ 127.84 | ||||
| 2 | WPW10289142 | Assembly, Outer Door (black Ice) (Replaces: W10289142) |
|
$ 302.12 | |||||
| 3 | WPW10440013 | Hinge, Door (active) (Replaces: W10440013) |
|
Immediately | $ 57.42 | ||||
| 4 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 5 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 6 | WPW10300487 | Glass, Inner (Replaces: W10300487) |
|
$ 267.26 | |||||
| 7 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 8 | W11116956 | Rail, Door (Replaces: W10294851) |
|
$ 120.38 | |||||
| 9 | WPW10297318 | Liner, Door (Replaces: W10297318) |
|
Immediately | $ 298.36 | ||||
| 10 | W10294853 | Bracket, Glass Liner |
|
Immediately | $ 213.34 | ||||
| 11 | W11396735 | Screw (Replaces: W10426267) |
|
$ 13.28 | |||||
| 12 | WPW10410341 | Standoff, Handle (black) (Replaces: W10410341) |
|
$ 72.68 | |||||
| 13 | WPW10618239 | Handle, Door (stainless) (Replaces: W10254687) |
|
Immediately | $ 171.80 | ||||
| 14 | W11178521 | Badge (grey) (Replaces: W10481433) |
|
Immediately | $ 56.82 | ||||
| 15 | W11688565 | Insulation, Door (Replaces: W10772958) |
|
$ 24.32 | |||||
| 16 | W10334031 | Trim, Bottom (black Ice & White Ice Models Only) (black) |
|
$ 70.07 | |||||
| 17 | W10334004 | Trim, Side (black Ice & White Ice Models Only) (black) |
|
$ 210.38 | |||||
| 12A | WPW10429492 | Standoff, Handle (white) (Replaces: W10429492) |
|
Immediately | $ 20.77 | ||||
| 14A | W11178521 | Badge (white) (Replaces: W10481434) |
|
Immediately | $ 56.82 | ||||
| 16A | WPW10333990 | Trim, Bottom (black Ice & White Ice Models Only) (white) (Replaces: W10333990) |
|
Immediately | $ 72.20 | ||||
| 17A | W10334003 | Trim, Side (black Ice & White Ice Models Only) (white) |
|
Immediately | $ 80.72 | ||||
| 1A | WPW10335331 | Trim, Door (white) (Replaces: W10335331) |
|
Immediately | $ 112.82 | ||||
| 1B | W11205076 | Trim, Door (stainless) (Replaces: W10842333) |
|
$ 130.81 | |||||
| 2A | WPW10289141 | Assembly, Outer Door (white Ice) (Replaces: W10289141) |
|
$ 327.87 | |||||
| 2B | W10909032 | Assembly, Outer Door (stainless (includes Skin And Badge)) (Replaces: W10844776) |
|
$ 340.13 |
