SELECT A DIAGRAM

01 - Cover Sheet

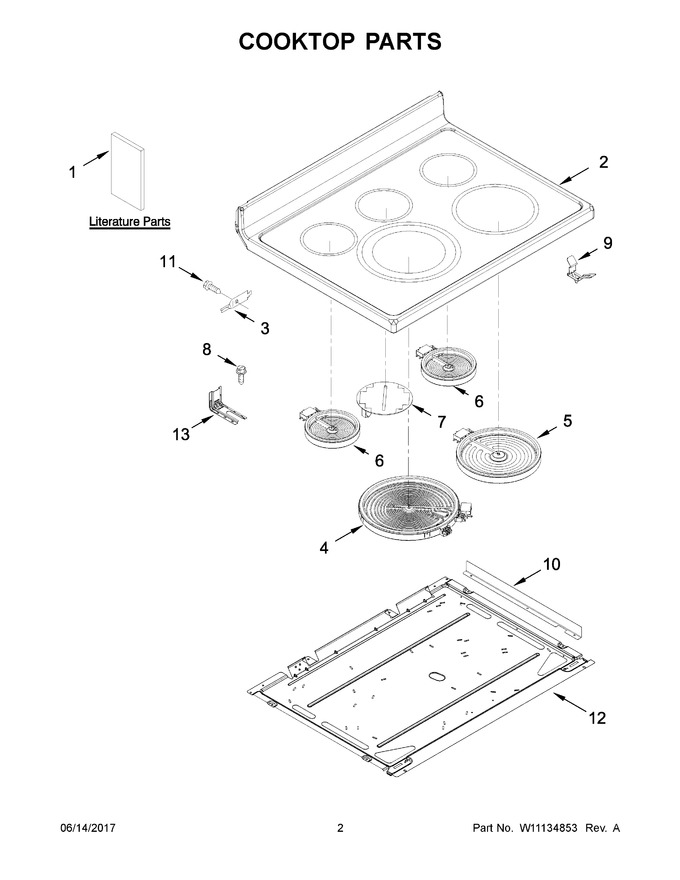

02 - Cooktop Parts


03 - Control Panel Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer Parts


07 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10694015		User, Instructions		Appelez-nous	-
2	W10798166		Cooktop (stainless)   (Replaces: W10697353)				$ 646.96
3	WP3195060		Hinge, Cooktop   (Replaces: 3195060)			Immediately	$ 11.86
4	WPW10298145		Element (4500w) (left Front)   (Replaces: W10298145)			Immediately	$ 311.63
5	WPW10251108		Element (3200w) (right Front)   (Replaces: W10251108)			Immediately	$ 307.76
6	W11171119		Element (1200w) (right Rear And Left Rear)   (Replaces: 8273994)			Immediately	$ 203.06
7	W11041453		Element, Warm Zone (center)   (Replaces: W10799048)				$ 119.66
8	WP7101P485-60		Screw, Anti-tip Kit   (Replaces: 7101P485-60)				$ 27.65
9	WPW10225448		Spring, Element   (Replaces: W10225448)			Immediately	$ 9.36
10	W10348913		Bracket, L-bridge		Appelez-nous	-
11	3196172		Screw			Immediately	$ 12.12
12	W11728329		Pan, Radiant Element   (Replaces: W10691223)			Immediately	$ 129.14
13	W11839019		Bracket, Anti-tip   (Replaces: W10306542)			Immediately	$ 25.69
1A	W10400064		Guide, Quick Start (english)		Appelez-nous	-
1B	W10400065		Guide, Quick Start (french)		Appelez-nous	-
1C	W10694022		Tech, Sheet		Appelez-nous	-
1D	W10694024		Install, Instructions		Appelez-nous	-
1E	9762761		Tips, Safe Cooking (english)		Appelez-nous	-
1F	W10065852		Tips, Safe Cooking (french)		Appelez-nous	-
NI	N/P		Following Parts Not Illustrated		Appelez-nous	-
NI	W10349692		Harness, Wire (cooktop Right)				$ 64.80
NI	W10349693		Harness, Wire (cooktop Left)				$ 80.41
NI	W10629309		Harness, Main			Immediately	$ 209.54
NI	W10349733		Harness, Sensor				$ 122.10
NI	W11134592		Harness, Warm Zone   (Replaces: W10174460)				$ 105.53
NI	3400964		Clip, Wire   (Replaces: 3196520)				$ 80.10
NI	W10324946		Harness, Wire (drawer)				$ 26.13

    View Diagram in Separate Window       Print Part List
