01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:

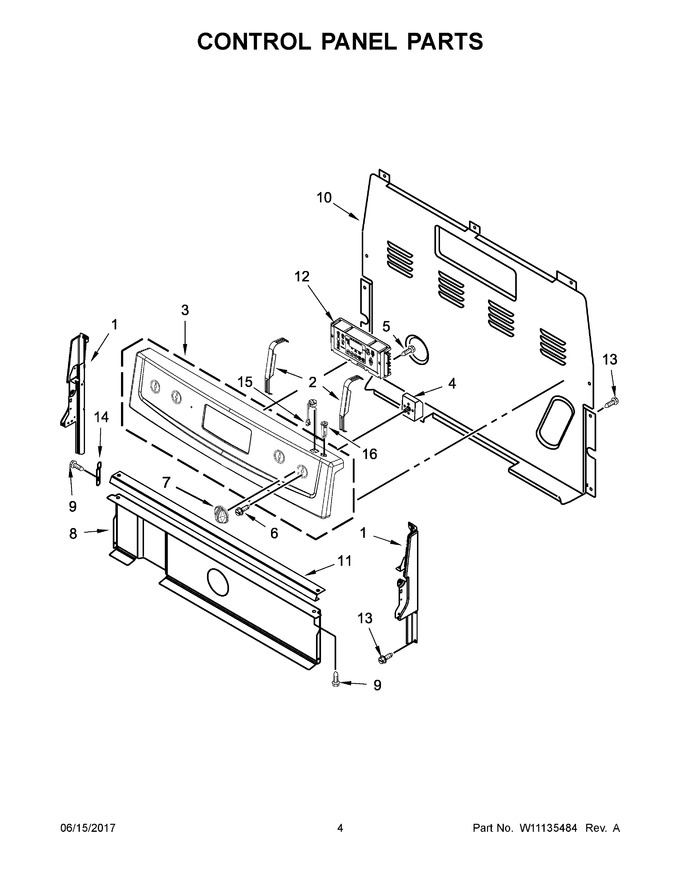

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
$ 138.45 | |||||
| 2 | W11230932 | Bracket, Control (Replaces: W10695491) |
|
Immediately | $ 76.33 | ||||
| 3 | W10909969 | Panel, Control (black) (Replaces: W10859280) |
|
$ 470.36 | |||||
| 4 | 5500-287 | Switch, Infinite (green) (right Front And Left Rear) (Replaces: 3148953) |
|
Immediately | $ 49.03 | ||||
| 5 | WP3196557 | Screw (Replaces: 3196169) |
|
Immediately | $ 7.16 | ||||
| 6 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 7 | W11188750 | Knob, Infinite (white) (Replaces: W10844800) |
|
$ 19.39 | |||||
| 8 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 9 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 12 | W10908164 | Control (lcc95) (black) (Replaces: W10837803) |
|
$ 452.69 | |||||
| 13 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 14 | 3196200 | Clip, Spring |
|
$ 9.41 | |||||
| 15 | W10861164 | Receptacle, Fused (black) (Replaces: W10749729) |
|
Immediately | $ 16.62 | ||||
| 16 | WP9757602 | Breaker, Circuit (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 12A | W10906760 | Control (lcc95) (white) (Replaces: W10837802) |
|
$ 425.07 | |||||
| 15A | W10849725 | Receptacle, Fused (white) (Replaces: W10749727) |
|
Immediately | $ 100.00 | ||||
| 16A | WP9757601 | Breaker, Circuit (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 1A | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
$ 40.65 | |||||
| 1B | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 1C | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 3A | W11245125 | Panel, Control (white) (Replaces: W10859279) |
|
$ 310.76 | |||||
| 4A | 5500-287 | Switch, Infinite (left Front And Right Rear) (Replaces: 3148951) |
|
Immediately | $ 49.03 | ||||
| 7A | W11409244 | Knob, Infinite (stainless) (Replaces: W10844802) |
|
Immediately | $ 66.07 |
