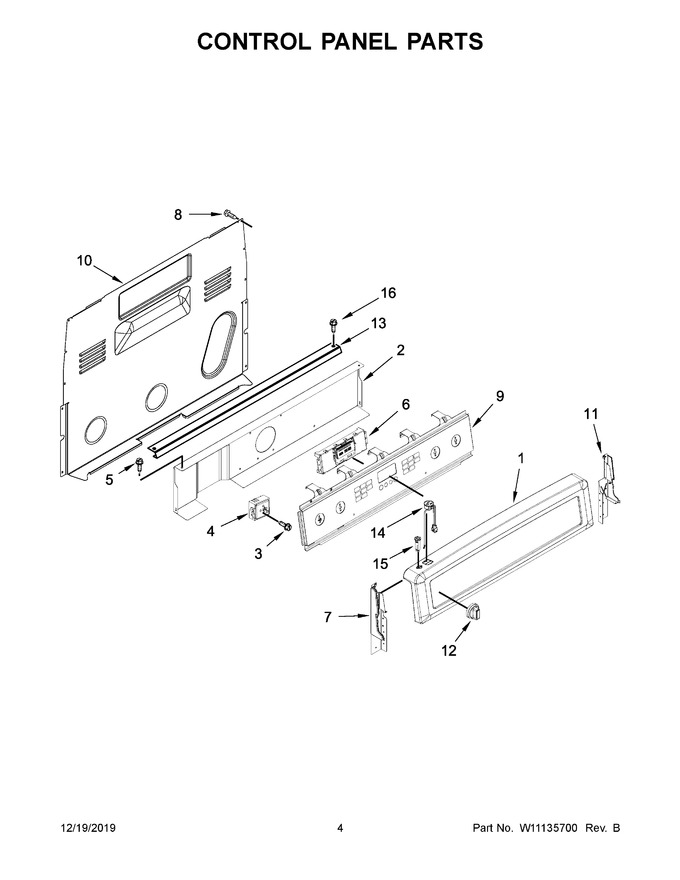

03 - Control Panel Parts
04 - Chassis Parts
05 - Door Parts
06 - Drawer Parts
07 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10645849 | Console (black) |
|
$ 310.60 | |||||
| 2 | W10134247 | Shield, Heat |
|
Immediately | $ 322.94 | ||||
| 3 | WP3400882 | Screw (Replaces: 3400882) |
|
Immediately | $ 6.80 | ||||
| 4 | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 4 | W10917724 | Switch, Infinite (right Rear And Left Rear) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 5 | W11233072 | Screw (Replaces: W10362924) |
|
Immediately | $ 13.25 | ||||
| 6 | WPW10340323 | Control (mrc) (Replaces: W10340323) |
|
Immediately | $ 418.58 | ||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W11130372) |
|
Immediately | $ 138.45 | ||||
| 7 | W11219664 | Endcap (black (left)) (Replaces: W10184437) |
|
Immediately | $ 138.45 | ||||
| 8 | W11245710 | Screw (Replaces: 9780274) |
|
Immediately | $ 13.28 | ||||
| 9 | W10884363 | Overlay, Active (black) |
|
$ 379.66 | |||||
| 10 | WP8272473 | Cover, Upper Rear (Replaces: 8272473) |
|
$ 197.14 | |||||
| 11 | W11219665 | Endcap (black (right)) (Replaces: W10184438) |
|
Immediately | $ 40.65 | ||||
| 11 | W11219665 | Endcap (black (right)) (Replaces: W11130379) |
|
Immediately | $ 40.65 | ||||
| 12 | W11039089 | Knob (black) (Replaces: W10892256) |
|
Immediately | $ 58.56 | ||||
| 13 | W10525121 | Bracket, Console Mounting |
|
$ 88.97 | |||||
| 14 | W10861164 | Receptacle (black) (Replaces: W10749729) |
|
Immediately | $ 16.62 | ||||
| 15 | WP9757602 | Circuit Breaker (black) (Replaces: 9757602) |
|
Immediately | $ 54.82 | ||||
| 16 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 11A | W11219370 | Endcap (white (right)) (Replaces: W10184434) |
|
$ 54.75 | |||||
| 11A | W11219370 | Endcap (white (right)) (Replaces: W11130378) |
|
$ 54.75 | |||||
| 12A | W11039092 | Knob (white) (Replaces: W10892254) |
|
Immediately | $ 58.39 | ||||
| 14A | W10849725 | Receptacle (white) (Replaces: W10749727) |
|
Immediately | $ 100.00 | ||||
| 15A | WP9757601 | Circuit Breaker (white) (Replaces: 9757601) |
|
Immediately | $ 59.00 | ||||
| 1A | W10645850 | Console (white) |
|
$ 270.84 | |||||
| 4A | W10857622 | Switch, Infinite (left Front) (Replaces: W10437092) |
|
Immediately | $ 215.89 | ||||
| 4A | W10911303 | Switch, Infinite (left Rear And Right Rear) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 4B | W10917724 | Switch, Infinite (right Front) (Replaces: W10437094) |
|
Immediately | $ 116.42 | ||||
| 4B | W10911303 | Switch, Infinite (right Front) (Replaces: W10578768) |
|
Immediately | $ 103.74 | ||||
| 7A | W11219365 | Endcap (white (left)) (Replaces: W11130371) |
|
$ 38.21 | |||||
| 7A | W11219365 | Endcap (white (left)) (Replaces: W10184433) |
|
$ 38.21 | |||||
| 9A | W10887356 | Overlay, Active (white) |
|
$ 286.30 |
