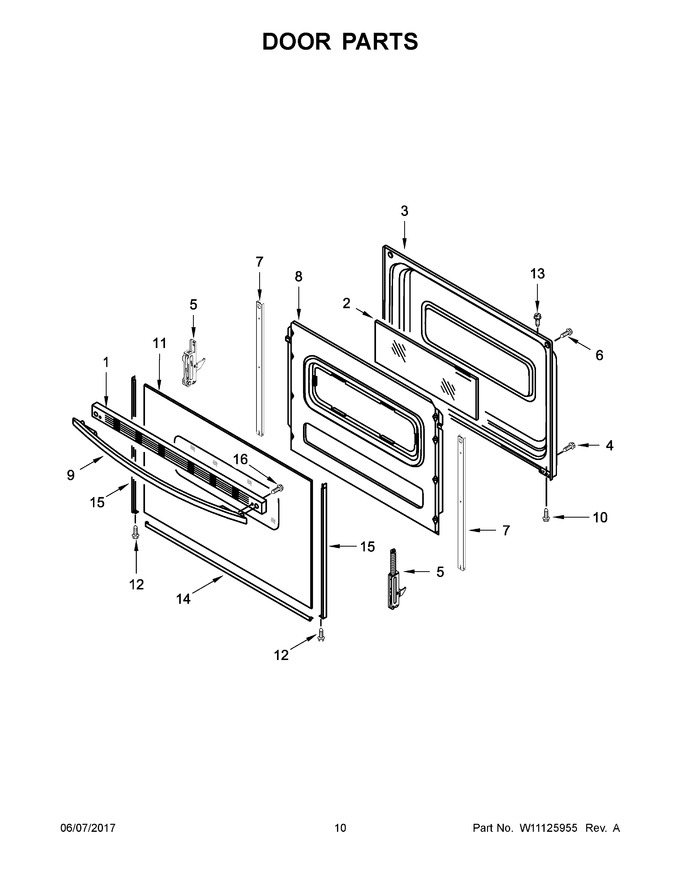

01 - Cover Sheet
02 - Cooktop Parts
03 - Control Panel Parts
04 - Chassis Parts
05 - Drawer And Broiler Parts
06 - Door Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10817433 | Grille, Vent (white) (Replaces: W10310920) |
|
Immediately | $ 162.27 | ||||
| 2 | WP9758163 | Glass, Inner (Replaces: 9758163) |
|
$ 145.91 | |||||
| 3 | 9761340 | Liner, Door |
|
$ 325.01 | |||||
| 4 | W10777162 | Screw (Replaces: W10031780) |
|
Immediately | $ 7.43 | ||||
| 5 | WPW10299225 | Hinge, Active (Replaces: W10299225) |
|
Immediately | $ 90.51 | ||||
| 6 | WPW10200660 | Screw (Replaces: W10200660) |
|
Immediately | $ 7.42 | ||||
| 7 | W11502236 | Strap, Door (Replaces: W10544179) |
|
Immediately | $ 24.91 | ||||
| 8 | 9761500 | Retainer, Insulation |
|
$ 293.06 | |||||
| 9 | W10300489 | Handle, Door (white) |
|
Immediately | $ 220.39 | ||||
| 10 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 11 | WPW10467150 | Glass, Outer (Replaces: W10467150) |
|
$ 183.58 | |||||
| 12 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.80 | ||||
| 13 | WPW10031790 | Screw (Replaces: W10031790) |
|
Immediately | $ 7.87 | ||||
| 14 | W11594186 | Trim, Bottom (white) (Replaces: 8523175) |
|
Immediately | $ 55.23 | ||||
| 15 | WP8523166 | Trim, Door Side (white (right)) (Replaces: 8523166) |
|
Immediately | $ 75.81 | ||||
| 16 | WPW10465148 | Screw (Replaces: W10465148) |
|
Immediately | $ 7.91 | ||||
| 15A | WP8523172 | Trim, Door Side (white (left)) (Replaces: 8523172) |
|
Immediately | $ 62.94 | ||||
| 5A | WPW10299227 | Hinge, Door (passive) (Replaces: W10299227) |
|
Immediately | $ 63.67 |
