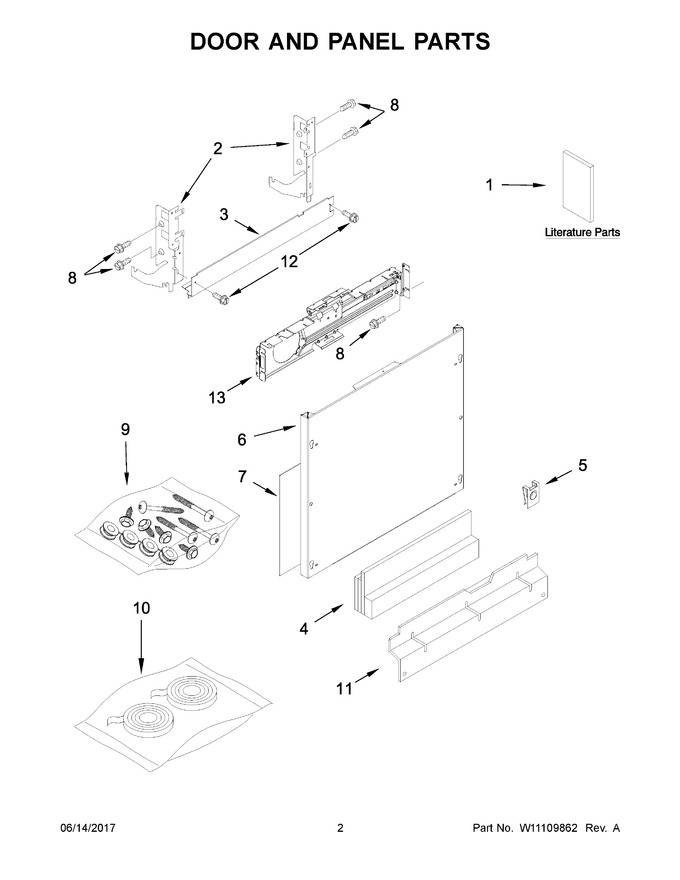

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10806906		Installation Instructions		Appelez-nous	-
2	W11806565		Arm, Hinge (left Hand)   (Replaces: 8534854)			Immediately	$ 128.15
3	W10850371		Barrier, Vapor   (Replaces: W10844384)			Immediately	$ 29.59
4	W11223838		Insulation, Four Layer   (Replaces: W10735304)			Immediately	$ 39.52
5	W10910629		U-nut   (Replaces: W10853886)				$ 7.78
6	W11113792		Panel Front (ready)   (Replaces: W10738109)			Immediately	$ 336.08
7	W10234565		Insulation, Front Panel				$ 62.61
8	WP3400071		Screw   (Replaces: 3400071)			Immediately	$ 7.43
9	WPW10637074		Hardware, Custom Panel   (Replaces: W10195008)			Immediately	$ 67.55
10	WPW10366978		Seal, Panel Ready   (Replaces: W10366978)			Immediately	$ 26.82
11	W11763736		Access Panel (black)   (Replaces: W10852733)			Immediately	$ 38.03
12	WP489069		Screw   (Replaces: 304392)			Immediately	$ 7.56
13	W11116870		Bracket, Control   (Replaces: W10641745)				$ 80.96
1A	W10921032		Energy Guide		Appelez-nous	-
1B	W10762967		Use & Care Guide		Appelez-nous	-
1C	W10920270		Tech Sheet		Appelez-nous	-
1D	W10195005		Template, 6" Custom Panel		Appelez-nous	-
2A	W11806608		Arm, Hinge (right Hand)   (Replaces: 8534853)			Immediately	$ 128.02

    View Diagram in Separate Window       Print Part List
